OM-1754

2-24

2.4.5 "Component Library" Window

"Carrier Data" Tab sheet FB22

Carrier Data

This is a tab sheet which corresponds to all component shapes - "Cylindrical",

"Square", "Deform", "IC (Simple)", "IC (Complex)", "Connector (Simple)",

"Connector (Complex)", "Other Leaded (Simple)", "Other Leaded (Complex)",

and "BGA/CSP".

Reference

Refer to "1.5 Carrier Data" in "Chapter 2" of the instruction manual "Volume 6 :

Component Library" for details of each data.

Set "Tray" in the "Type" text box of the label "Carrier data" and enter parameters

in the other text boxes of the label "Carrier data" and in the text boxes of the label

"Tray data".

1303-001

2.4 "Prod.Dt" Submenu

OM-1754

2-25

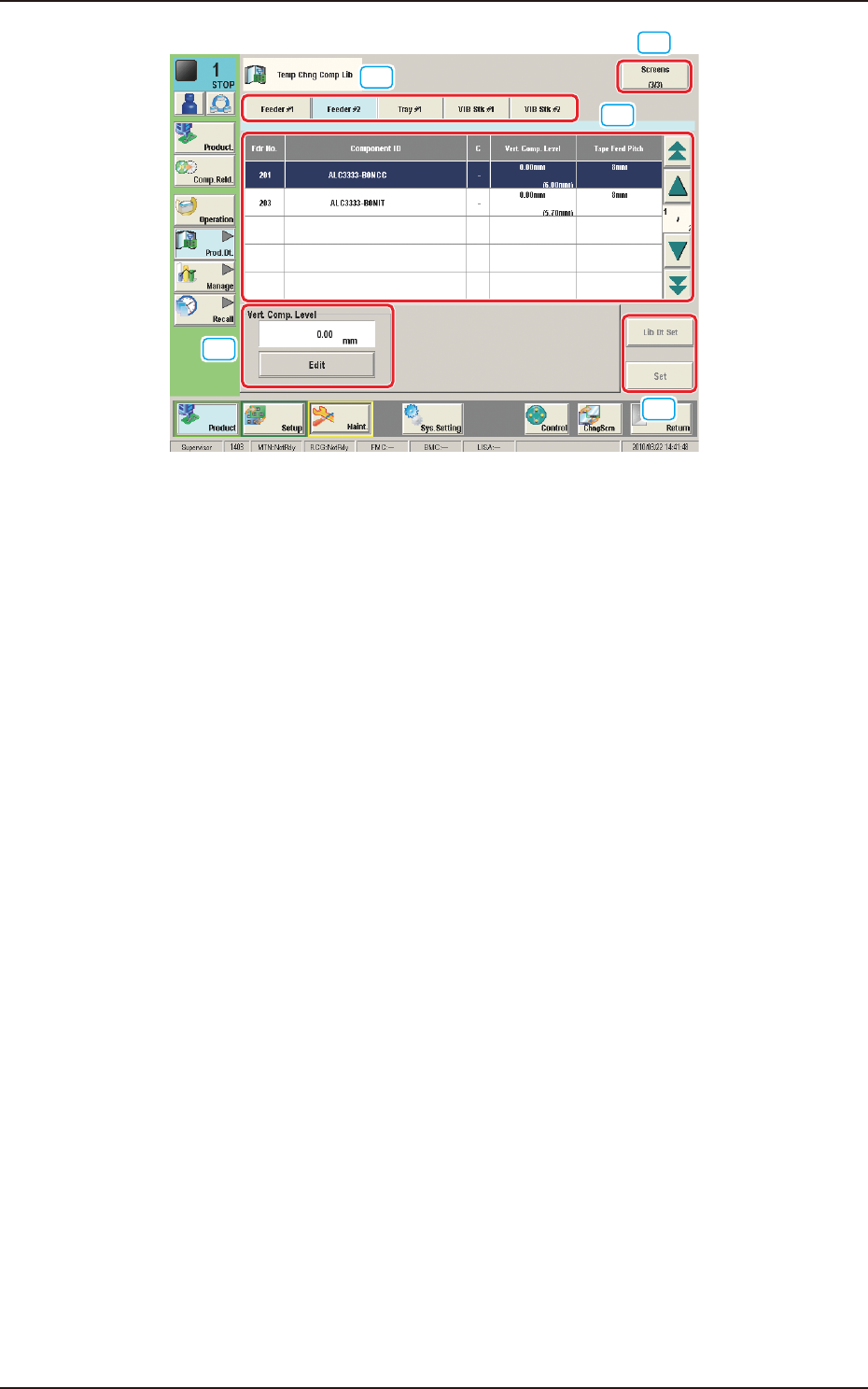

2.4.6 "Temp Chng Comp Lib" Window

This window enables the operator to check and change the component carriage

data for the production model.

[1]

[2]

[3]

[4]

"Comp Crg Dt Edit" window (1/3) FB23

[1]

[2]

[4]

[3]

[4]

"Comp Crg Dt Edit" window (2/3) FB24

1303-001

2.4 "Prod.Dt" Submenu

OM-1754

2-26

[1]

[2]

[3]

[4]

"Comp Crg Dt Edit" window (3/3) FB25

[1] Unit Selection Buttons

These buttons can be used to specify the feeder base whose carrier data

should be conrmed or changed.

[2] Information Display

Displayed is the component carriage data of the feeder base (the multilayer

tray feeder) selected in [1].

[3] Mode Buttons

These buttons are used to change the direction of component feed, the auto

feeder axis adjustment X and Y, the pickup level, and the placement level.

[4] [Screens], [Lib Dt Set], and [Set] Buttons

[Screens] Button

: This button can be used to open another page.

[Lid Dt Set] Button

: When pressed, this button resets the selected

component data to the defaults registered in the

component library.

[Set] Button

: When pressed, this button sets the changed

contents.
