OM-1754 1-12 Reel Holder Slot Section T raverse Section Cutter Unit Traverse Cart FA2 Magazine (GS-MG100) FA3 Pallet (GS-MP100) Tray Fixing Magnet (GS-MF100) Pallet and Tray Fixing Magnet FA4 1303-001 3. Name of Each Sec…
OM-1754
1-11
3. Name of Each Section and Handling
This feeder is constructed of an elevator unit, magazines, cutter unit, pallets a
traverse cart, and tray xing magnets.
WARNING
There are strong motorized and high-voltage areas
inside the machine. Special caution should be paid
not to touch them.
Doing otherwise will cause personal injury (serious
accident).
Only qualied maintenance personnel should
detach the safety covers.
The machine should be operated with the covers
being attached.
If a safety cover is detached, be sure to reattach
it.
Be sure to close the magazine door before
operating the machine.
Do not disengage the interlock of the magazine
door.
Magazine #2 Ready
Ready Switch
Pallet Change Position
Ready Switch
Magazine #1 Ready
Ready Switch
Magazine #2 Supply Position
Upper Magazine
Change Position
Magazine #1 Supply Position
Lower Magazine
Change Position
Magazine Change Position
Magazine #2 Door
Pallet Change
Position Door
Handle
Magazine #1 Door
Safety Cover

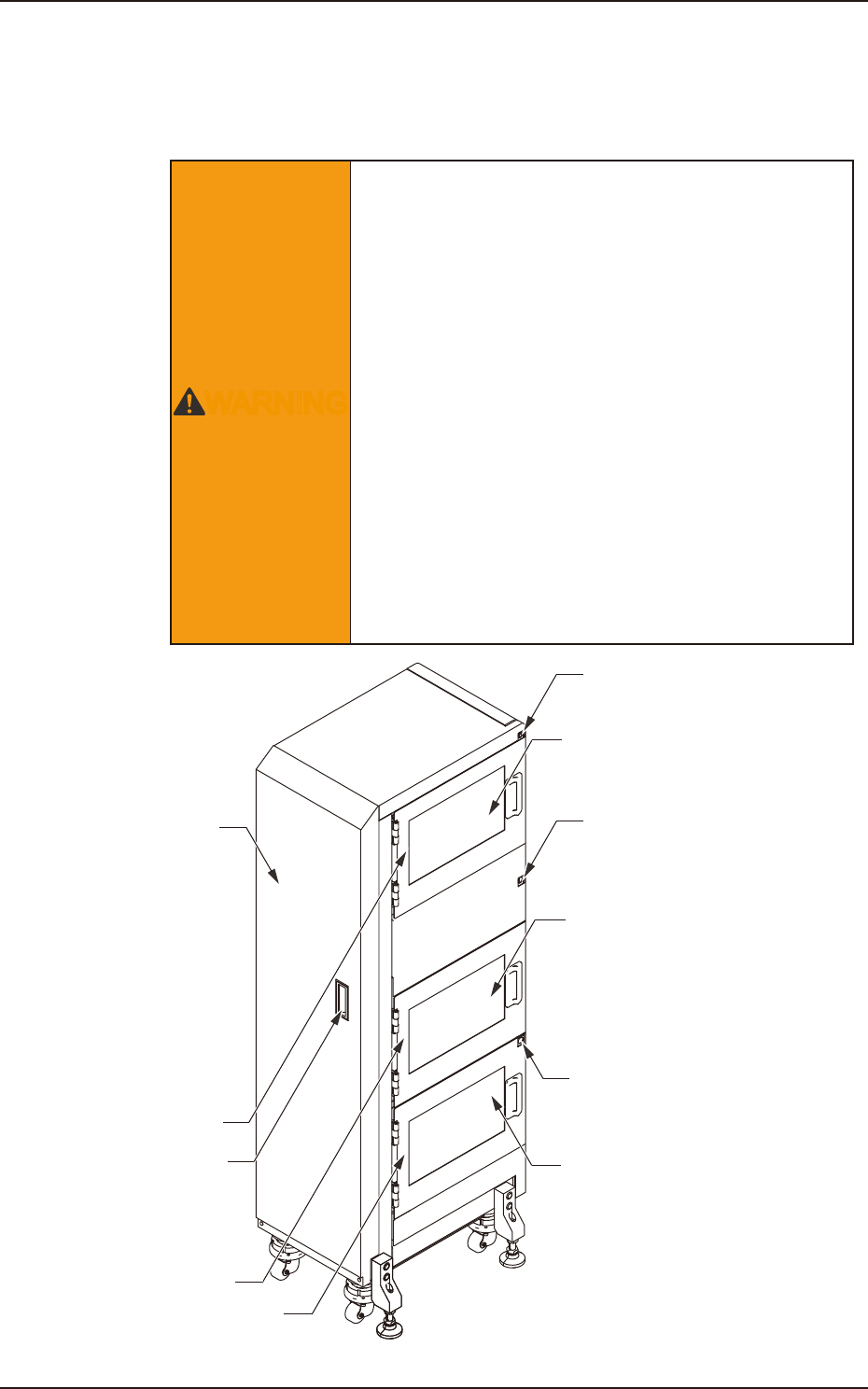

Elevator Unit (Front Side of Machine) FA1
1303-001
3. Name of Each Section and Handling
OM-1754
1-12

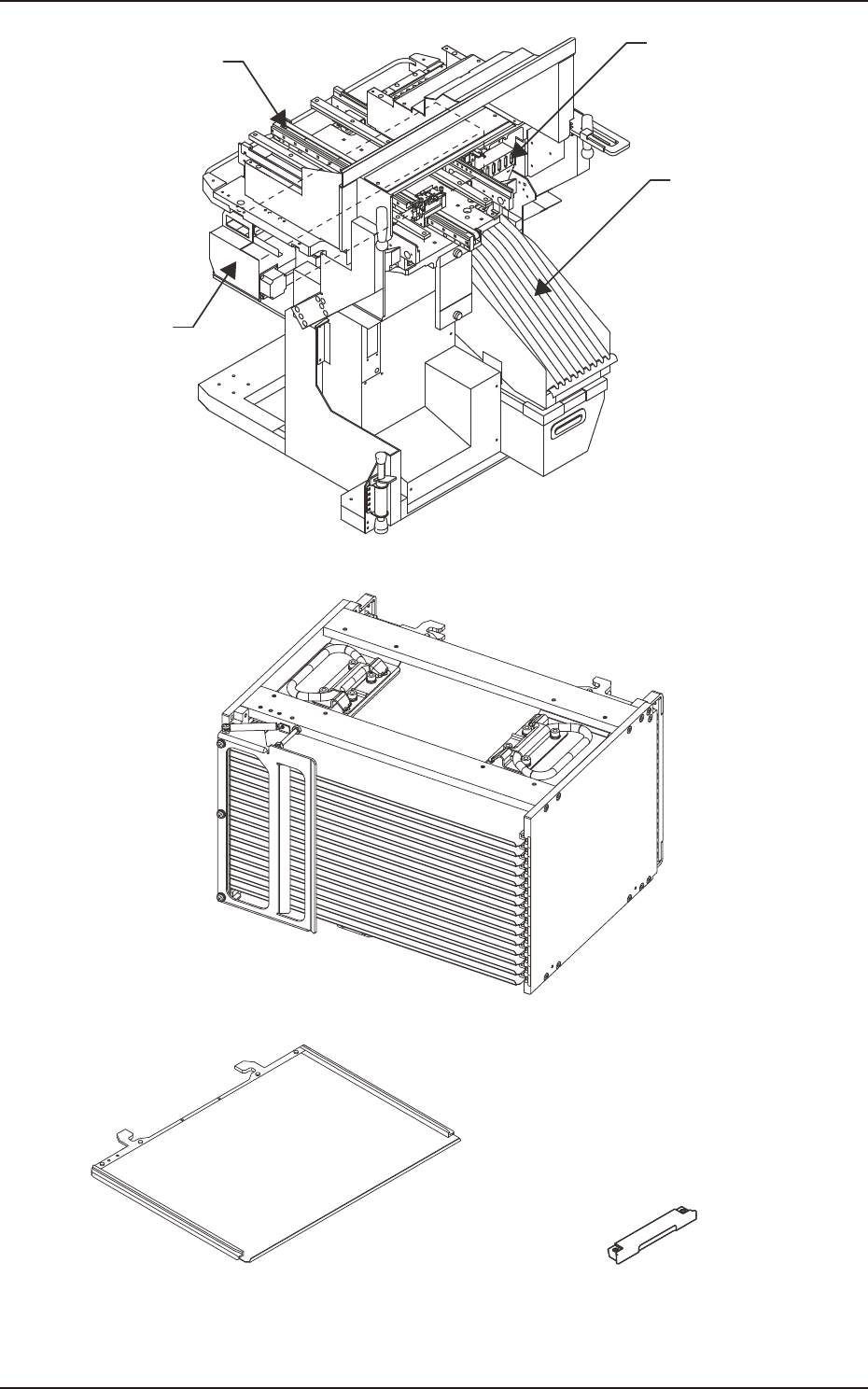

Reel Holder
Slot Section
Traverse Section
Cutter Unit
Traverse Cart FA2
Magazine (GS-MG100) FA3
Pallet (GS-MP100)
Tray Fixing Magnet
(GS-MF100)
Pallet and Tray Fixing Magnet FA4
1303-001
3. Name of Each Section and Handling
OM-1754
1-13

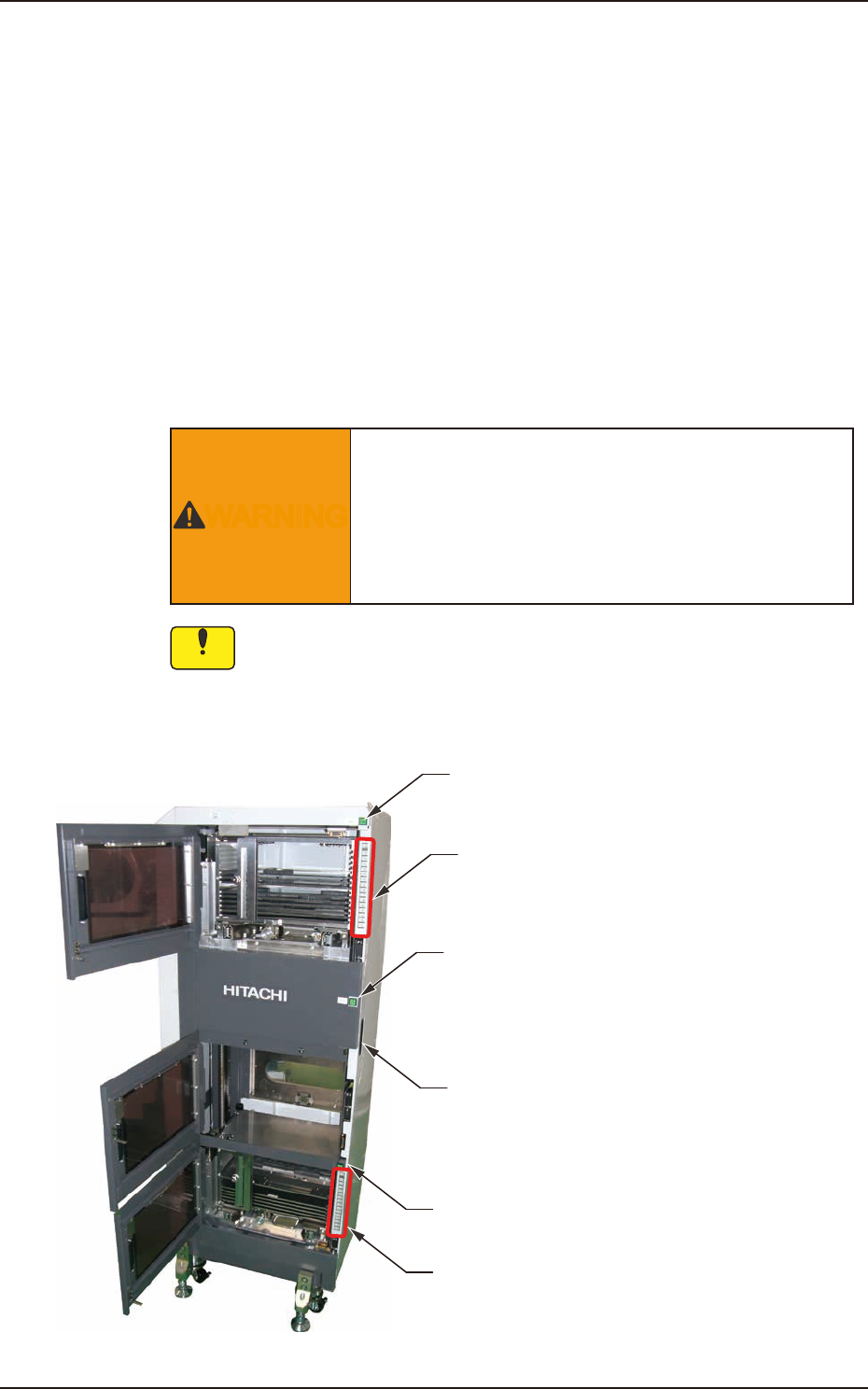

3.1 Elevator Unit
The elevator is provided with a mechanism that moves the magazines up and
down.
The elevator can be loaded with two magazines in which the pallets are stored.
Each magazine is driven up and down separately.
The trays on the pallets in each magazine can be replenished with components or
the trays on each pallet can be reloaded with components at the specied position.
The magazines can manually be attached to or detached from the elevator.
The magazine loaded on the elevator is clamped with a spring force and positioned
in place.
Also, the elevator unit can be attached to any traverse cart.
WARNING
When the elevator unit is to be moved, pay
attention the inclination of the oor and difference
in level. If the oor is inclined 10/1000 mm or more,
the elevator might fall down, which might cause a
serious accident.
Notice
(a) Do not move the elevator unit with the tray components setup. Doing
so might scatter the tray components around.
(b) When the elevator unit is to be moved, hold the handle attached to
the cover side surface to move it.
[2] Upper [ALL CHANGE] Button and
Step No. Buttons ([1] through [15])
[2] Lower [ALL CHANGE] Button and
Step No. Buttons ([1] through [15])
[1] Magazine #2 Ready
Ready Switch
Handle
[1] Pallet Change Position Ready
Ready Switch
[1] Magazine #1 Ready
Ready Switch
FA5
1303-001
3.1 Elevator Unit
