3. Product Change Menu
3.1 Outline of Product Change Menu
The following shows the hierarchical structure of the menus (including the
submenus and windows) for the Product Change Menu.
Note
The shadowed (gray) items are related to the multi-layer tray feeder.
"Setup" Window
"PP CHANGE" Window
"SPRT-PINS" Window
"PCB XFER" Window
"NOZ.CHG." Window
"Fdr Pick-up Tch" Window
"XY Beam Test" Window
"COMP RCG" Window
"PEC RCG" Window
"Tray Matrix Tch" Window
"Tray PU Pos Tch" Window
"PU Pos Ofst Tch" Window
"Test & Tch" Submenu
3.2.3
3.2.1
3.2
3.2.2
Reference Item Nos
Outline of Product Change Menu FB26
3. Product Change Menu
OM-1754
2-28

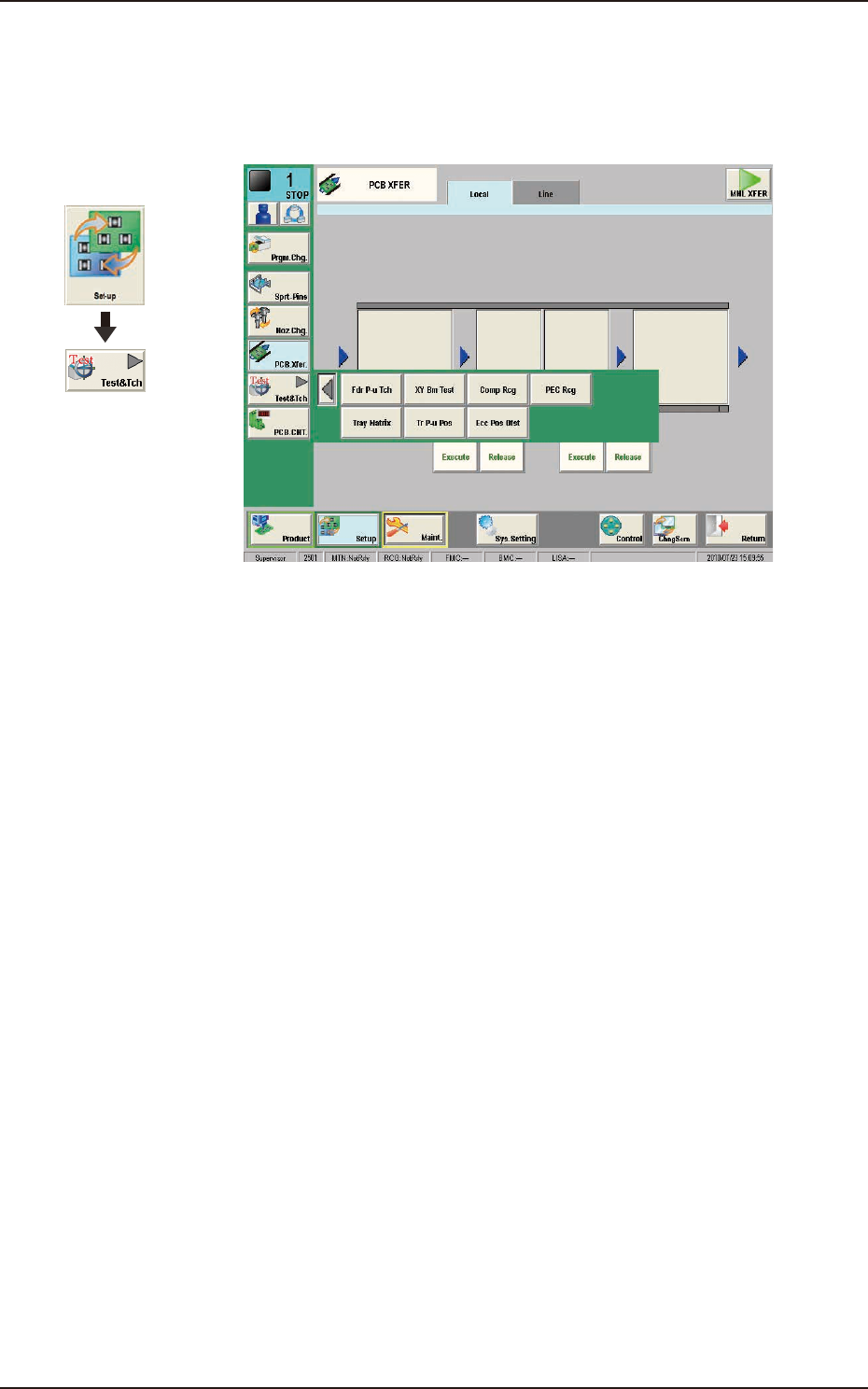

3.2 "Test & Tch" Submenu
The test and teaching for the tray matrix, tray pick-up position and pick-up
position offset are performed in this window.
TEST & TCH FB27
1303-001
Graphic
Development
3.2 "Test & Tch" Submenu
OM-1754
2-29

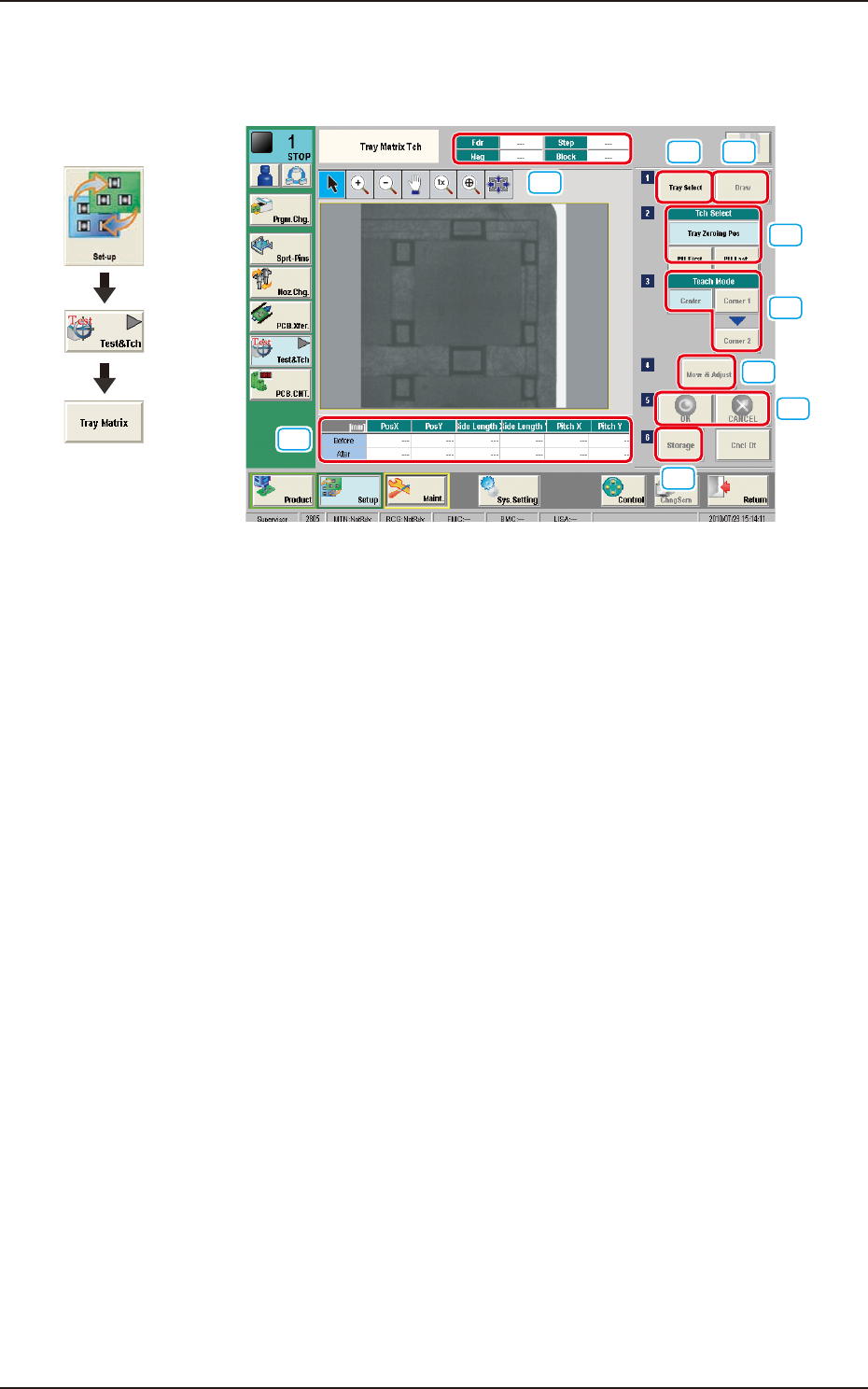

3.2.1 "Tray Matrix Tch" Window
The tray matrix teaching operation is performed in this window.
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[9]
[8]
[2]
"Tray Matrix Tch" window FB28
[1] [Tray Select] Button
The tray to be taught is selected in this data box.
[2] Feeder No. Tray Set Display
The Feeder No., where the components are picked up, magazine, setup and
blocks are displayed in this pane.
[3] Tch Select
[Tray Zeroing Pos] Button
When this button is pressed, a teaching operation is performed to specify the
component data offsets X and Y.
[PU First], [PU Last] Button
Side Lengths X and Y and Pitches X and Y are determined according to the
taught rst and last takeout positions.
1303-001
Graphic
Development
