2-8

2.1.2.2.

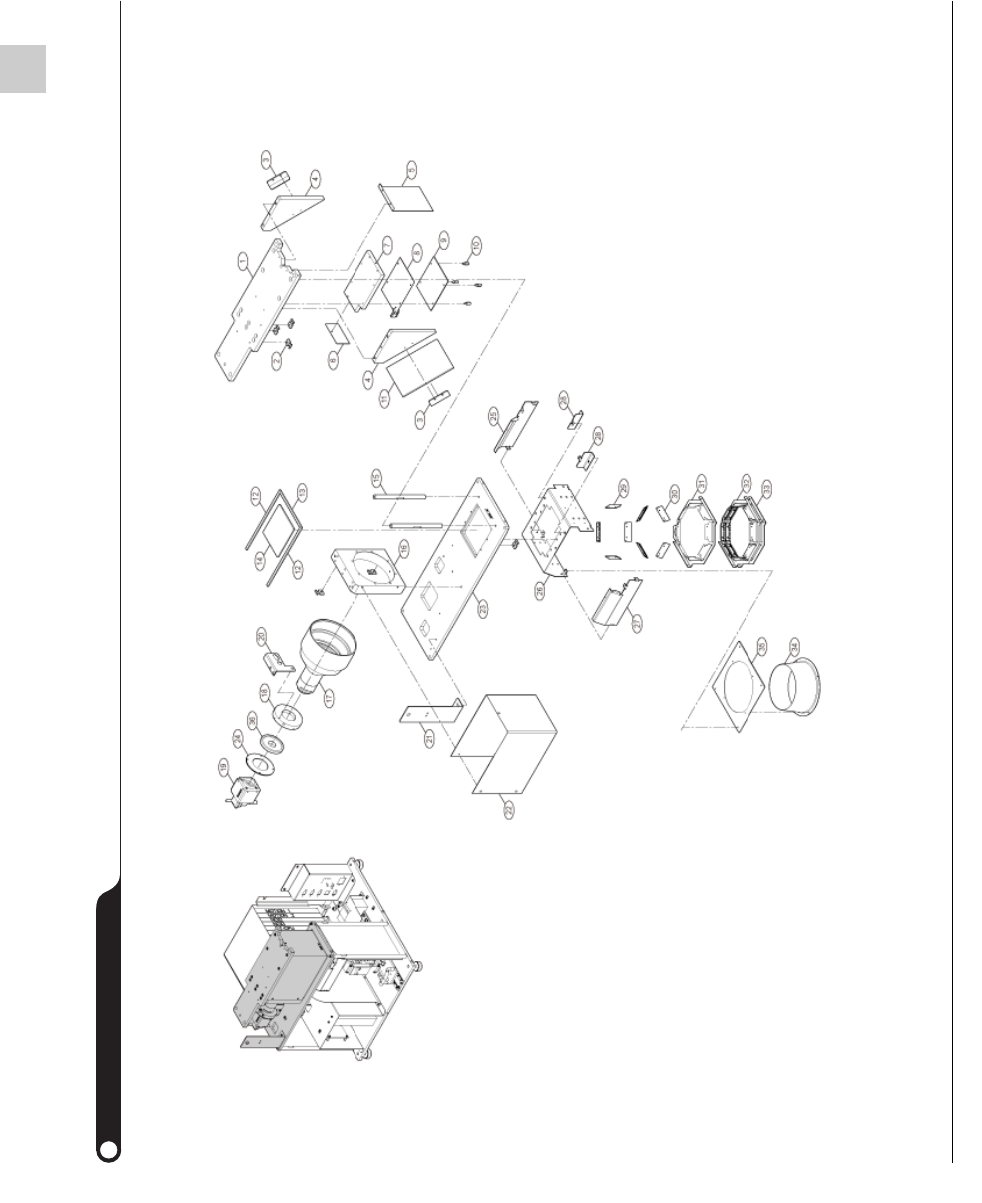

Stage Assembly分解图及零件表

2-9

附加装置

序号零件号元件名数量

1 J70811090A BASE 1

2 J1500028 PROFILE MOUNT 5

3 FC29-002659A ELITE-MIRROR_HOLDER 2

4 J71801205A ELITE-MIRROR_STAND 2

5 EP15-000006A COAX_PLATE 1

6 J70811084A SHUTTER_PLATE 1

7 J71801206A CLED-BASE 1

8 EP16-000038A COAXIAL_LED 1

9 J72801052A DIFFUSER 1

10 J6103005A HEX SUPPORT 4

11 J67551020A MIRROR 1

12 J73591001A TAPE_L 2

13 J73591002A TAPE_S 1

14 J67541028A COVER_GLASS 1

15 J70811095A POLE 2

16 FC29-002654A ELITE-HOLDER_MAIN 1

17 AM03-000868A LENS_ASSY 1

18 J71801209A ADJUST_HOLDER 1

19 J67511005A CAMERA_ASSY 1

20 J70811087A HOLDER_SUB 1

{TzYG|˅Gn{TzYG|˅Gn

2-10

21 FC09-003561A ELITE-MC_BKT 1

22 J70811088A COVER 1

23 FC30-001714A ELITE-LIGHT_BASE 1

24 J71801210A ADJUST_PLATE 1

25 J70811078A SIDE_COVERLR 1

26 J70811080A SLED_BASE 1

27 J70811077A SIDE-COVERLF 1

28 J70811079A SIDE＿COVERS 1

29 EP16-000040A PCB,LED-V1 SIDE_PCB_B;PC1:PCB 12

30 EP16-000039A PCB,LED-V1 SIDE_PCB_A;PC1:PCB 1

31 J70811083A LOW_BASE_HOLDER 1

32 J70811082A MID_BASE_HOLDER 1

33 J70811081A UP_BASE 1

34 J70811075A TOP_COVER 1

35 J72801053A P_COVER 1

36 J71801212A C_MOUNT 1

序号零件号元件名数量
