48 BSA II Operating Instructions T echnical Data Models BSA822 | BSA8201 | BSA5201 | BSA2201 Model BSA822-1x | BSA822I-1x BSA8201-1x BSA8201I-1x BSA5201-1x | BSA5201I-1x BSA2201-1x | BSA2201I-1x Unit V alue V alue V alue…
BSA II Operating Instructions 47
Technical Data
15.8.2 Devices with Frame Draft Shield
Models BSA6202 | BSA4202 | BSA3202 | BSA2202
Model
BSA6202-1x |
BSA6202I-1x
BSA4202-1x |
BSA4202I-1x
BSA3202-1x |
BSA3202I-1x
BSA2202-1x |
BSA2202I-1x
Unit Value Value Value Value
Readability | Scale interval (d) mg 10 10 10 10
Maximum capacity (Max) g 6200 4200 3200 2200
Repeatability
At approx. the maximum load, typical
value
mg 10 10 10 10
Linearity deviation
Limits ± mg 20 20 20 20
Sensitivity drift between +10°C and +30°C ± ppm/K 2 2 2 2
Tare maximum capacity (subtractive) <100% of maximum capacity
Only for models with approval:
Accuracy class II II II II
Type BC-EE BC-EE BC-EE BC-EE
Verification scale interval (e) mg 100 100 100 100
Minimum load (Min) mg 500 500 500 500
Typical measurement time s ≤1.0 ≤1.0 ≤1.0 ≤1.0
Recommended calibration weight
External calibrated test weight g 5000 2000 2000 2000
Accuracy class in accordance with
OIML R111-1
F1 F1 F1 F1
48 BSA II Operating Instructions
Technical Data
Models BSA822 | BSA8201 | BSA5201 | BSA2201
Model
BSA822-1x |
BSA822I-1x
BSA8201-1x
BSA8201I-1x
BSA5201-1x |
BSA5201I-1x
BSA2201-1x |
BSA2201I-1x
Unit Value Value Value Value Value
Readability | Scale interval (d) mg 10 100 100 100 100
Maximum capacity (Max) g 820 8200 8200 5200 2200
Repeatability
At approx. the maximum load, typical
value
mg 10 100 100 100 100
Linearity deviation
Limits ± mg 20 300 100 100 100
Sensitivity drift between +10°C and +30°C ± ppm/K 2 7 2 2 2
Tare maximum capacity (subtractive) <100% of maximum capacity
Only for models with approval:
Accuracy class II II II II II
Type BC-EE BC-EI BC-EG BC-EE BC-EE
Verification scale interval (e) mg 100 1000 1000 100 100
Minimum load (Min) mg 500 5000 5000 5000 5000
Typical measurement time s ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Recommended calibration weight
External calibrated test weight g 500 5000 5000 5000 2000
Accuracy class in accordance with
OIML R111-1
F2 F2 F2 F2 F2
BSA II Operating Instructions 49
Technical Data
15.9 Backup Battery
Unit Value
Lithium battery, type CR2032
Service life at room temperature, minimum Years 10
15.10 Interfaces
15.10.1 RS232 Interface
Unit Value
Type of interface: Serial interface
Interface operation: Full duplex
Level: RS232
Connection type: D-sub connector, 9-pin
Maximum cable length: m 10
Pin Assignment

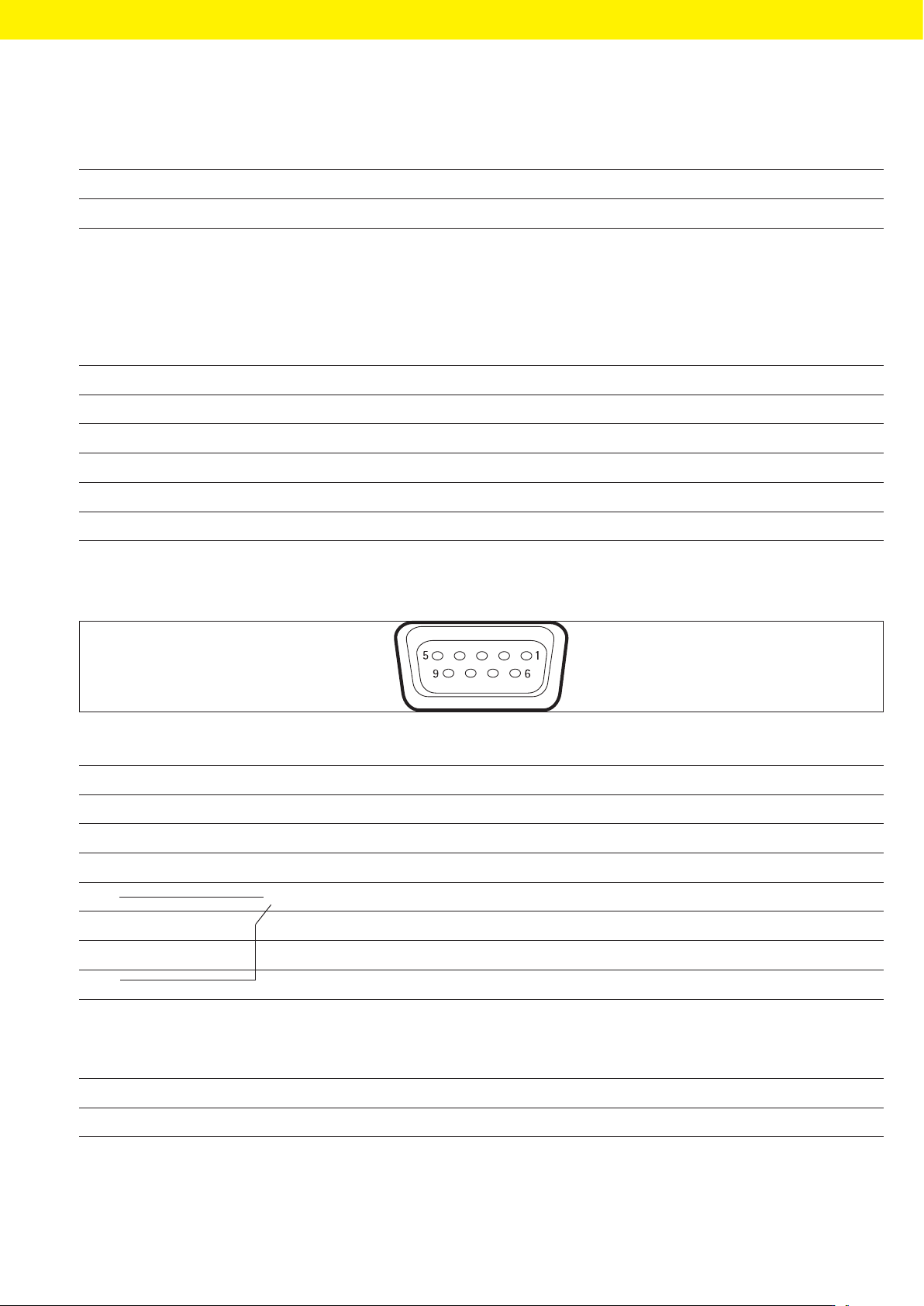

Fig. 11: Pin 1 – 9
Pin Description
1, 4, 6 Not assigned
2 Data output (T x D)
3 Data input (R x D)
5 Internal ground
7 Clear to Send (CTS)
8 Request to Send (RTS)
9 Universal remote switch
15.10.2 USB-C Interface
Communication: USB OTG
Connectable devices: Sartorius printers, Sartorius second display or PC
