IPC-TM-650 EN 2022 试验方法1.pdf - 第441页

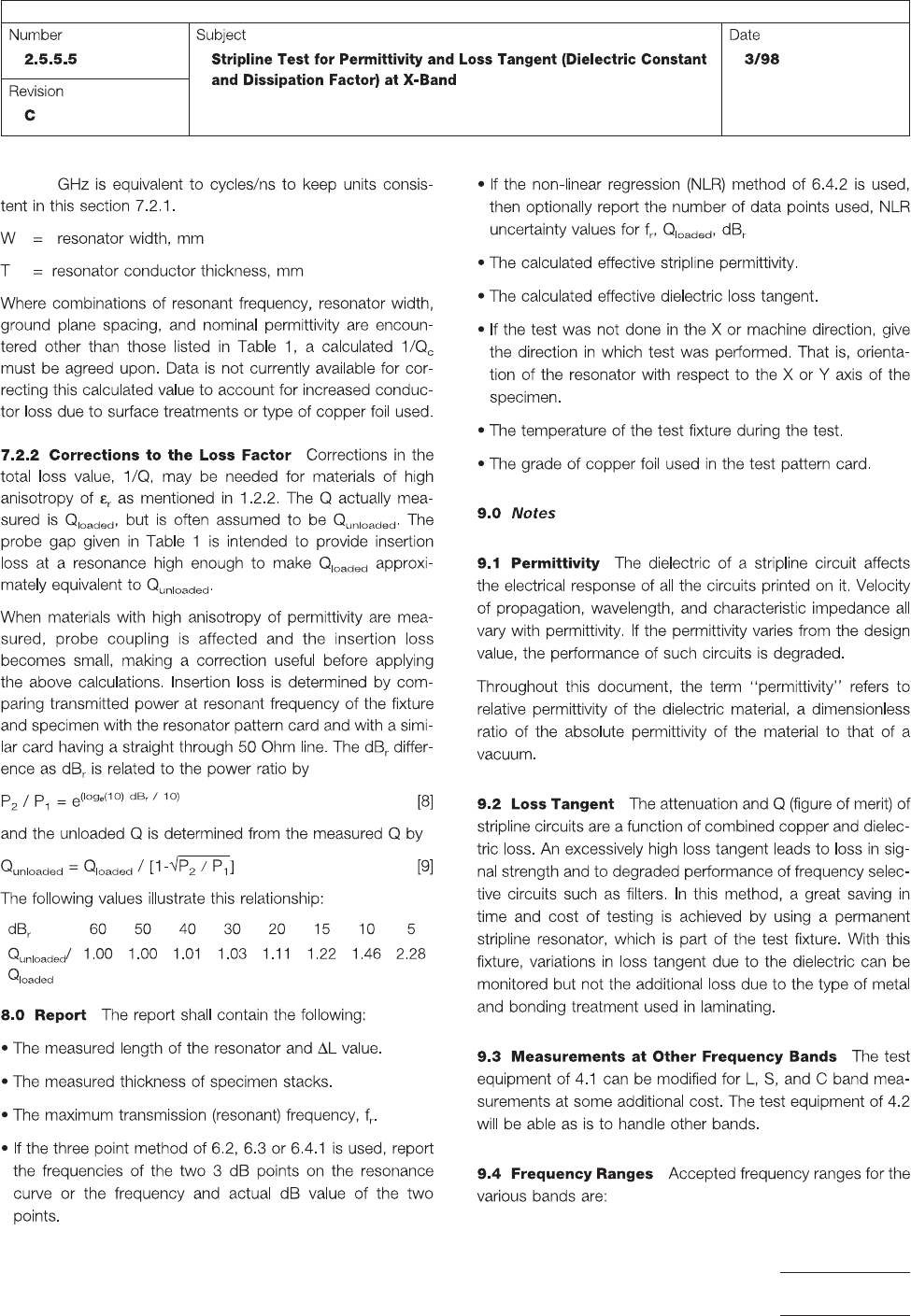

NOTE: IPC-TM-650 Page 9 of 25

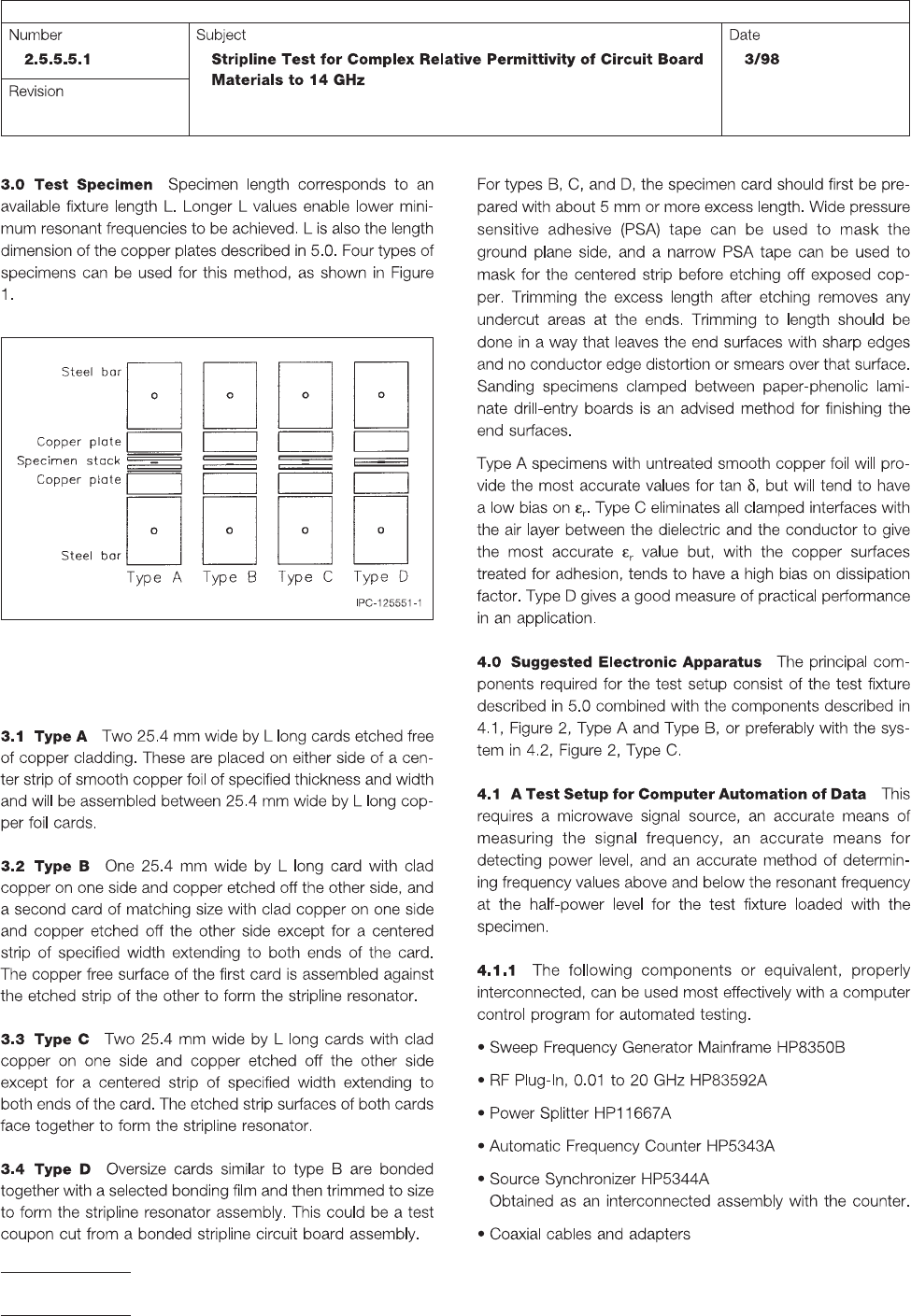

Figure 1 Exploded End Views of Stacked Specimen
Types A, B, C and D (See 3.0) with Copper Foil Thickness
Exaggerated and Including the Copper Plates (See 5.1.2)
and Steel Bars (See 5.1.1) of the Fixture
IPC-TM-650
Page 2 of 11
NOTE:
IPC-TM-650
Page 9 of 25

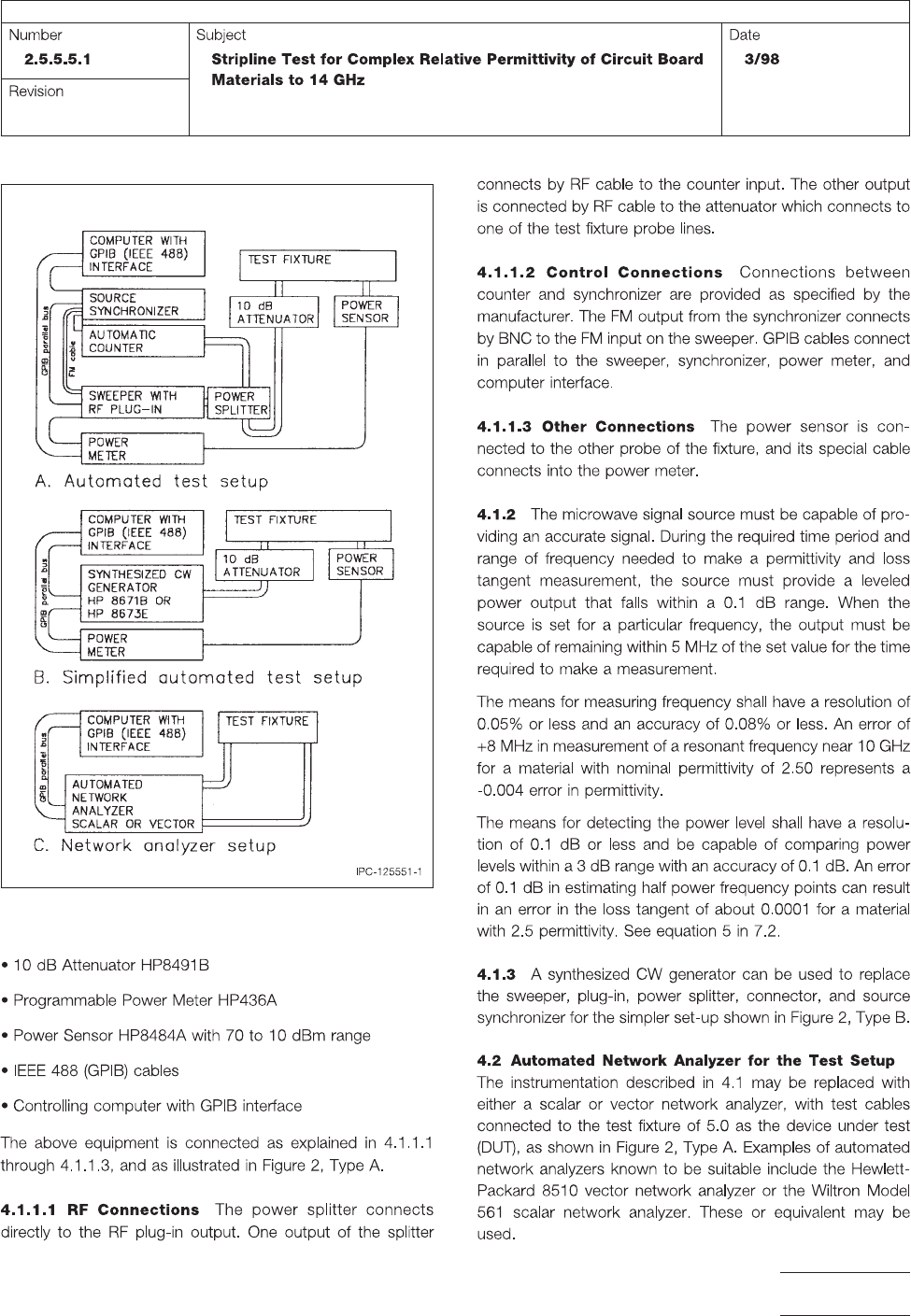

Figure 2 Schematic Drawings of Instrumentation
Setups Suitable for Measurements of Permittivity
IPC-TM-650
Page 3 of 11
