IPC-TM-650 EN 2022 试验方法1.pdf - 第454页

Figure 14 Enla rged Exploded Side View Secti oned Through a Probe Lin e Showing a Lap Co nductor Joint IPC-TM-650 Page 22 of 25

100%1 / 824

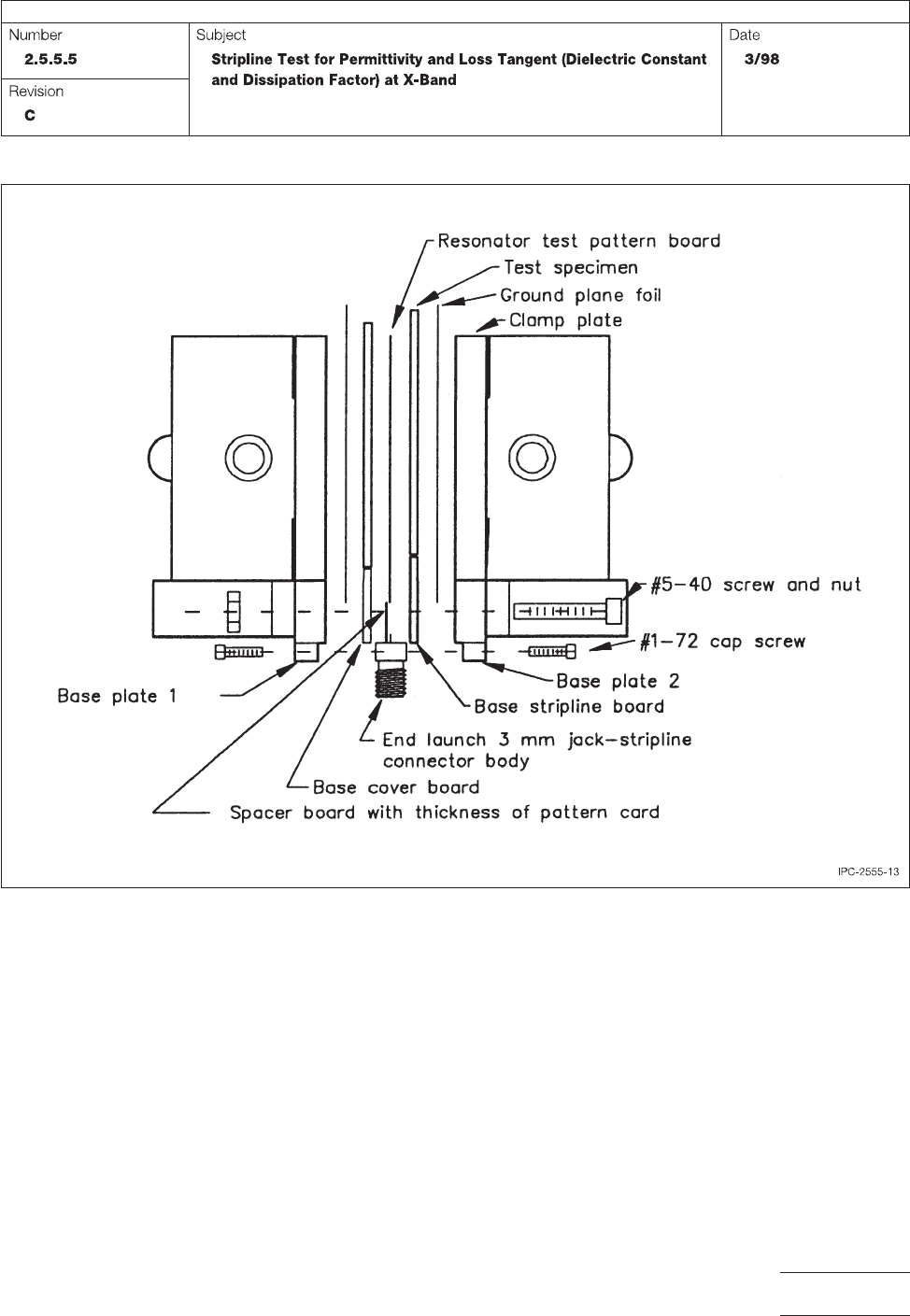

Figure 13 Exploded Side View of Assembly
IPC-TM-650
Page 21 of 25

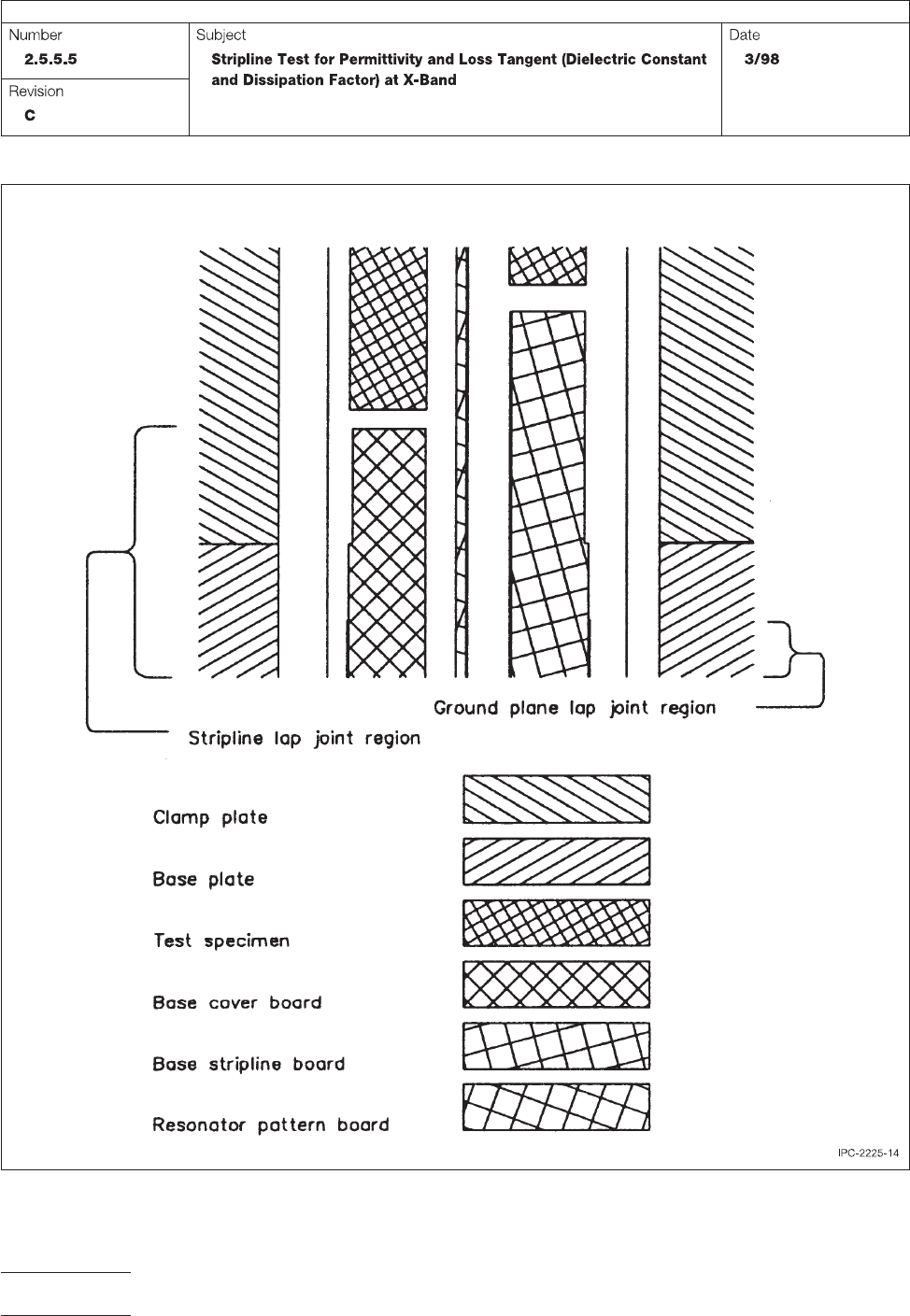

Figure 14 Enlarged Exploded Side View Sectioned Through a Probe Line Showing a Lap Conductor Joint
IPC-TM-650
Page 22 of 25

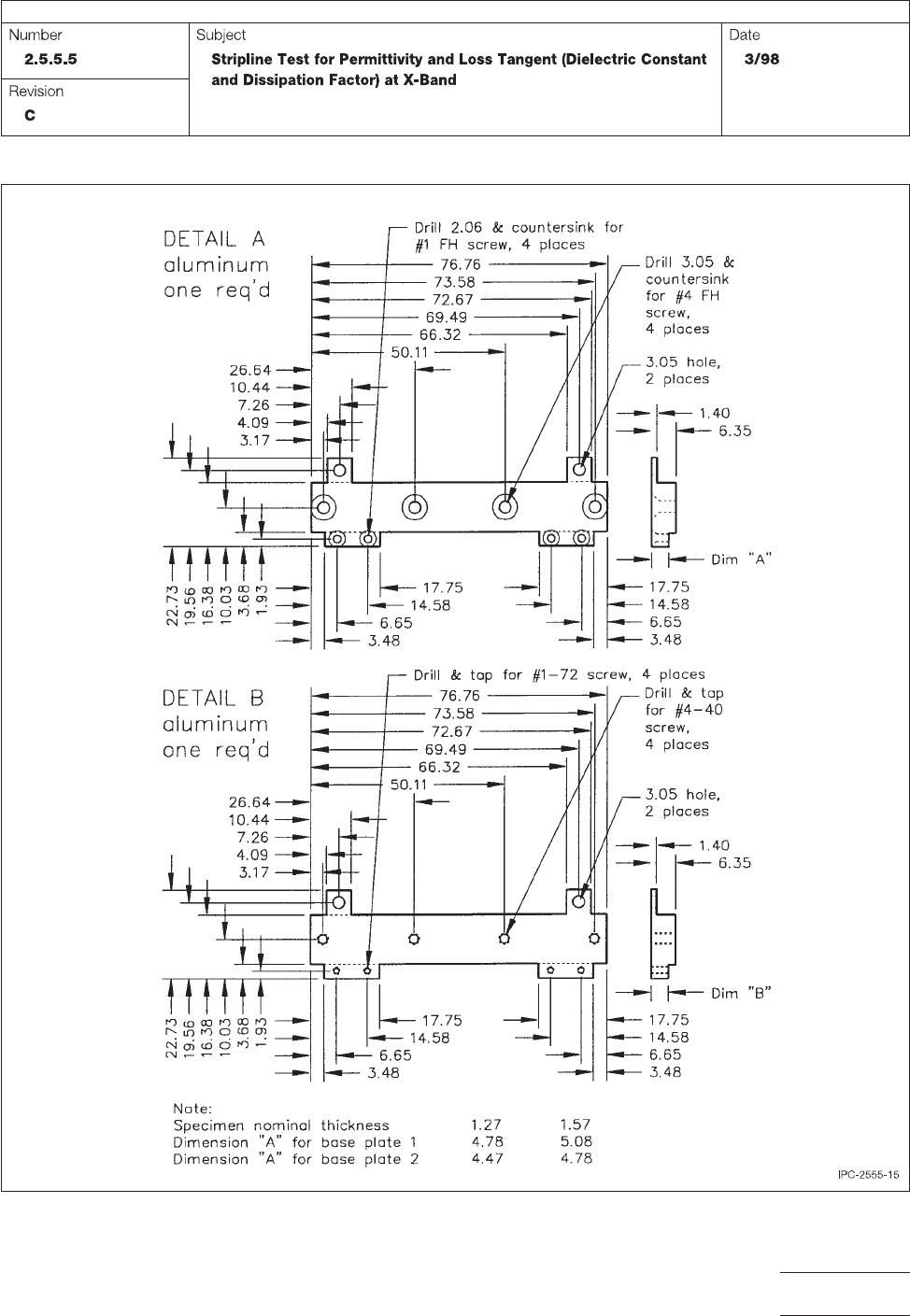

Figure 15 Test Fixture Construction, Older Design
IPC-TM-650
Page 23 of 25
