T a ble 2A % of Sample by Weight—Nominal Sizes Less Than 1% Larger Than 80% Minimum Between 10% Maximum Less Than T ype 1 150 Microns 150–75 Microns 20 Microns T ype 2 75 Microns 75–45 Microns 20 Microns T ype 3 45 Micro…

100%1 / 824

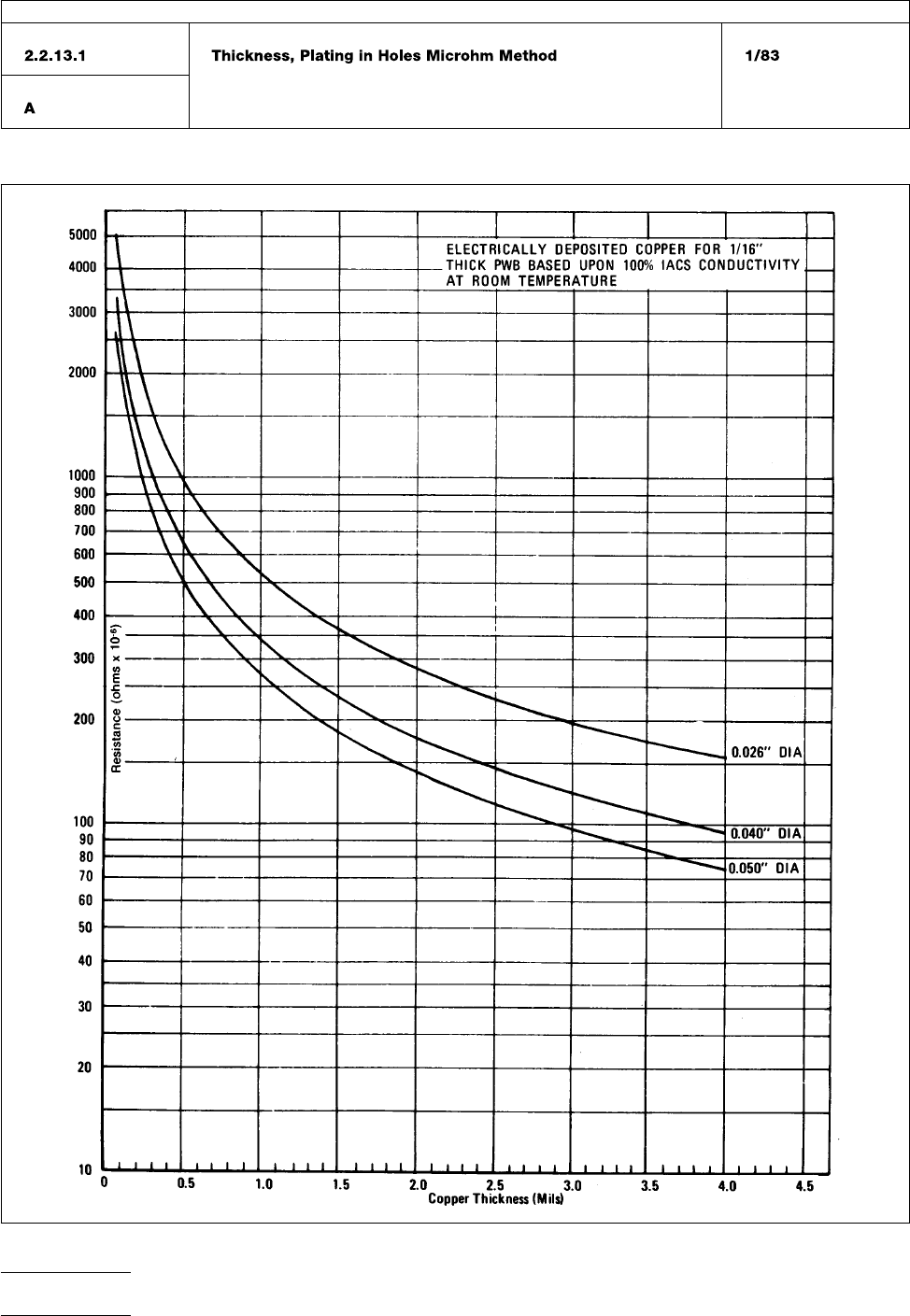

Figure 3 Microhm Meter Calibration Curves
IPC-TM-650
Number
Subject Date
Revision
Page 4 of 4
Table 2A % of Sample by Weight—Nominal Sizes
Less Than 1%
Larger Than
80% Minimum
Between
10% Maximum
Less Than
Type 1 150 Microns 150–75 Microns 20 Microns
Type 2 75 Microns 75–45 Microns 20 Microns
Type 3 45 Microns 45–25 Microns 20 Microns
Table 2B % of Sample by Weight—Nominal Sizes
Less Than 1%
Larger Than
90% Minimum
Between
10% Maximum
Less Than
Type 4 38 Microns 38−20 Microns 20 Microns
Table 3
Type 1 +150µm +75 µm +20 µm –20 µm
Type 2 + 75 µm +45 µm +20 µm –20 µm
Type 3 + 45 µm +25 µm +20 µm –20 µm
Type 4 + 38 µm +20 µm –20 µm

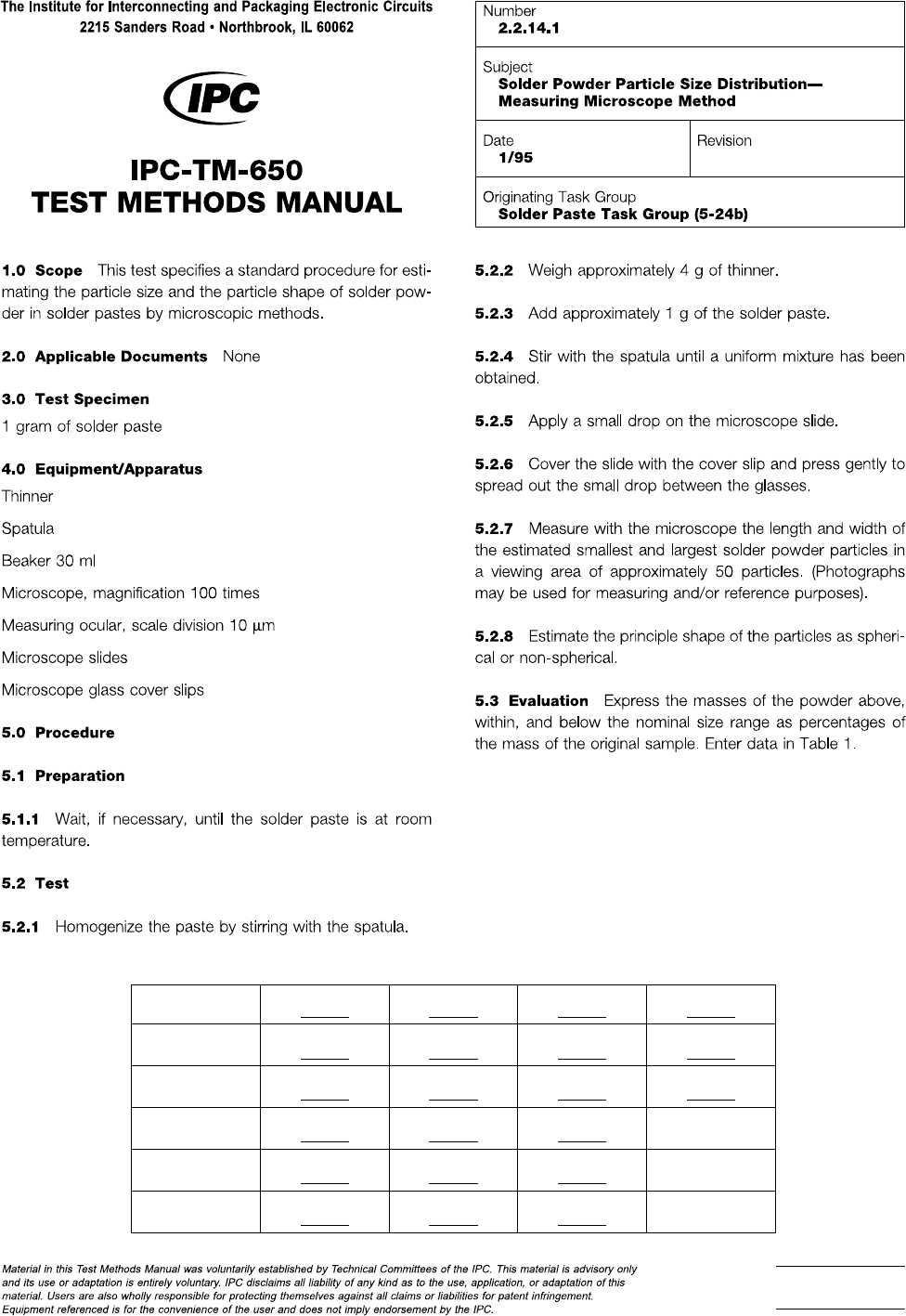

IPC-TM-650
Number
Subject Date
Revision
Page 2 of 2
Table 1
Type 1 +150µm +75 µm +20 µm –20 µm
Type 2 + 75 µm +45 µm +20 µm –20 µm
Type 3 + 45 µm +25 µm +20 µm –20 µm
Type 4 + 38 µm +20 µm –20 µm
Type 5 + 30 µm +15 µm –15 µm
Type 6 + 15 µm + 5 µm – 5 µm
