Figure 5 Dual Exposure Picture TD R T race Figure 6 T est Cable Hookup IPC-TM-650 Number Subject Date Revision Page 3 of 3

100%1 / 824

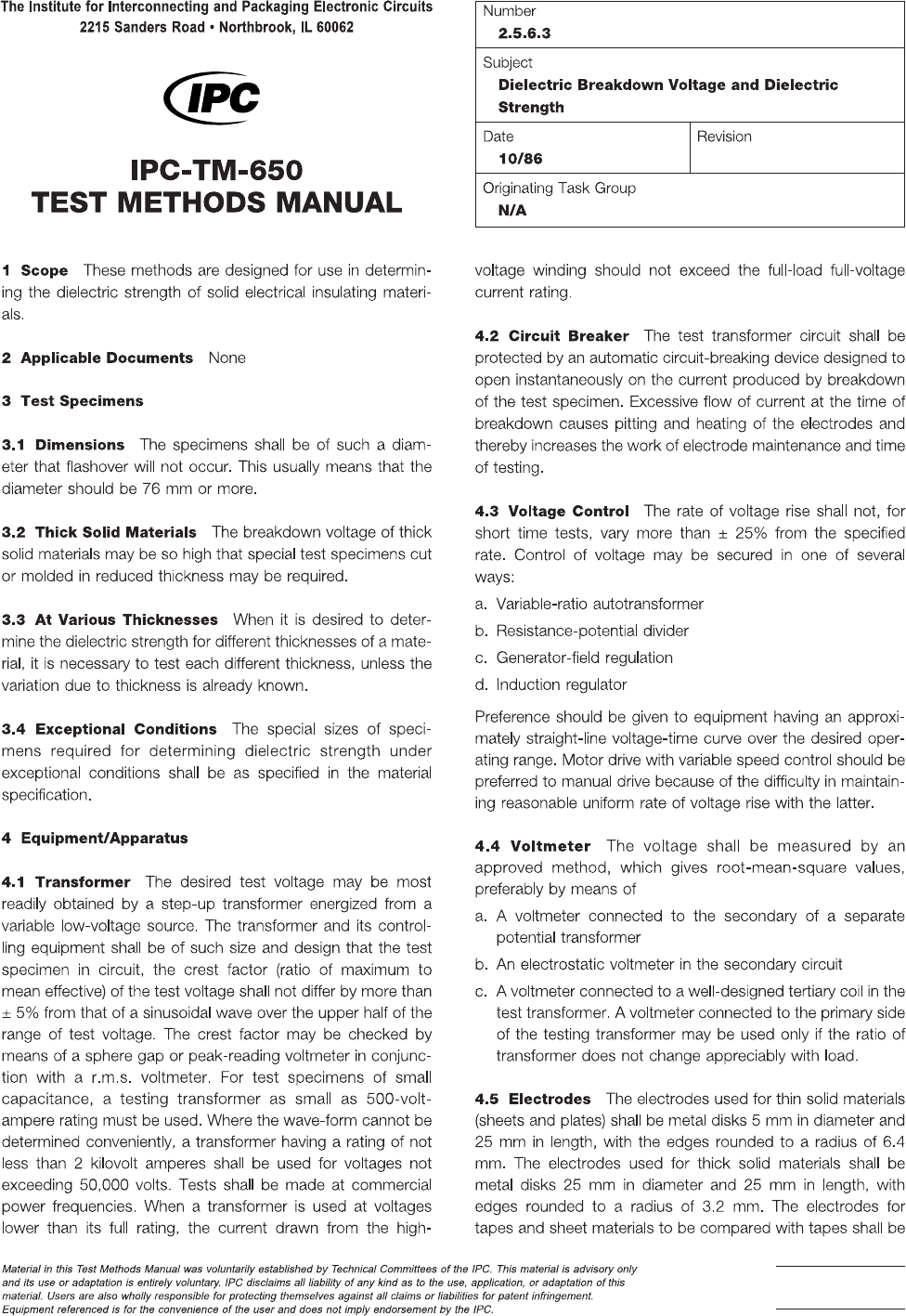

Page 1 of 3

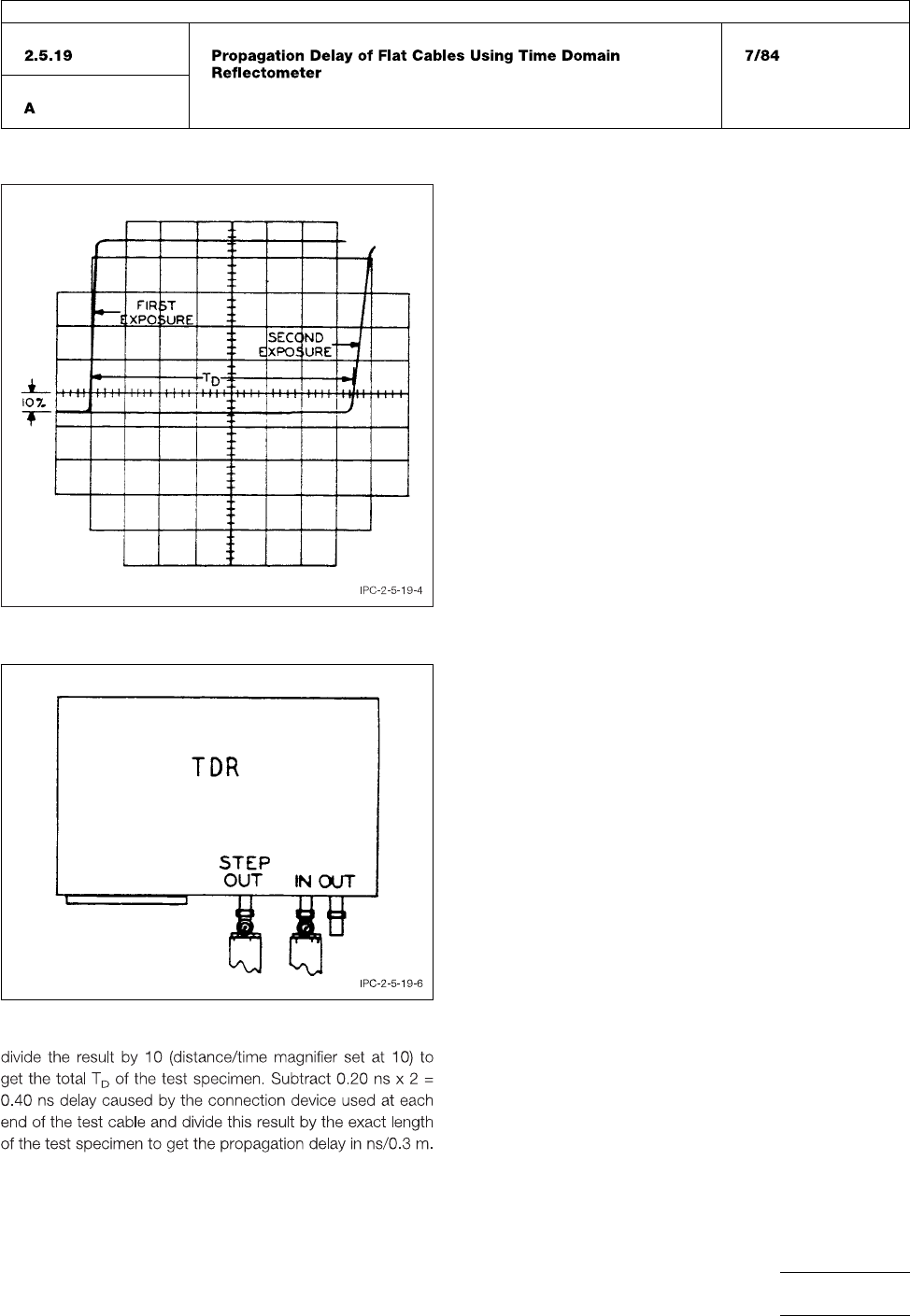

Figure 5 Dual Exposure Picture TDR Trace
Figure 6 Test Cable Hookup
IPC-TM-650
Number
Subject Date
Revision
Page 3 of 3

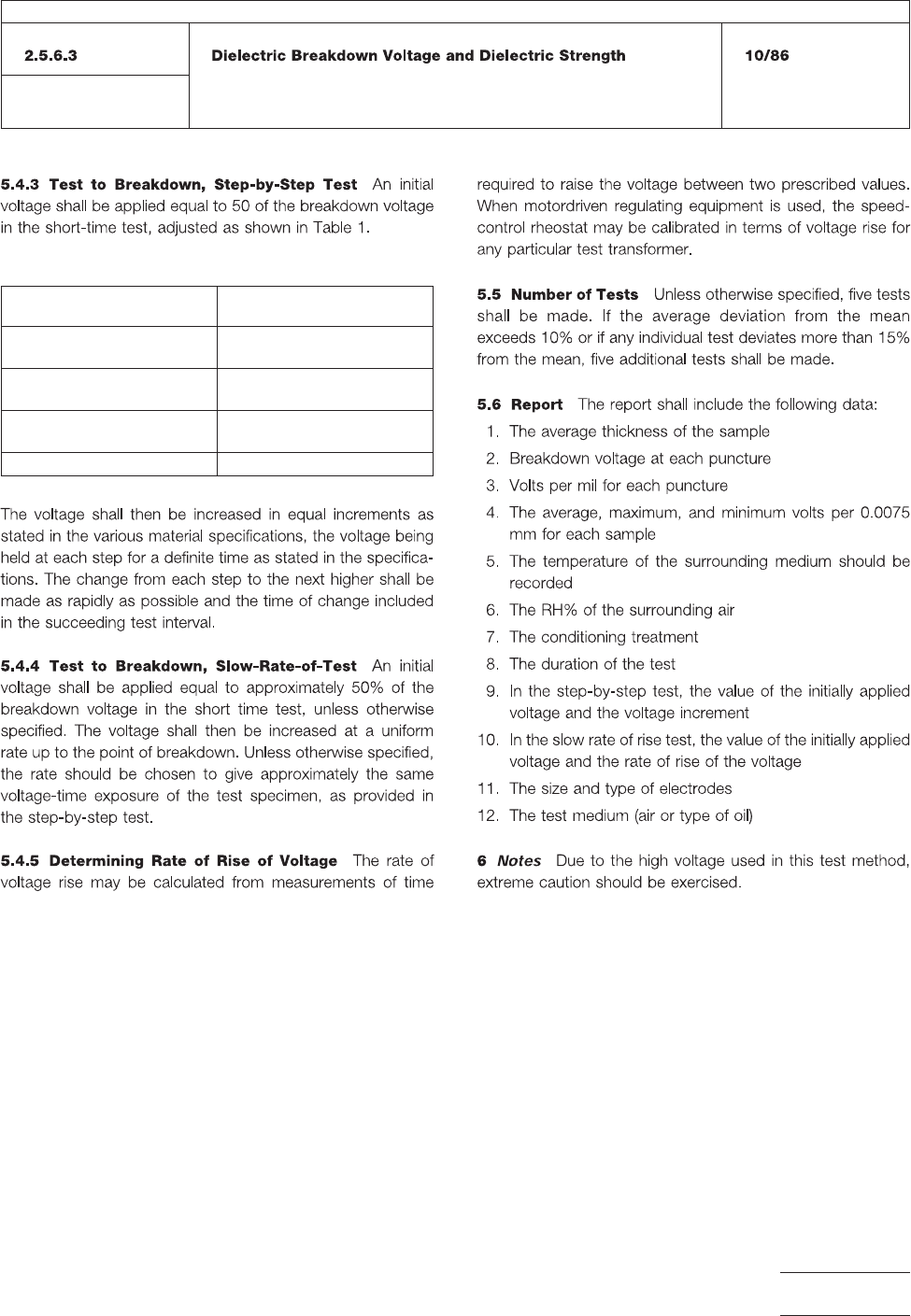

Table 1 Application of Initial Voltage
Breakdown voltage by
short-time method
Adjust 50% of breakdown
voltage to nearest
25 kilovolts or less 1.0 kilovolt (unless
otherwise specified)
Over 25 to 50 kilovolts.
inclusive
2.0 kilovolts
Over 50 to 100 kilovolts,
inclusive
5.0 kilovolts
Over 100 kilovolts 10.0 kilovolts
