4.2.3 Datalogic Scanner’s Cradle BC-8030-BT (Bluetooth) Hardware Installation
Installation Manual SIPLACE Setup Center 6.3 23
Step 4
► Click Next.
Step 5
► Read the license agreement relating to use of this software and select I Agree to accept the license
agreement.
► Click Next.
Step 6
► The installation of the driver software starts.
► The "Installation Complete" window appears if the installation has been completed successfully.
► Click Close.
Installation
Hardware Installation 4.2.4 Motorola 1D/2D barcode scanner
24 Installation Manual SIPLACE Setup Center 6.3
Steps to configure the cradle to the USB-COM interface
The device may be configured to a different interface ex factory, the following steps switch to USB-COM
port.
► Please scan the following barcodes in the order they are printed:
► Scan the “Link by Contact” – Barcode from the cradle and put the scanner into the cradle.
⇨ The scanner is now registered on the cradle.
► Scan the barcode "USB-COM" to set the interface to USB.
The cradle is now ready for use with Setup Center.
4.2.4
4.2.4 Motorola 1D/2D barcode scanner
Motorola 1D/2D barcode scanner
4.2.4.1
4.2.4.1 System Requirements
System Requirements
The following components are required for the operation of the scanner:
▪ WLAN-infrastructure (not included)
▪ Motorola scanner integrated in WLAN-infrastructure and accessible with "ping" windows-command.
▪ Required scanner firmware versions
– MC70: 05.43
– MC75: 02.37
– MC3090: 01.13
– MC3190: 03.26
NOTICE
The scanner might be delivered with a different firmware version. Please install the firmware
version listed above. It is located on the software DVD "SIPLACE Support Media DVD1” in the
section “SIPLACE Products” (See "4.2.4.3 Mobile Scanner Prerequisites Setup" [ ➙ 25]).
Please observe by all means the enclosed documentation.
NOTICE
Mobile scanner menus in Chinese
If you want the menus on the Motorola scanner to appear in Chinese, you first need to install a
localized (Simplified Chinese) operating system.
Installation
4.2.4 Motorola 1D/2D barcode scanner Hardware Installation
Installation Manual SIPLACE Setup Center 6.3 25
4.2.4.2
4.2.4.2 Configurate WLAN on Scanner
Configurate WLAN on Scanner
Please configure the barcode scanner for the operation within WLAN network - as described in docu
-
ment Installation Manual WLAN Infrastructure for SIPLACE (item no. 00195606-xx).
4.2.4.3
4.2.4.3 Mobile Scanner Prerequisites Setup
Mobile Scanner Prerequisites Setup
The installation for mobile scanner prerequisites setup is located on the DVD "SIPLACE Support Media
DVD1" in the Selective Installation section.

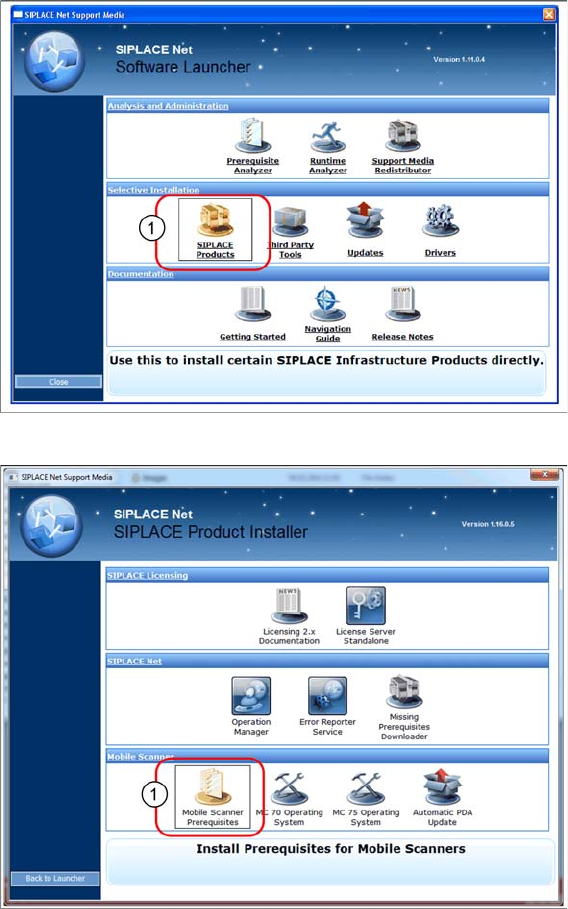

► Open SIPLACE Products (1).
► Execute the Mobile Scanner Prerequisites (1) setup.
