Installation 4.2.4 Motorola 1D/2D barcode scanner Hardware Installation Installation Manual SIPLACE Setup Center 6.3 27 ► Enter your user information and select "Next". ► Select the path for copying the install…
Installation
Hardware Installation 4.2.4 Motorola 1D/2D barcode scanner
26 Installation Manual SIPLACE Setup Center 6.3
Step 1: ActiveSync / Mobile Device Center
The Mobile Scanner Prerequisites Setup checks if the necessary communication program (ActiveSync
or Mobile Device Center) is present. If this is not the case, the program can be installed.
Windows XP: ActiveSync

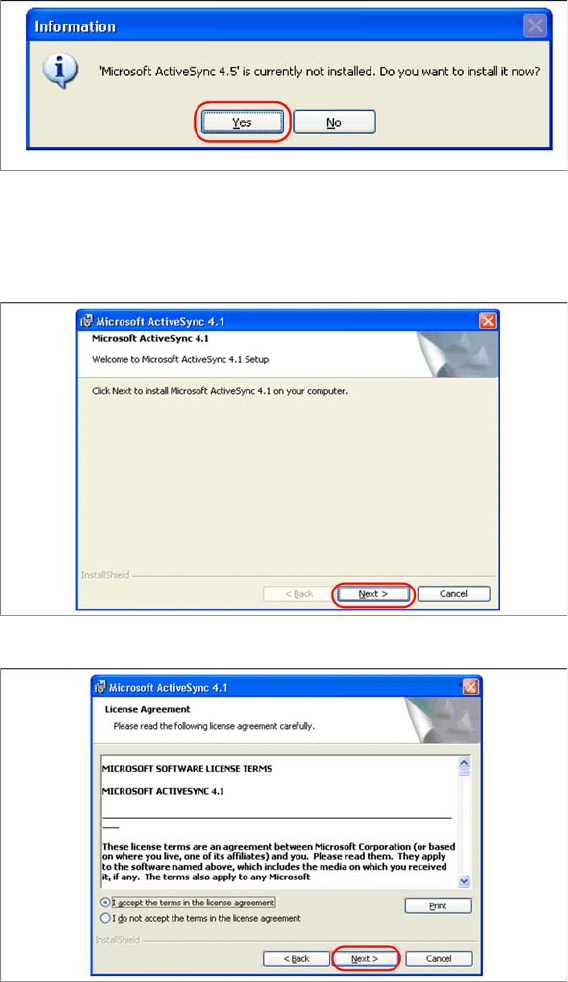

If ActiveSync is not installed on the system, the following message box appears.
► Select Yes to start the installation of Microsoft ActiveSync. Make sure that the scanner is not yet con
-
nected to the basic station.
Install ActiveSync
► Click on "Next" to proceed.
► Accept the licensing agreements and select "Next".
Installation
4.2.4 Motorola 1D/2D barcode scanner Hardware Installation
Installation Manual SIPLACE Setup Center 6.3 27
► Enter your user information and select "Next".
► Select the path for copying the installation files and select "Next".
► Select "Install" to start with the installation of Microsoft ActiveSync.
► Click on "Finish" to terminate the Microsoft ActiveSync Installation.
Installation
Hardware Installation 4.2.4 Motorola 1D/2D barcode scanner
28 Installation Manual SIPLACE Setup Center 6.3
► In case that a restart is necessary please select "Yes".
► Please start Mobile Scanner Prerequisites Setup installation after the restart.
See also
4.2.4.3.2 Step 2: AppCenter [ ➙ 29]
Windows Vista: Mobile Device Center
If Windows Mobile Device Center is not installed on the system, the following message box appears.
► Select “Yes” to start the installation of Mobile Device Center. Make sure that the scanner is not yet
connected to the basic station.
If Windows Mobile Device Center is not installed on the system, the installation of Mobile Device Center
will be executed. Make sure that the scanner is not yet connected to the basic station.
Install Mobile Device Center
► The installation of Mobile Device Center is beginning.
► Confirm with "OK".
See also
4.2.4.3.2 Step 2: AppCenter [ ➙ 29]
