Installation
4.2.5 Optional: Docking Station Hardware Installation
Installation Manual SIPLACE Setup Center 6.3 43
Compressed Air and Power Supplies
► Connect to the compressed air supply.
► Set the pressure reducer on the pneumatic connection (external) to 5.5 bar.
► Switch off the power supply and connect the CAN Bus cable to the device.
► Switch on the power supply.
► You will find a control lamp on the front of the device. This will shine when power is correctly supplied
to the device.
NOTICE
The compressed air and power connections can be found on the back of the docking station.
DANGER
Never cover the air discharge opening in the integrated fan and the ventilation slits on the side
of the device!
Covering these could lead to overheating and destruction of the power pack.
DANGER
Make sure that nobody is using the connected change over table when you switch the power
on.

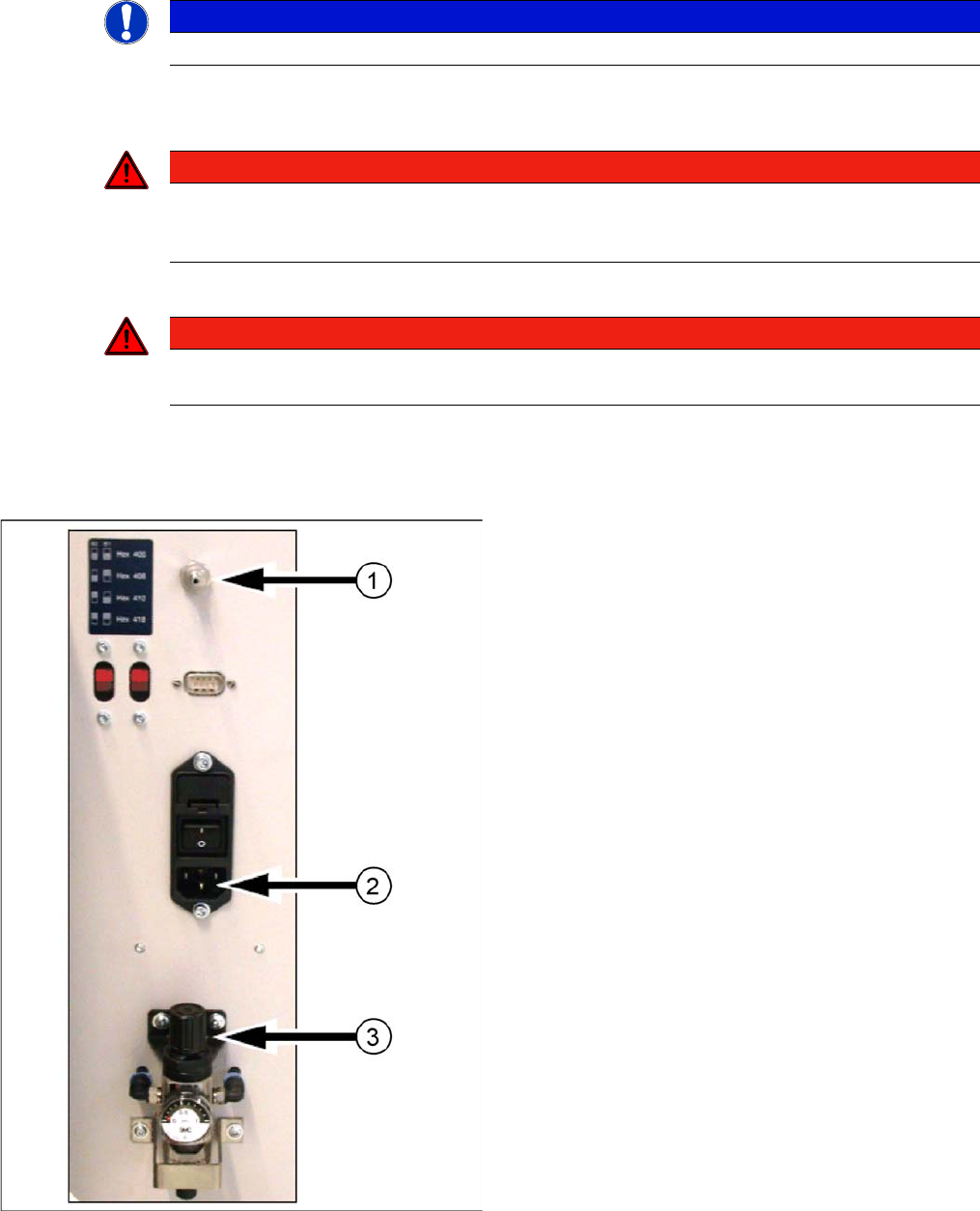

Docking station: compressed air and power supplies
Docking Station X
1. Compressed Air Connection
2. Power Connection
3. Set Compressed Air
Installation
Software Installation 4.3.1 Setup Center
44 Installation Manual SIPLACE Setup Center 6.3
4.2.5.4
4.2.5.4 Firmware download for docking station
Firmware download for docking station
► Setup Center can update the firmware of your docking station.
To learn how to update the firmware of your docking station, please refer to the chapter "Docking
Station Firmware Download" in the Online Help Setup Center.
4.3
4.3 Software Installation
Software Installation
4.3.1
4.3.1 Setup Center
Setup Center
The following steps have to be performed to install the required system components on the specific com
-
puter:
1. General settings, steps that are identical for all setup types
2. Setup types, the following setup types can be selected:
–Custom
– SIPLACE Setup Center Complete
– SIPLACE Setup Center GUI
– SIPLACE Setup Center Server

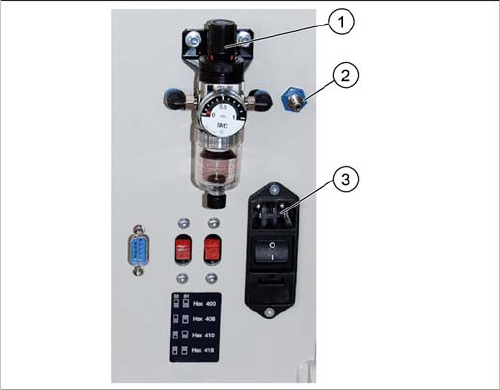

Docking Station SX
1. Set Compressed Air
2. Compressed Air Connection
3. Power Connection
Installation
4.3.1 Setup Center Software Installation
Installation Manual SIPLACE Setup Center 6.3 45
4.3.1.1
4.3.1.1 General Settings
General Settings
These steps are identical for all setup types. The subsequent steps only differ once you have selected
the setup type you require.
Run through the following steps to start the installation and then refer to the relevant section for your
specific setup type.
Step 1
► Insert the SIPLACE Setup Center installation CD into the CD-ROM drive. The installation routine
starts automatically.
► You can also start the installation by running the Autorun.cmd program located in the root directory
on the installation CD.
► This starts the user-controlled installation of SIPLACE Setup Center; you are prompted to select the
installation language.
"Choose setup language" dialog box
► Select the language you want.
► Click OK.
NOTICE
You require administrator rights for the installation procedure!
NOTICE
This decision only relates to the language used during the installation routine!
