Installation 4.4.5 Motorola / Symbol Scanner C on figuration Steps to Perform A fter Installation Installation Manual SIPLACE Setup Center 6.3 87 4.4.5 4 . 4 . 5 M o t o r o la / S y m b o l S c a n n e r C o n f ig u r …
Installation
Steps to Perform After Installation 4.4.4 Datalogic Scanner Connection
86 Installation Manual SIPLACE Setup Center 6.3
► Remove the scanner from cradle and press the “Enter”-key on scanner to check the connection to
Setup Center.
► Click Yes to connect another scanner with Setup Center.
► Activate the next Scanner from standby, put it into cradle and click Start.
NOTICE
4 scanners as maximum
A maximum of 4 scanners can be operated at the bluetooth cradle.
CAUTION
Do not scan or press keys at an already connected scanner, while configuring a new one.
CAUTION
It’s not recommended to move a cradle from one Setup Center Computer to another. In this
case, please configure each scanner again.
Installation
4.4.5 Motorola / Symbol Scanner Configuration Steps to Perform After Installation
Installation Manual SIPLACE Setup Center 6.3 87
4.4.5
4.4.5 Motorola / Symbol Scanner Configuration
Motorola / Symbol Scanner Configuration
4.4.5.1
4.4.5.1 Configurate Setup Center
Configurate Setup Center
The communication between Setup Center and scanner is achieved by network connection (socket).
Setup Center takes the role of the server and the scanner that one of the client.
Start Setup Center and open the setting via Tools -> Settings. Within the group Scanner the following
entry is now visible:
Activate the interface by selecting "Active". Check the fire wall settings whether the port chosen by Setup
Center is enabled and correct it if necessary. To accept the settings close the configuration dialog with
"OK".
NOTICE
Please configurate the barcode scanner for the operation within WLAN network - as described
in document Installation Manual WLAN Infrastructure for SIPLACE (item no. 00197199-xx).
Installation
Steps to Perform After Installation 4.4.5 Motorola / Symbol Scanner Configuration
88 Installation Manual SIPLACE Setup Center 6.3
4.4.5.2
4.4.5.2 Configure Setup Center Client
Configure Setup Center Client
Starting MC 70/MC75
After the installation routine has restarted the scanner the Setup Center Client is started automatically
and the Mobile Scanner dialog appears.
MC 3090/MC 3190
For MC 3090/MC 31090 you must start the installation manually.

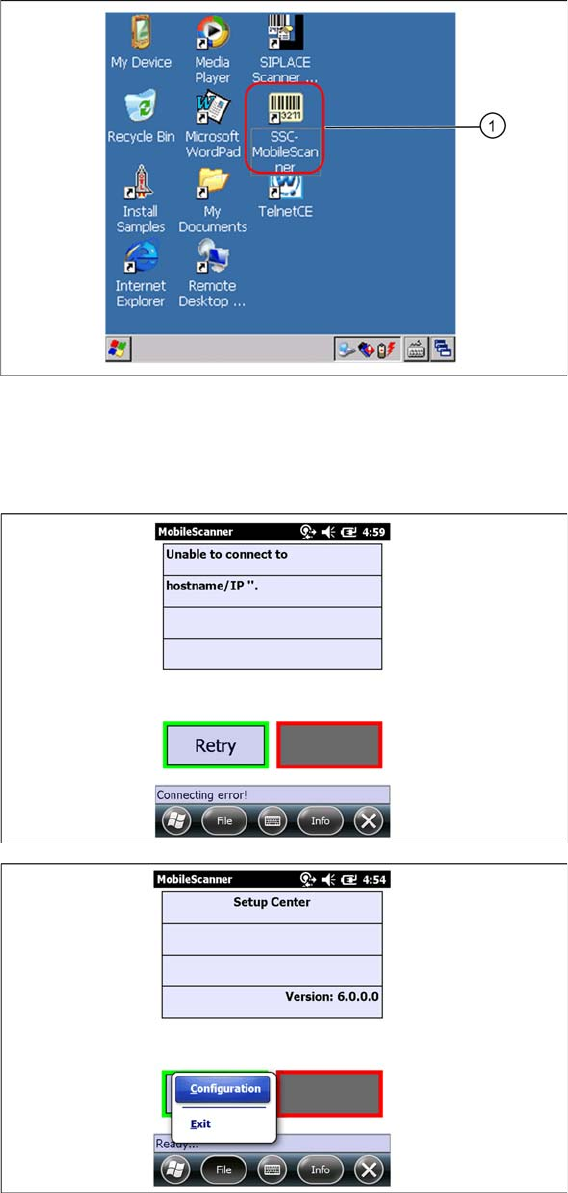

► Select SSC MobileScanner icon (1) to start installation.
⇨ The Mobile Scanner dialog appears.
Mobile Scanner dialog
