Installation Software Installation 4.3.1 Setup Center 60 Installation Manual SIPLACE Setup Center 6.3 Step 3 (Only when conflicts occur) During the insta llation,sett ings a re converted, s ome of which h ave been transf…

Installation

4.3.1 Setup Center Software Installation

Installation Manual SIPLACE Setup Center 6.3 59

Step 2

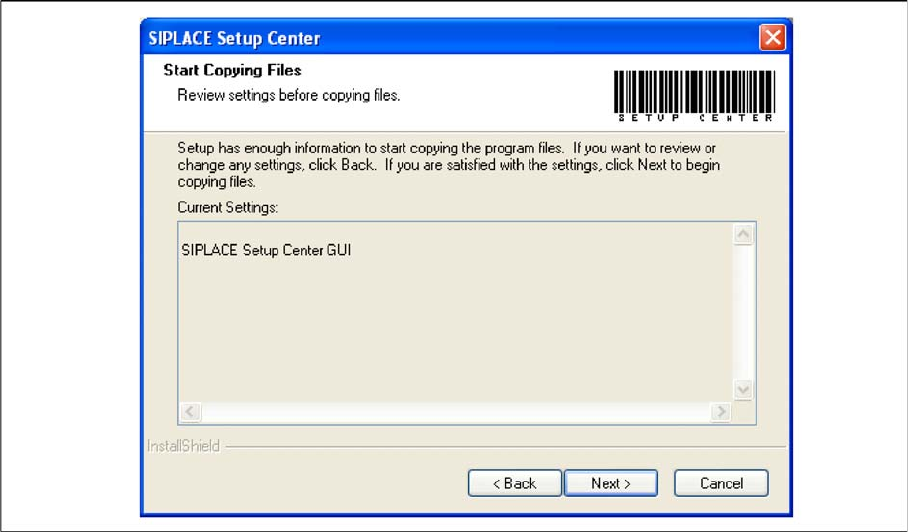

► The Start Copying Files dialog box gives you a chance to check the information again, which you

have entered during the previous steps.

► Click Next if you accept all the information entered so far.

► If you want to alter one or more details, click the Back button until you get back to the dialog box in

question.

► There, enter your changes and click Next to continue as usual.

⇨ The installation routine starts.

Installation

Software Installation 4.3.1 Setup Center

60 Installation Manual SIPLACE Setup Center 6.3

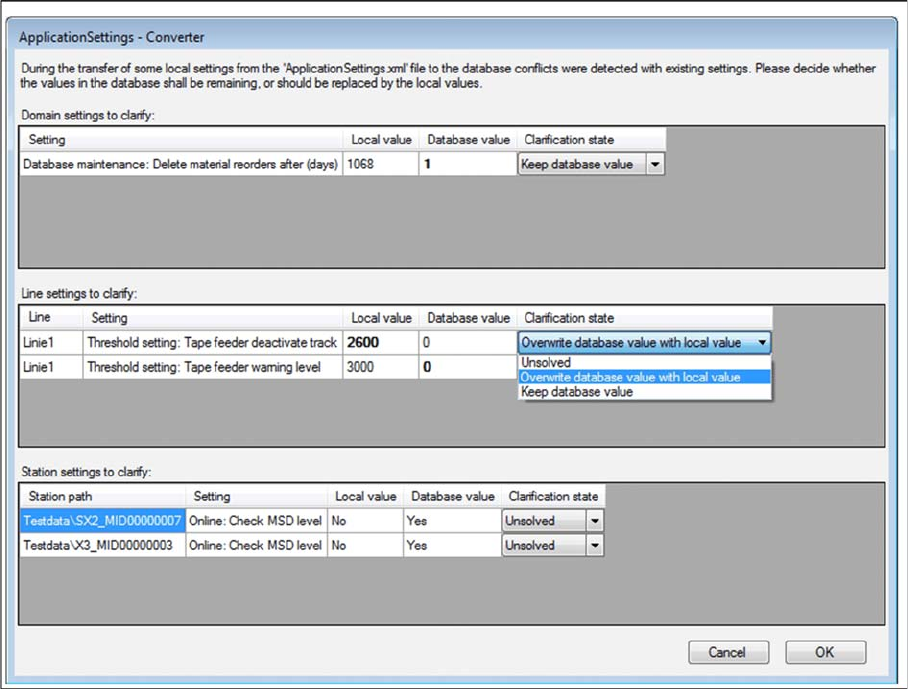

Step 3 (Only when conflicts occur)

During the installation,settings are converted, some of which have been transferred from the local Appli

cationSettings.xml file to the database. This can lead to conflicts with existing settings. If conflicts were

detected, the Application Settings - Converter dialog appears.

► Decide whether the values in the database shall remaining (Keep database value), or should be re

placed by the local values (Overwrite database value with local value).

► All settings must be solved to get the next step.

Installation

4.3.1 Setup Center Software Installation

Installation Manual SIPLACE Setup Center 6.3 61

Step 4

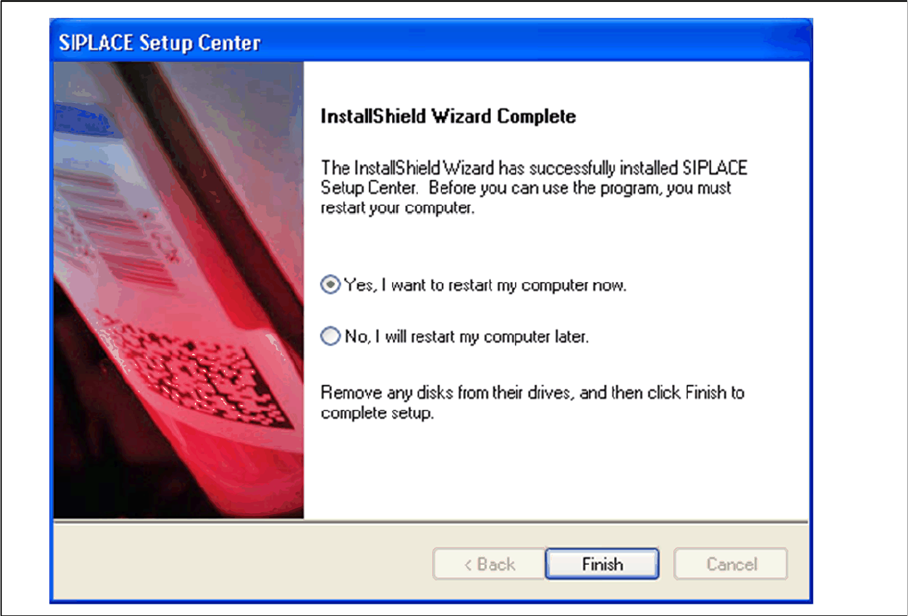

► The "Installation Complete" window appears if the installation has been completed successfully.

► Click Finish.
