Installation
Hardware Installation 4.2.5 Optional: Docking Station
40 Installation Manual SIPLACE Setup Center 6.3
See the connection scenarios below for CAN Bus cable connection.

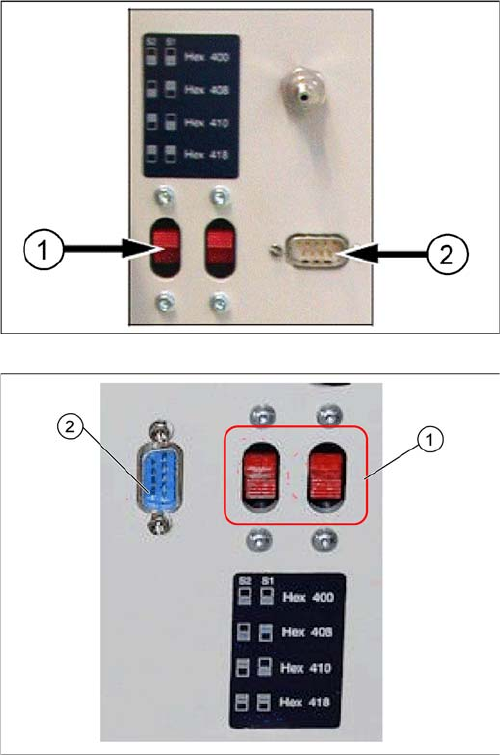

Docking Station X
1. CAN Bus Address Switch
2. CAN Connection
Docking Station SX
1. CAN Bus Address Switch
2. CAN Connection
Installation
4.2.5 Optional: Docking Station Hardware Installation
Installation Manual SIPLACE Setup Center 6.3 41
CAN Bus Cable Connection Examples

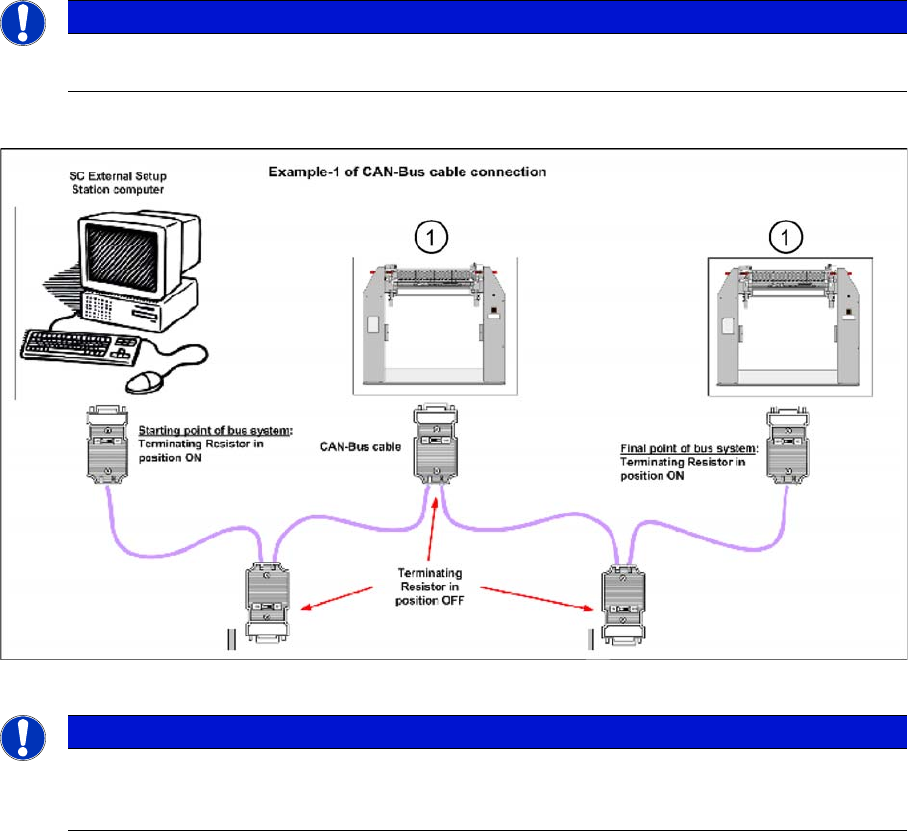

Connection Example 1
1. Docking Station X or SX
NOTICE
The first and the last terminating resistor must always be switched ON and the other switched
OFF independent of the number of docking stations.
NOTICE
The integrated terminal resistor can be connected and simultaneously connects / disconnects
the outgoing bus cable when deactivating / activating. This allows an easy start up of the bus
system one segment at a time.
Installation
Hardware Installation 4.2.5 Optional: Docking Station
42 Installation Manual SIPLACE Setup Center 6.3

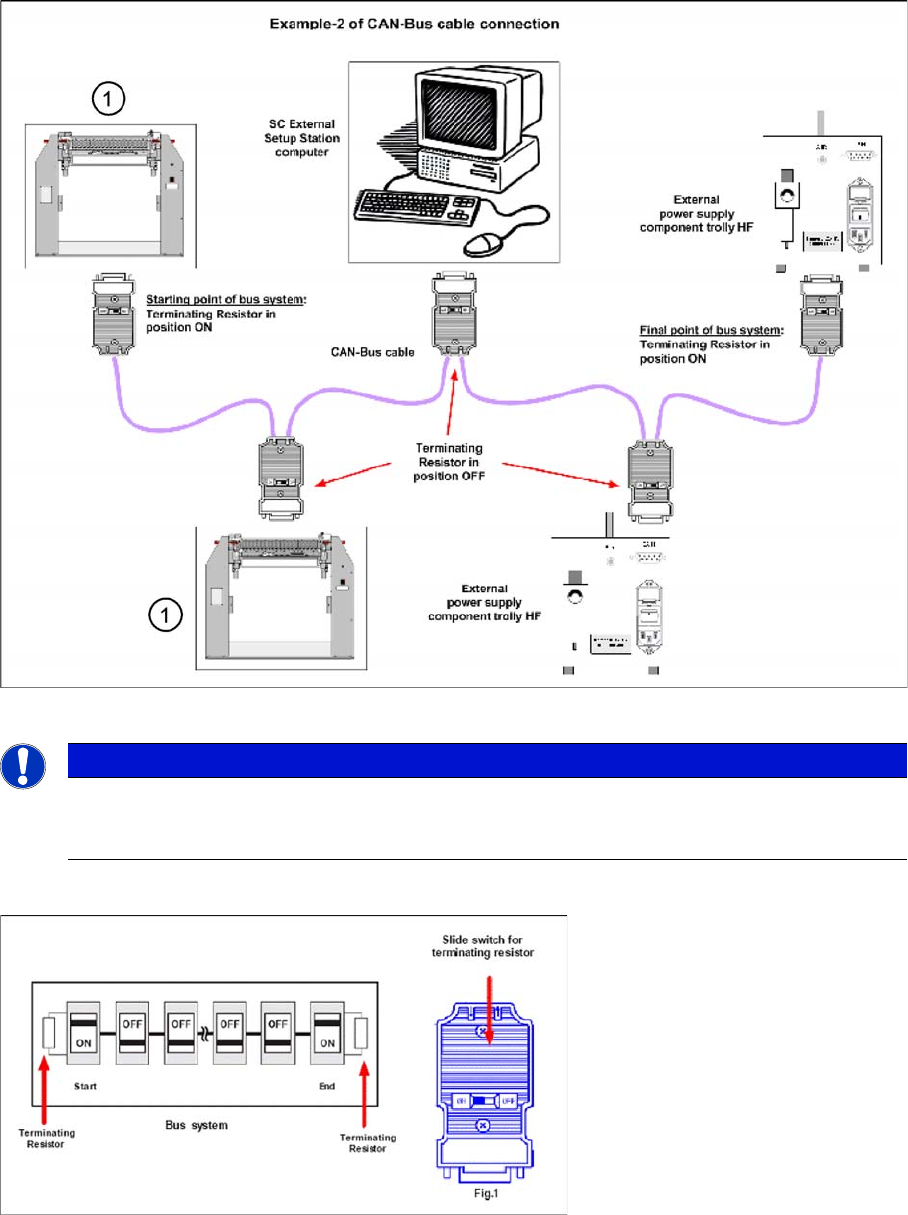

Connection Example 2
1. Docking Station X or SX
Connection Example 1 and 2
NOTICE
The integrated terminal resistor can be connected and simultaneously connects / disconnects
the outgoing bus cable when deactivating / activating. This allows an easy start up of the bus
system one segment at a time.
