Service Engineer Service Information SI0907002E - 003 = YS machine’s tape cu tter cleaning and lubrication 12 / 63
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
11/63

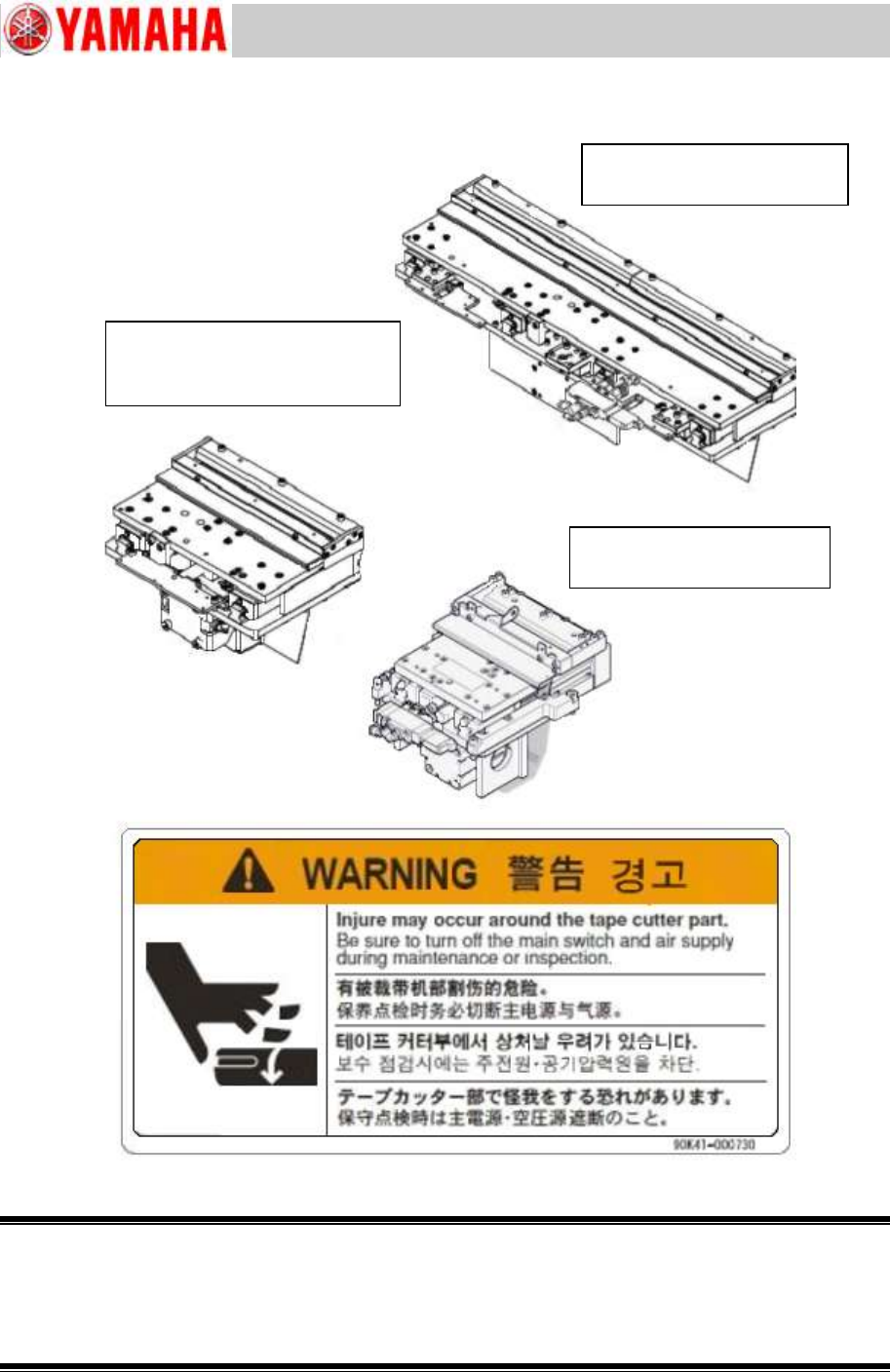

3.2 Tape cutter units appearance
Figure 7
Warning:
If you mishandle the tape cutter during the maintenance work, serious injuries may result. Please be
extremely careful and observe the maintenance procedures in this document precisely.
Should any tape cutter related fault occur, please contact your service representative or YAMAHA.
Damage induced as a result of the tape cutter maintenance by customers won’t be covered by
warranty.
For fixed feeder bank with
60 feeder positions
For fixed feeder bank with
14 feeder positions
For 24-feeder exchange
carriage / Fixed feeder bank
with 24 feeder positions
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
12/63
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
13/63
3.3 Preparation for ensuring safety
See “1.4 Use the Lock-out padlock” for the details.
1. Turn OFF the air supply and power of the machine.
Power OFF the machine and turn the Air supply supply/shut off switch clockwise to stop the air
supply to the machine.
2. Put the padlock to the keyhole for lock out of the Air supply supply/shut off valve.
3. Remove the air hose just in case.
Caution:
The location and the shape of the keyhole for the lock out padlock and the valve vary depending
on the model.
Make sure to check the location before the work.
4. Turn the Air supply supply/shut off valve for the tape cutter clockwise and release the
residual air.
Turn OFF the light blue coloured Air supply supply/shut off valve for the tape cutter and release the
residual air.
Caution:
Release the residual air inside the air hose for the tape cutter in order to free the tape cutter blade.
