Service Engineer

Service Information

SI0907002E-003=YS machine’s tape cutter cleaning and lubrication

25/63

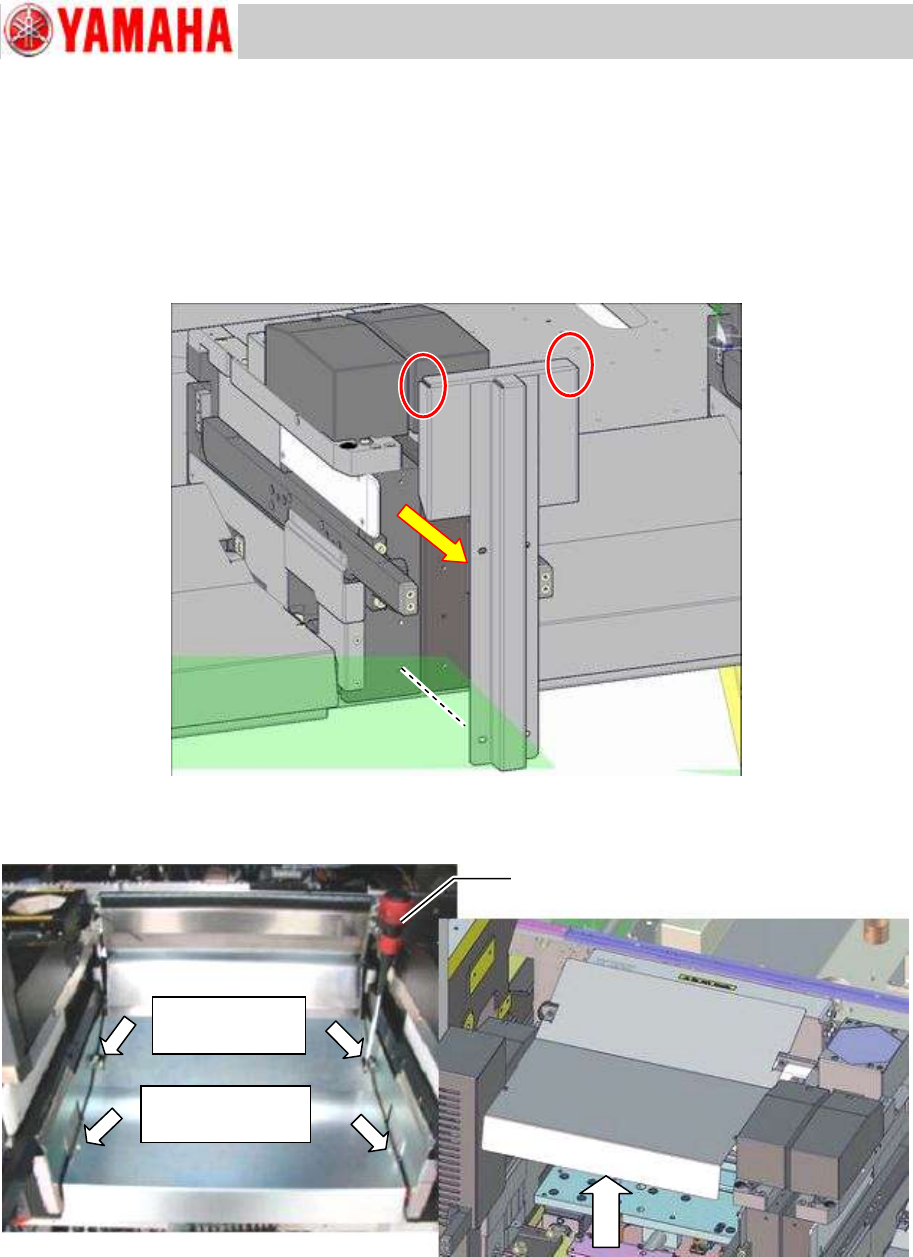

3.4.3 Remove the 24-Feeder exchange carriage

As the Feeder exchange carriage incorporates the feeder bank, if you separate the feeder

exchange carriage from the machine, the feeder bank is detached.

Step 1 Separate the feeder exchange carriage from the machine.

Step 2 Remove the center cover from the feeder exchange carriage for safety.

Figure 31

Step 3 Remove the protective cover of the cutter blade by removing its four (4) fixing screws.

Figure 32

Philips screwdriver

Remove four (4)

screws

Cutter blade

protective cover

Service Engineer

Service Information

SI0907002E-003=YS machine’s tape cutter cleaning and lubrication

26/63

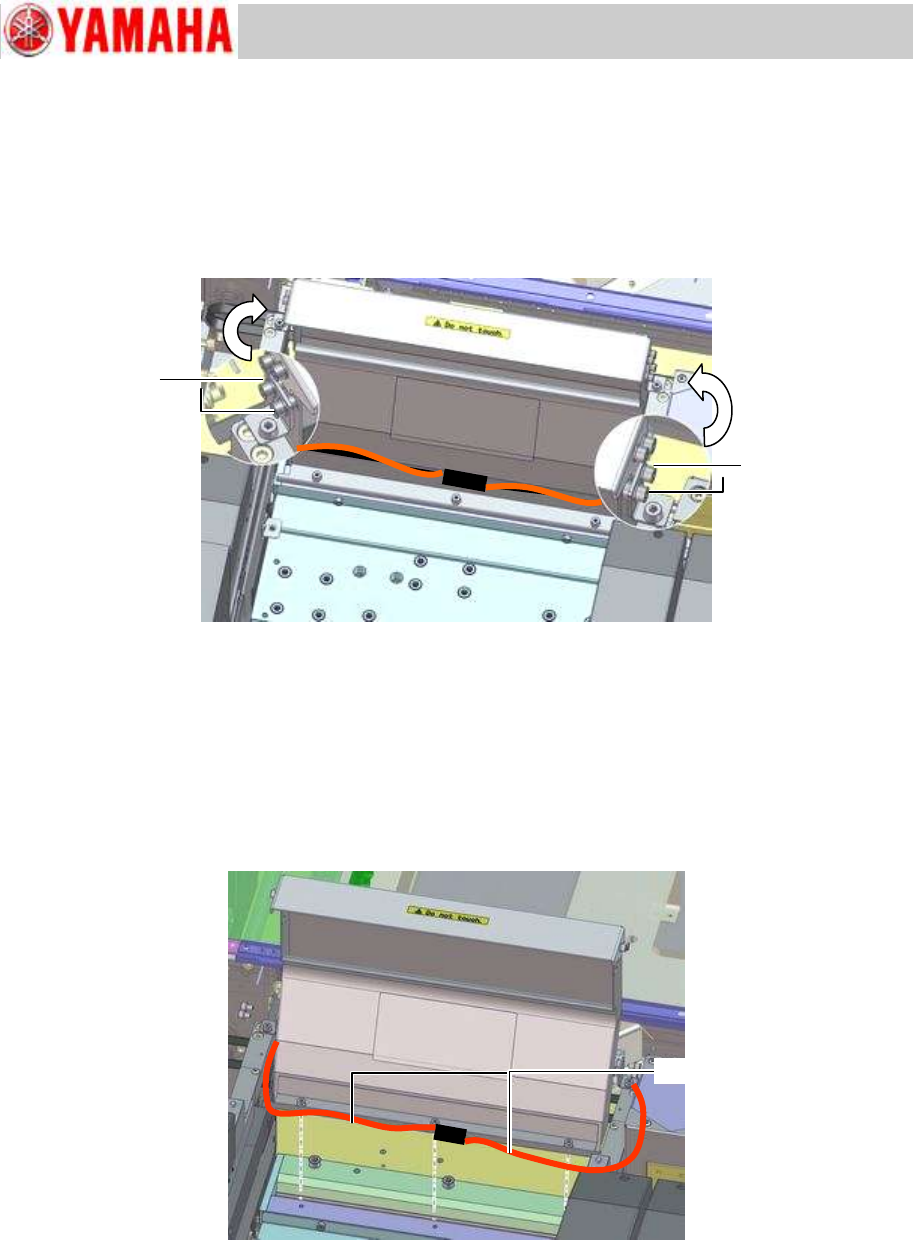

Step 4 Remove the tape guide slope by removing its fixing screws on the right and left sides

of it.

Note:

A washer is used on each fixing screw. Be careful not to lose the washer when removing the

fixing screw.

Figure 33

Step 5 Remove the air hose bypass of the tape guide slope.

Remove the air hose bypass from the bulkhead quick joint at the center of the tape guide

slope.

Note:

The previous-design machines do not have the air hose bypass. Skip this step for the

machines.

Figure 34

Fixing screws

Air hose bypass

Service Engineer

Service Information

SI0907002E-003=YS machine’s tape cutter cleaning and lubrication

27/63

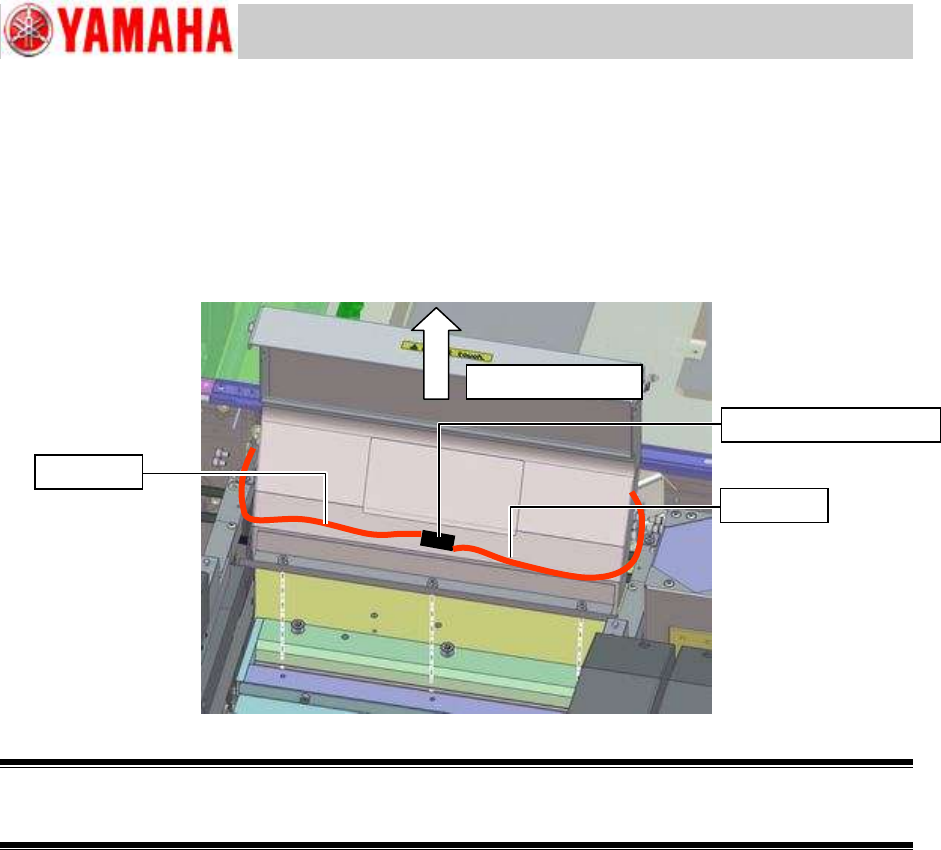

Step 6 Remove the tape guide slope by removing the screws that fasten the tape guide slope

to the cutter unit.

Note:

A washer is used on each fixing screw. Be careful not to lose the washer when removing the

fixing screw.

Figure 35

Warning:

When the tape guide slope is removed, the cutter blade inside will be exposed. Please be extremely

careful not to get injured during the work.

Tape guide slope

Bulkhead quick joint

Air hose
