Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
17/63
Step 7 Remove the six screws that fasten the feeder bank.
Remove the six (6) screws. (3 each on both sides.)
Note:
The feeder bank fixing screws are tightened to a very high torque. When you loosen the
screws with a wrench, make sure there is nothing that interferes with the handle of the tool in
the work area.
Figure 14
Step 8 Dismount the feeder bank from the machine by two persons.
Carefully lift the feeder bank upwards until the positioning pins on the machine are detached
from the feeder bank.
Caution:
The feeder bank with 60 feeder positions weighs about 30 kg. To ensure safety, be sure to carry the
feeder bank by two persons, NEVER by one person.
Figure 15
Note:
When you dismount and place the feeder bank somewhere temporarily, be careful that the
harnesses do not get caught under the feeder bank.
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
18/63

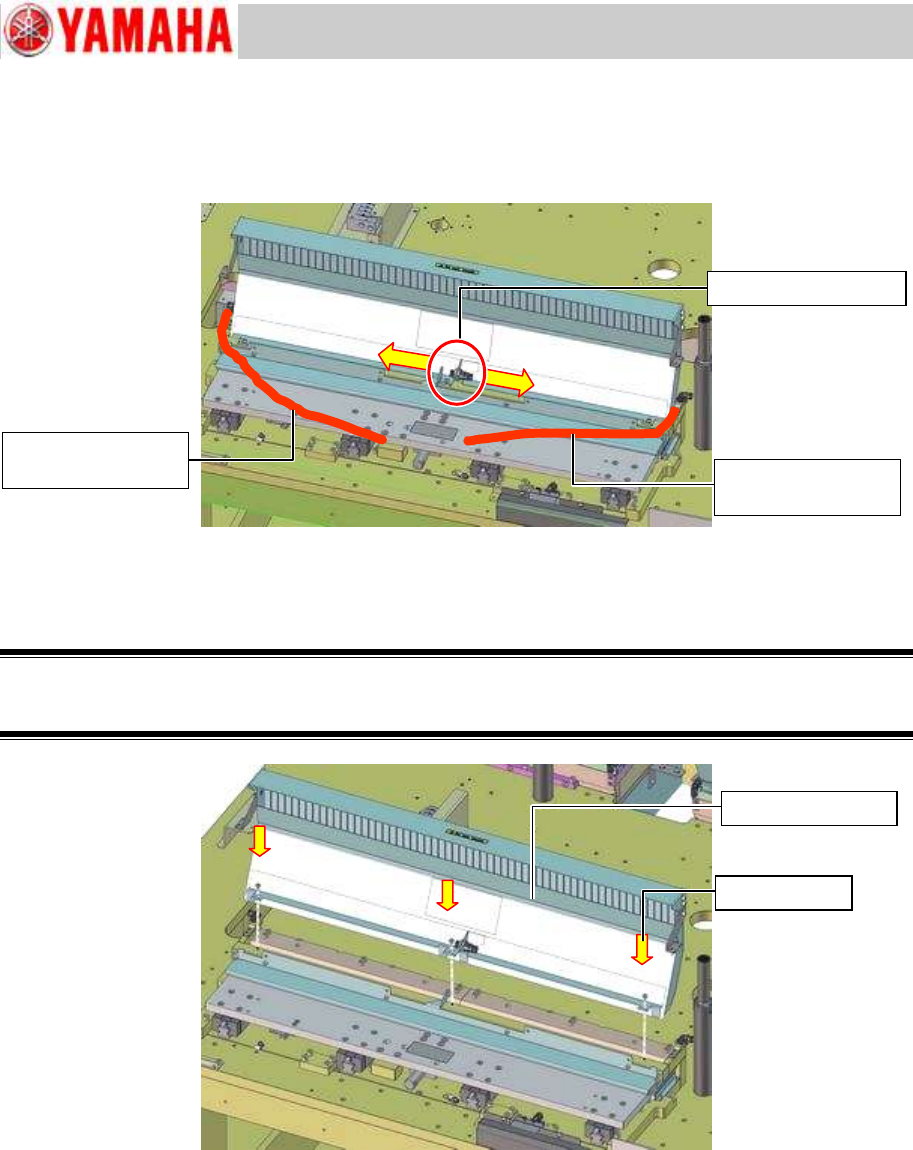

Step 9 Disconnect the air hoses used for driving the tape cutter at each quick joint.
Disconnect the air hoses from the bulkhead quick joint at the center of the tape cutter.
Figure 16
Step 10 Remove the tape guide slope Assy. from the machine by removing its three (3) fixing
screws.
Warning:
When the tape guide slope is removed, the cutter blade inside will be exposed. Please be extremely
careful when working on the tape cutter to avoid getting injured.
Figure 17
Bulkhead quick joint
Air hose for driving
the tape cutter
Air hose for driving
the tape cutter
Tape guide slope
Fixing screw
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
19/63
3.4.2 Remove the Fixed feeder bank with 24 feeder positions
Note:
For YS100 and YS88 machines equipped with an sATS, disconnect the sATS from the
machine first for the better workability.
For further information, see Service Information “SI0911001E = How to install the sATS/dYTF
for YS100, YS88, YG100R and YG88R machines”.
Step 1 Remove the CE covers on the right and left side of the feeder bank.
Figure 18
Step 2 Remove the center cover and its mount bracket at the center of the feeder bank.
Figure 19
Step 3 Remove the cover of the tape cutter driving valve.
Figure 20
Center cover
Center cover bracket
