Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
31/63
Step 4 Disconnect the air hose from the feeder bank at the quick joint.
Figure 42
Step 5 Remove the cover of the tape cutter driving valve.
Figure 43
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
32/63

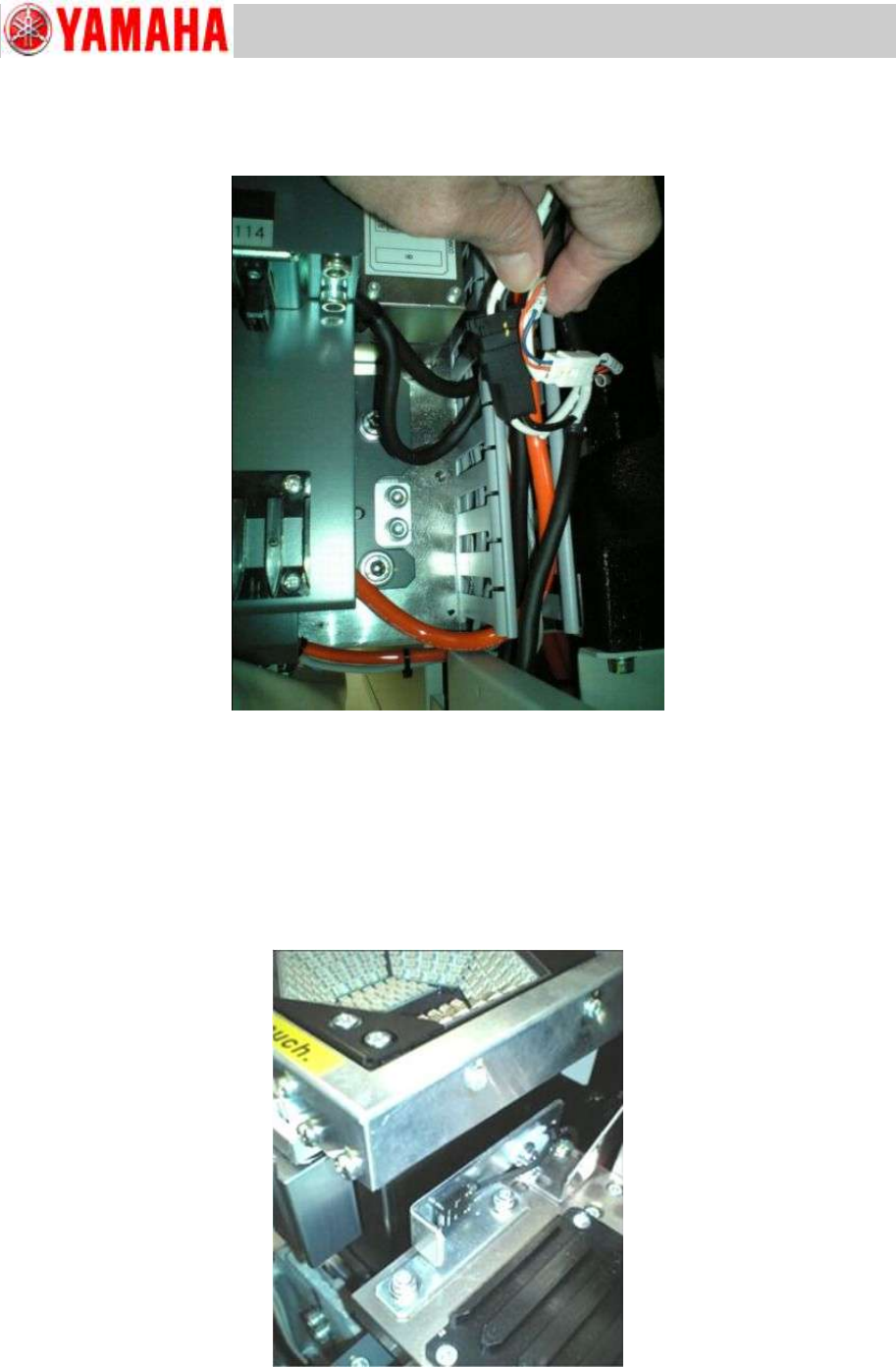

Step 6 Disconnect harnesses from the right and left ends of the feeder bank at each
connector.
Figure 44
Step 7 Remove the feeder floating detection sensor on the feeder bank.
Remove the sensor (Receiver side) together with the bracket.
The sensor harness is attached on the back side of the feeder bank with cable ties. Cut off the
cable ties and free the harness.
Make sure that the harness is NOT secured on the back side of the feeder bank before
removing the feeder bank from the machine.
Figure 45
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
33/63

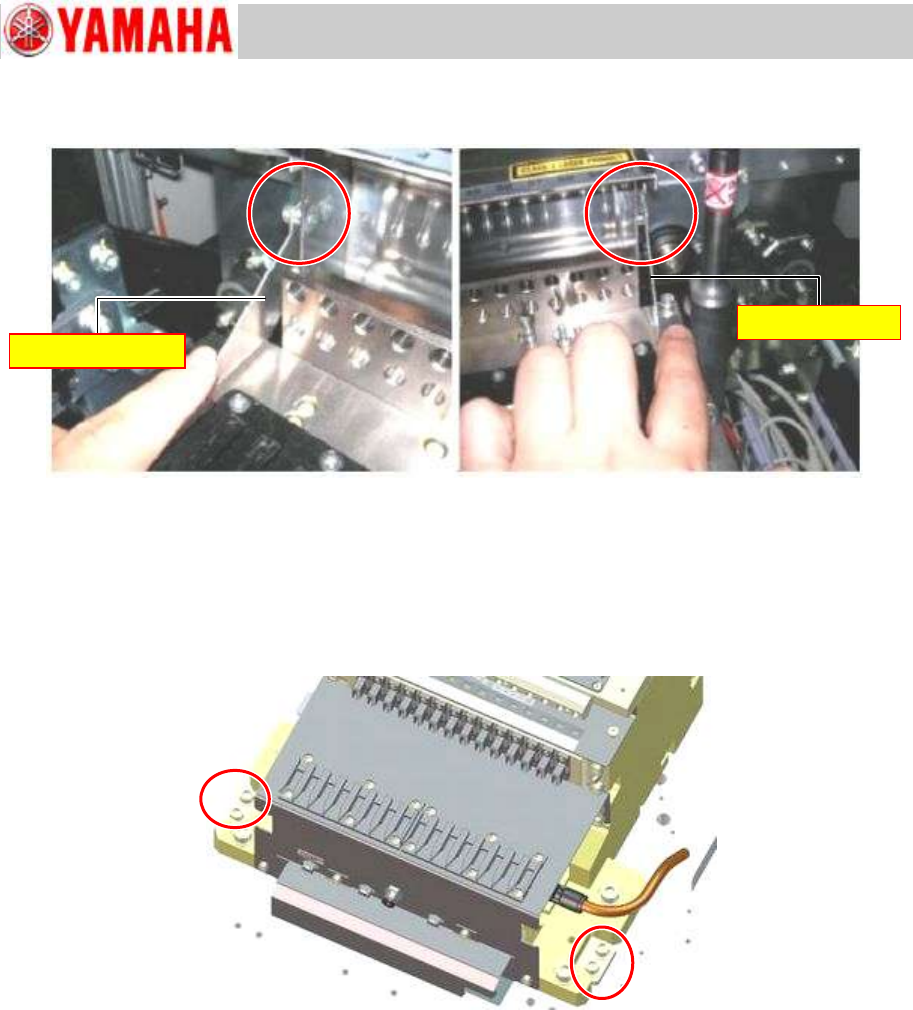

Step 8 Remove the plates that connect the tape guide slope and the feeder bank.
Figure 46
Step 9 Make sure that the feeder bank positioning plates (where positioning pins are located)
are secured properly. If loose, secure them properly.
Note:
If the feeder bank positioning plates are loose, when you reassemble the removed feeder
bank later on, you cannot position it properly.
Figure 47
Step 10 Remove the screws that fasten the feeder bank to the machine.
Remove the six screws that fasten each feeder bank (three each on the both sides).
Note:
The feeder bank fixing screws are tightened with high torque. When you loosen the screws
with a wrench, make sure there is nothing that interferes with the handle of the tool in the work
area.
Remove this plate.
Remove this plate.
