2 Improvements made to the Tape cutter section
The tape cutter and the related parts have been modified to improve safety and the maintainability.
See Service Information “SI1109006E = YS series_Retrofitting with tape cutter related parts” for
the history of the modification of the tape cutter section.
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
9/63

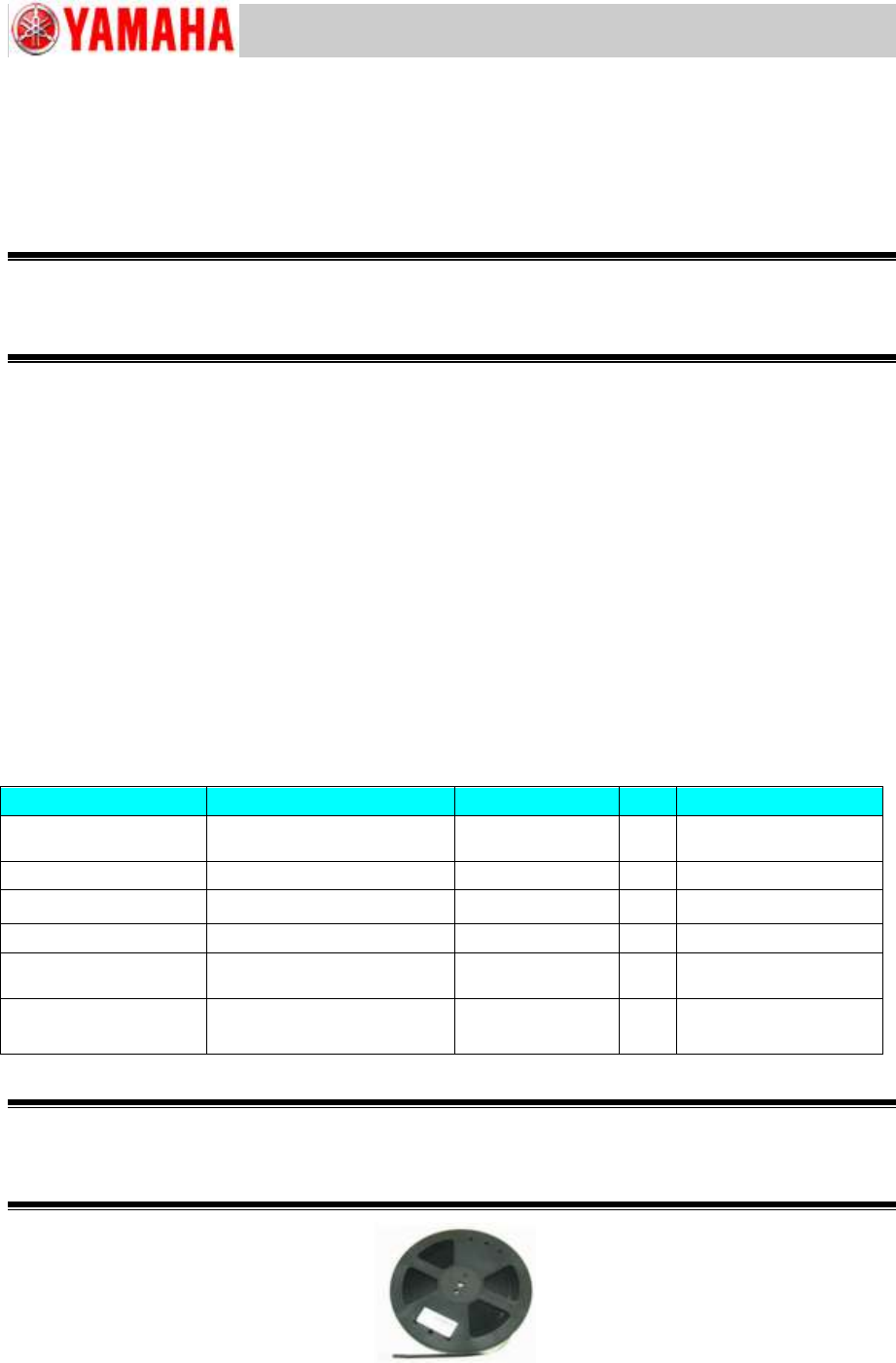

3 Clean and lubricate the tape cutter
To keep the tape cutter in optimum operating conditions and ensure a long period of use, periodic
maintenance of cleaning and lubrication is necessary, as the sliding parts wear out and the tape
debris clogs the part. In normal usage of the machine, yearly maintenance of the tape cutter is
recommended.
Caution:
Please leave the maintenance of the tape cutter to YAMAHA service personnel. The maintenance
involves risk of serious injuries and requires the person to perform complicated adjustments after
reassembling the feeder bank or the tape guide slope removed for the tape cutter maintenance.
3.1 Preparation
Required items
YAMAHA standard tool set
T hex wrenches (For M8, M6 and M5)
Thickness gauges (0.01, 0.02, 0.03 and 0.04 mm), same sized shims can substitute.
Cut-resistant gloves (For working on the cutter blade.)
Isopropyl alcohol
Used toothbrush for cleaning the cutter blades
Bamboo or plastic scraper. Metallic scraper is NOT allowed.
Cleaning cloths or paper
Brush for applying grease
Domestic vacuum cleaner
Item
Part name
Part number
Qty
Remarks
Pickup position
adjustment jig
MASTER FEEDER ASSY
KHJ-MD4A0-02
1
It is recommended to
prepare 2 sets.
Grease gun set
GREASE GUN SET
KHT-M3852-00
1
Padlock set
PADLOCK ASSY
KHY-M8850-00
1
Lithium grease
GREASE PACK (NSL)
K48-M3856-00
1
NSK grease (80g)
AZ turbine oil
SYRING, OIL
KV8-M8870-00
1
Oil syringe applicator
for nozzle holder
Test emboss tape for
tape cutter performance
TEST TAPE, CUTTER
KLW-M8825-00
1
13 inch emboss carrier
tape (Thickness: 0.18)
Table 1
Important:
Make sure to use the test emboss tape for tape cutter performance (TEST TAPE, CUTTER /
KLW-M8825-00).
If you cannot prepare the test tape, use a 0.18mm thick emboss tape as a substitute.
Figure 6
TEST TAPE, CUTTER
KLW-M8825-00
