Step 2 Remove the safety CE covers on the back side of the machine.
1) Remove the CE cover on the lateral side of the sATSII.
2) Remove the CE cover on the right side of the feeder bank.

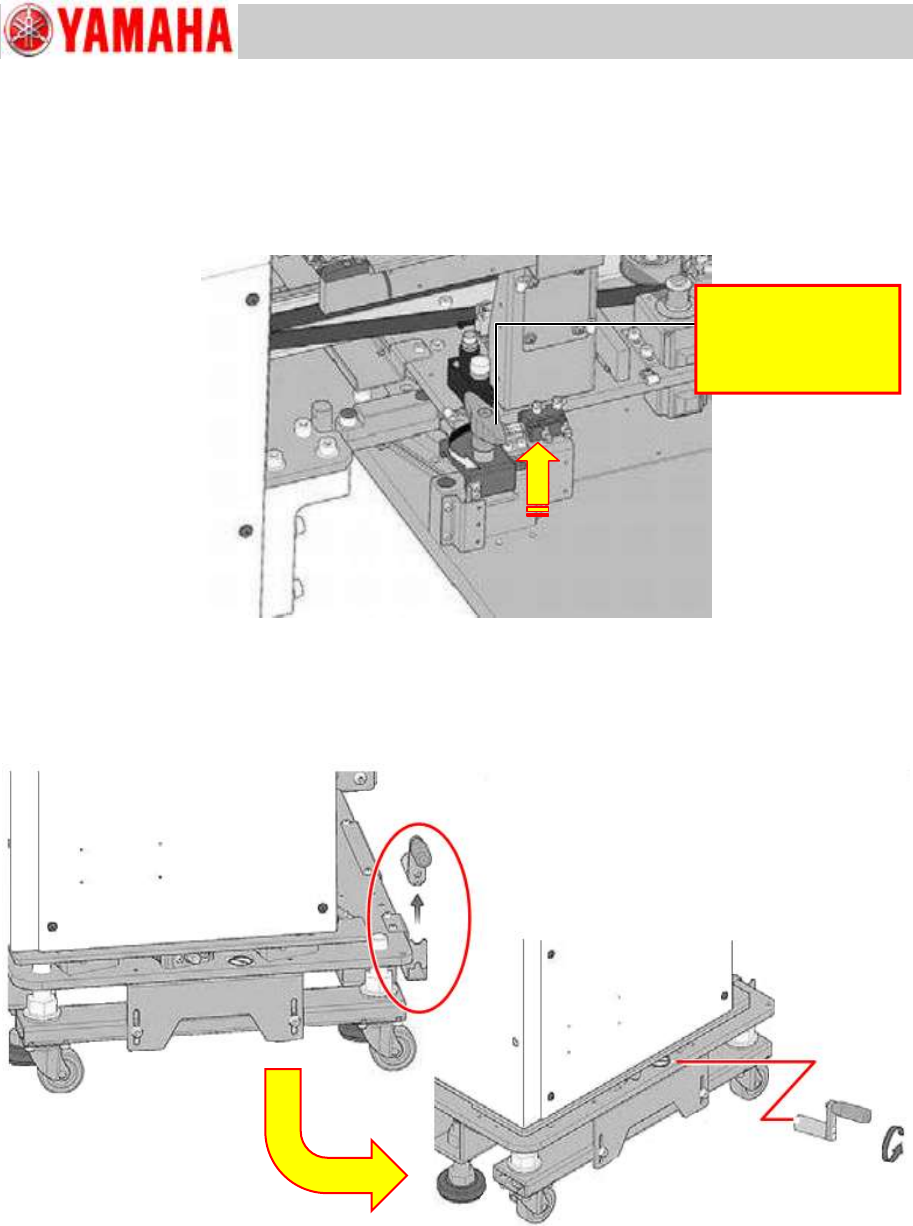

Figure 38
Step 3 Unclamp the sATSII and slide it to its maintenance position.
1) Remove the fixing screws of the sATSII (two locations) with a hex wrench as shown in the
figure below.
Note:
Some sATSIIs are fastened with four (4) screws when shipped from the factory (with two more
screws on the opposite side). In this case, remove them as well
Be careful not to lose the removes screws as they will be used again when clamping the
sATSII later on.
Figure 39
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
30/63
2) Unclamp the sATSII by rotating the clamp handle counterclockwise by six (6) turns.
Note:
Do not turn the clamp handle more than the specified number of times. Otherwise the handle
will come off.
Figure 40
3) Attach the sATSII sliding handle to sATSII.
4) Rotate the handle counterclockwise to move the sATSII to its maintenance position.
Figure 41
Rotate the clamp
handle
counterclockwise by
six turns.
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
31/63
Step 4 Disconnect the air hose from the feeder bank at the quick joint.

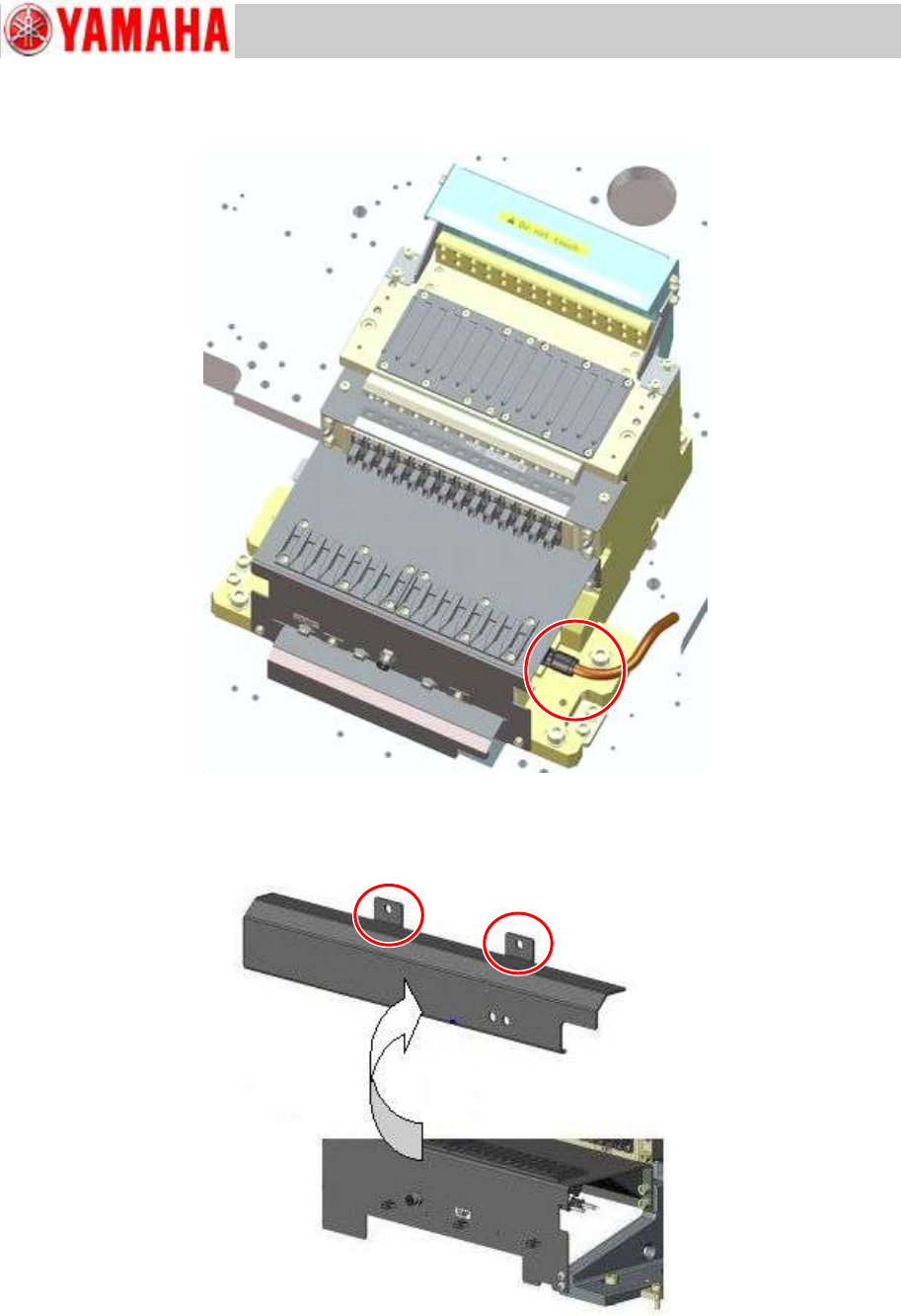

Figure 42
Step 5 Remove the cover of the tape cutter driving valve.
Figure 43
