Service Engineer Service Information SI0907002E - 003 = YS machine’s tape cu tter cleaning and lubrication 35 / 63 Figure 49
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
34/63
Step 11 Dismount the feeder bank from the machine.
Carefully lift the feeder bank upward until the positioning pins on the machine are detached
from the feeder bank.
Note:
When you dismount and place the feeder bank somewhere temporarily, be careful that the
harnesses do not get caught under the feeder bank.
Figure 48
Step 12 Disconnect the air hose bypass for driving the tape cutter from the quick joint in the
center.
Fixing screws
Fixing screws
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
35/63
Figure 49
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
36/63

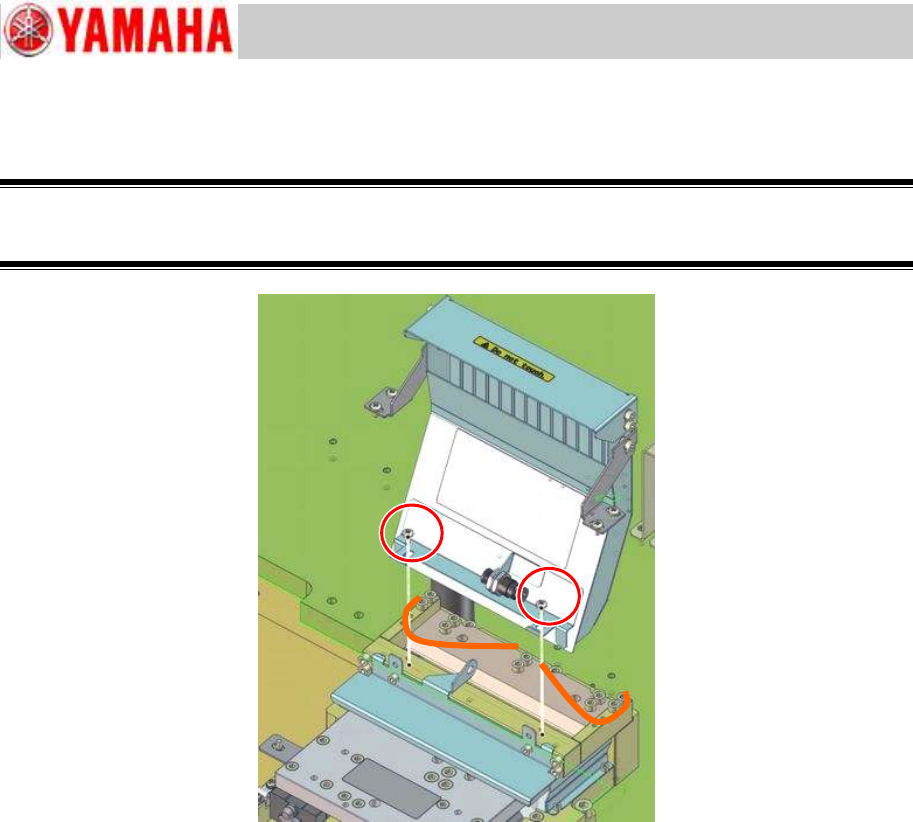

Step 13 Remove the tape guide slope Assy. from the machine by removing its three (3) fixing
screws at the front side, lower part of the tape guide.
Warning:
When the tape guide slope is removed, the cutter blade inside will be exposed. Please be extremely
careful when working on the tape cutter to avoid getting injured.
Figure 50
