Service Engineer Service Information SI0907002E - 003 = YS machine’s tape cu tter cleaning and lubrication 16 / 63 Figure 13
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
15/63

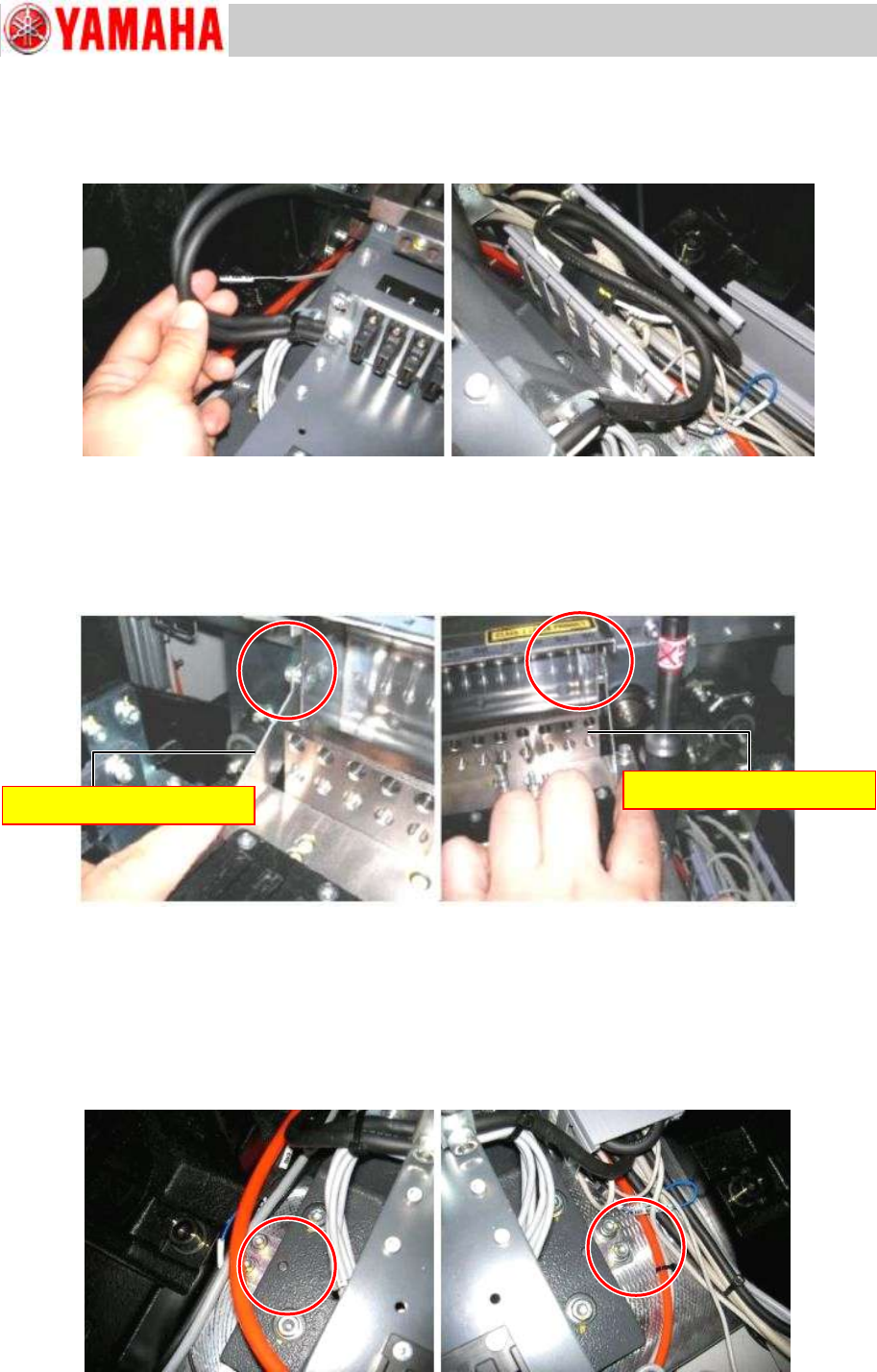

Step 4 Disconnect the harnesses of the feeder bank at each connector.
Draw out the disconnected harnesses to the feeder bank side.
Figure 11
Step 5 Remove the plates fastening the tape guide slope to the feeder bank.
Note:
The screw positions are different between the old type tape guide slope and the new one.
Figure 12
Step 6 Check that the feeder bank positioning plates (where a positioning pins are located)
are securely fastened. If loose, fasten them securely.
Caution:
If the feeder bank positioning plates are loose, when you reassemble the removed feeder
bank later on, you cannot position it properly.
Remove the fastening plate.
Remove the fastening plate.
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
16/63
Figure 13
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
17/63

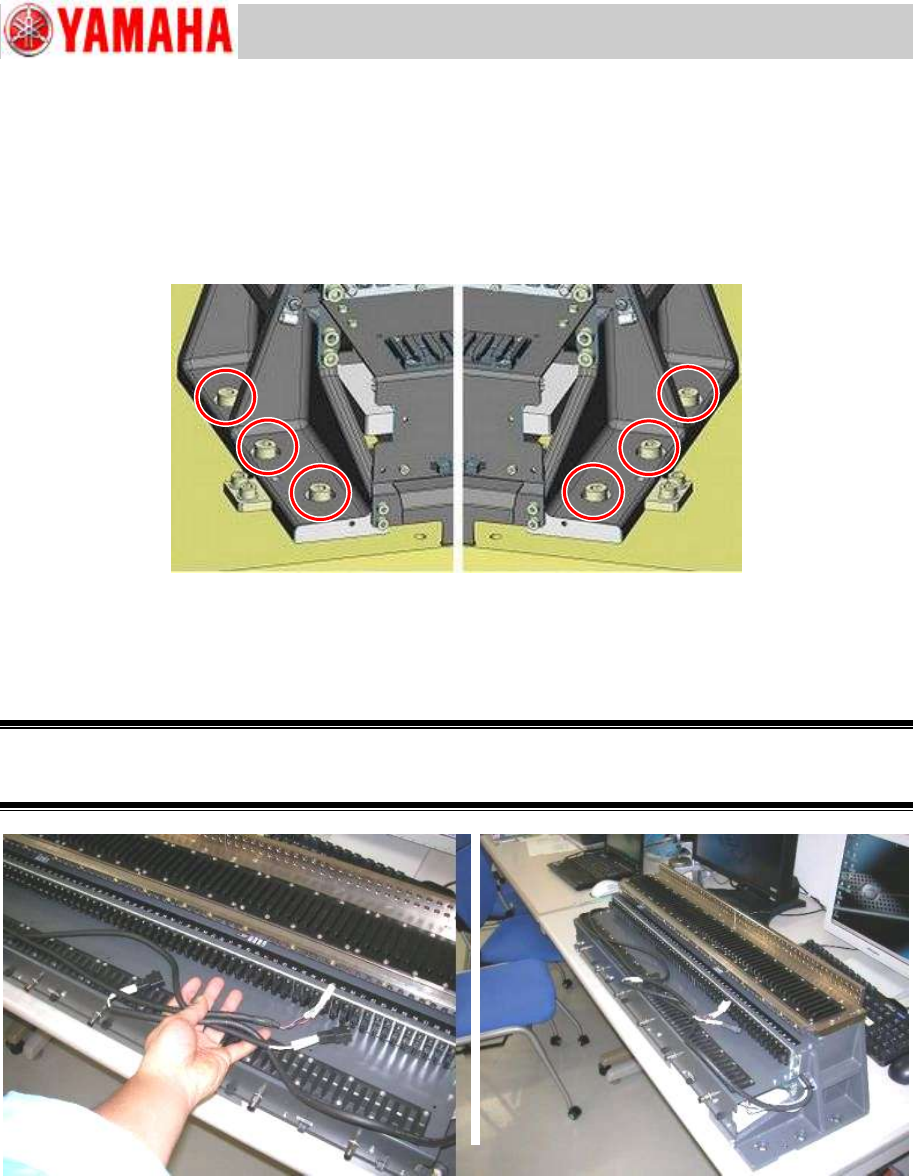

Step 7 Remove the six screws that fasten the feeder bank.
Remove the six (6) screws. (3 each on both sides.)
Note:
The feeder bank fixing screws are tightened to a very high torque. When you loosen the
screws with a wrench, make sure there is nothing that interferes with the handle of the tool in
the work area.
Figure 14
Step 8 Dismount the feeder bank from the machine by two persons.
Carefully lift the feeder bank upwards until the positioning pins on the machine are detached
from the feeder bank.
Caution:
The feeder bank with 60 feeder positions weighs about 30 kg. To ensure safety, be sure to carry the
feeder bank by two persons, NEVER by one person.
Figure 15
Note:
When you dismount and place the feeder bank somewhere temporarily, be careful that the
harnesses do not get caught under the feeder bank.
