Service Engineer Service Information SI0907002E - 003 = YS machine’s tape cu tter cleaning and lubrication 7/ 63  T urn OFF the air supply/shut -off switch of the tape cutter (light blue colo red) and release the residu…

100%1 / 63
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
6/63
1.4 Use the Lock-out padlock
General description
When a service engineer performs maintenance for the tape cutter or other parts on the machine,
a bystander may accidentally operate the air supply/shut-off switch, causing the tape cutter or
pneumatic components to be activated and possibly injuring the service engineer.
To prevent this, lock-out padlock is available for the operator to padlock the air supply/shut-off
switch before starting the service work.
Turn the air supply/shut-off switch to shut off the main air supply
Step 1 Turn the air supply/shut-off switch clockwise to shut off the main air supply.
Step 2 Padlock the air supply/shut-off switch using the dedicated holes (see “Note” below).
Step 3 Just to make sure, disconnect the air supply hose.
Note:
Depending on the model, layout of the padlock (keyhole location) and the air supply/shut-off switch vary.
Verify their layout before using the padlock.

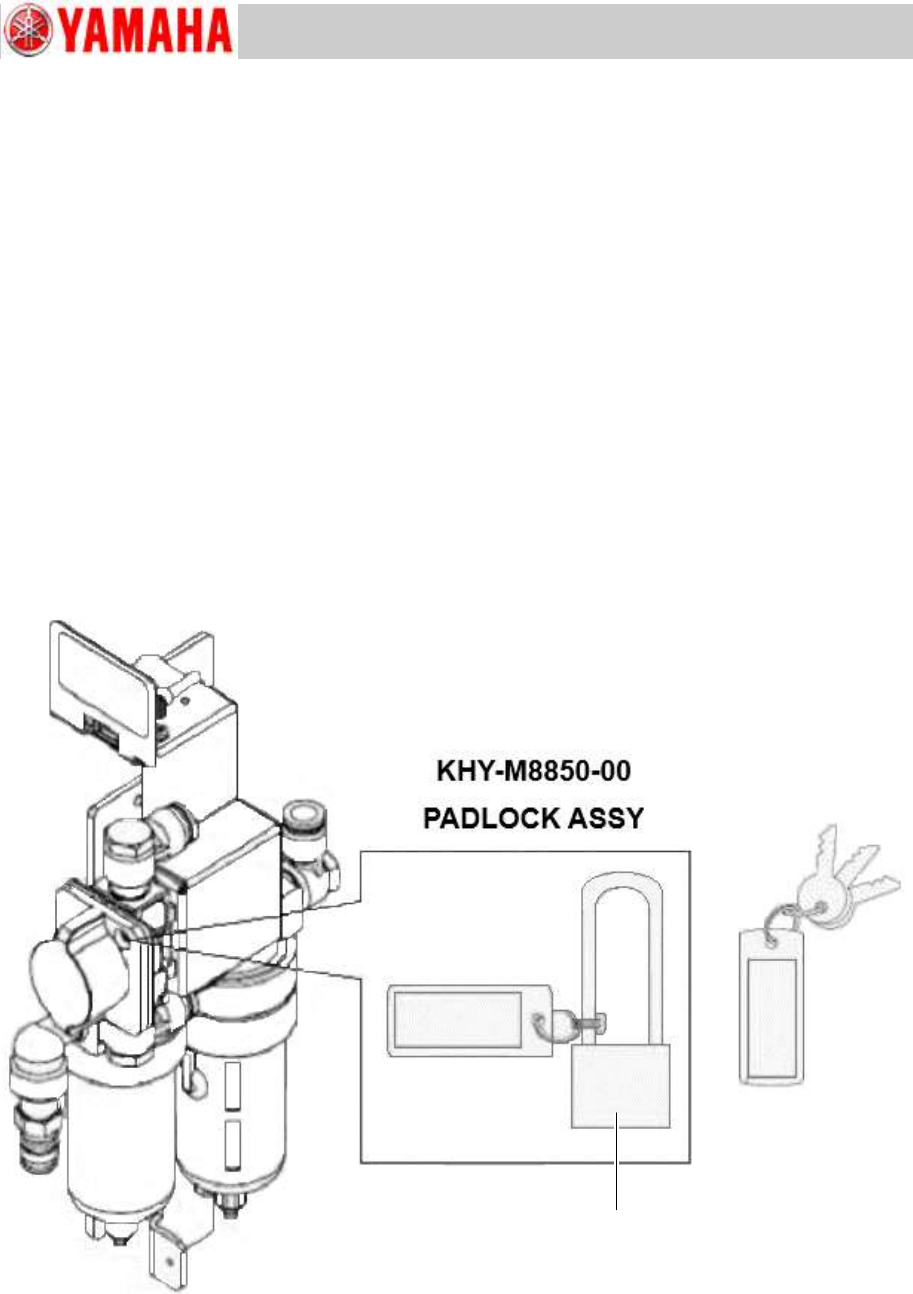

Figure 4
Padlock
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
7/63
Turn OFF the air supply/shut-off switch of the tape cutter (light blue colored) and release
the residual pressure
Note:
If there is residual pressure, it is released.

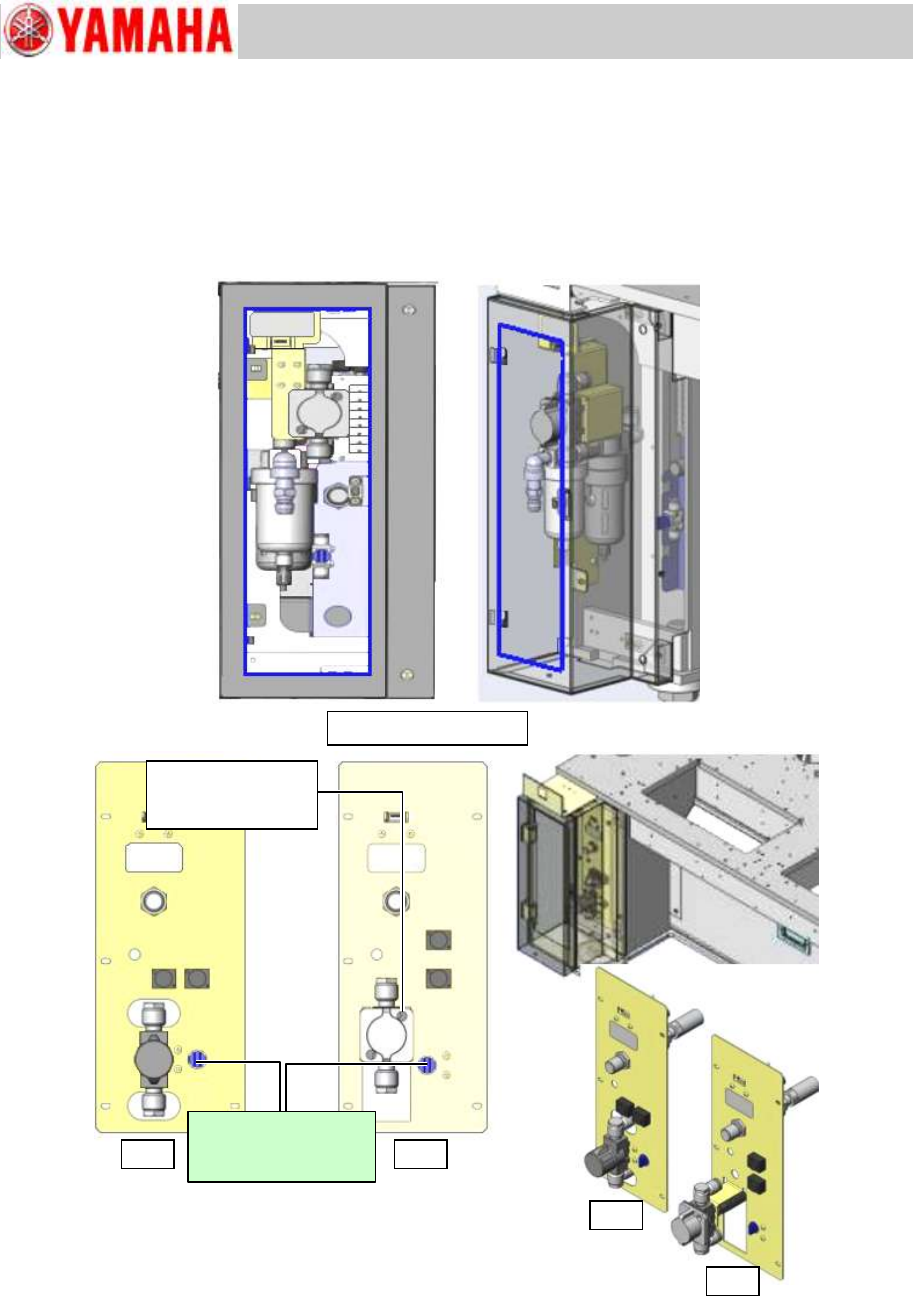

Figure 5
Keyhole for the
lock-out padlock
Old
New
Tape cutter air
supply/shut-off valve
Old
New
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
8/63
2 Improvements made to the Tape cutter section
The tape cutter and the related parts have been modified to improve safety and the maintainability.
See Service Information “SI1109006E = YS series_Retrofitting with tape cutter related parts” for
the history of the modification of the tape cutter section.
