Service Engineer Service Information SI0907002E - 003 = YS machine’s tape cu tter cleaning and lubrication 37 / 63 3. 5 Clean and lubricate the tape cut t er 3. 5 .1 Tape cutter for the fixed feeder bank with 60 fee der …
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
36/63
Step 13 Remove the tape guide slope Assy. from the machine by removing its three (3) fixing
screws at the front side, lower part of the tape guide.
Warning:
When the tape guide slope is removed, the cutter blade inside will be exposed. Please be extremely
careful when working on the tape cutter to avoid getting injured.
Figure 50
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
37/63
3.5 Clean and lubricate the tape cutter
3.5.1 Tape cutter for the fixed feeder bank with 60 feeder positions
Step 1 Clean the following parts of the tape cutter before lubricating it.
Linear guide bearing and the linear guide rail
Although the cleanable areas are limited, remove old grease with a scraper and then clean
the area with cloths.
Cutter blades
Warning:
Be sure to wear cut-resistant leather gloves when cleaning the cutter blade. Otherwise you may get
injured.
Dip a used toothbrush or a brush in isopropyl alcohol and clean the cutter blade. Scrape off
the sticky dirt with a scraper. Then wipe the blade with cloths or cleaning paper soaked with
isopropyl alcohol.
Area around the tape cutter
Remove the dust or fallen objects such as components with a vacuum cleaner.
Step 2 Check the condition of the cutter blades.
Check the cutter blades for chipping, wear and loosening of fixing screws.
Note:
Should there be any problem, blade replacement is required. If you have a spare blade set,
replace the blades. If not, explain the situation to the customer and be sure to replace the
blades soon.
Step 3 Check the clearance between the cutter blades.
Measure the clearance between the blades of the tape cutter (for the fixed feeder bank with
60/ 24/ 14 feeder positions) to see if it is appropriate. Make a note of the measured result on
the Check sheet.
Tip:
If the blade-to-blade clearances are improper, faulty conditions including premature blade
wear, inability to cut waste tapes, tape jamming or other may result. In this case, verify and
adjust the installation condition of the blades. See “SI1109005E = YS machine tape cutter
blade replacement” for the details.
Item
Specified value
Blade-to-blade clearance range
0.02 - 0.03mm
Table 3

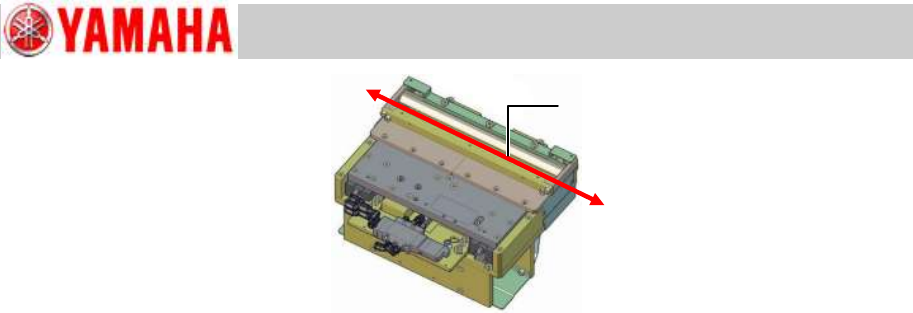

[Where to measure]
Measure across the entire blade:
Check that the 0.02mm shim can be
inserted but NOT the 0.04mm shim.
Service Engineer
Service Information
SI0907002E-003=YS machine’s tape cutter cleaning and lubrication
38/63
Figure 51
