XP-142E Configuration
Parts Placement System
Placing Head
The placing head is equipped with Z, Q, and R-axes servo motors, 12 noz-
zles, a mark camera, and a parts camera.
Vision System
Mark Camera
This camera reads the fiducial marks on panels being produced so that the
placement positions can be corrected.
Parts Camera
The parts camera is used to identify the shape and size of parts picked up by
the nozzles. The machine is equipped with a single CCD camera.
XP-142E
XP1MN206E
Parts mounting system XY-robot
Placing head
Fixed device table
Parts camera
Mark camera
Conveyor
Control panel
Control box
Servo box
MFU-X10E
Parts supply system
Vision system
Board conveyance
Electrical control system
Pneumatic control system
Chapter 1: Machine Configuration
TUT-XP142-1.1E
1-6 XP-142E Operator’s Guide
Parts Supply System

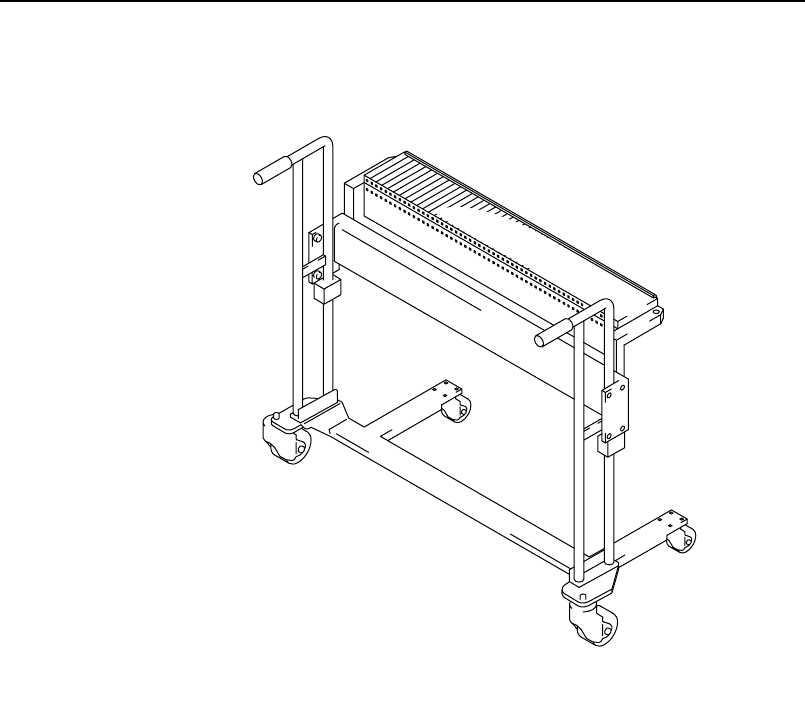

MFU-X10E (Multi Feeder Unit)
The MFU-X10E holds tape feeders, and is attached at the removable supply
side of the machine.
XP1MN205a
Chapter 1: Machine Configuration
TUT-XP142-1.1E
1-7XP-142E Operator’s Guide
