Attaching the MFU Procedure 1. Open the safety cover . 2. Slowly push the MFU into the machine to secure it. 3. At the [Main] screen, press [Manual Operation] then [ST AGE1 MFU Clamp] or [ST AGE2 MFU Clamp]. Press the ST…
Setting the Feeders
CP-6-series feeders are used on the machine. Refer to the separate CP feeder
maintenance manual regarding the procedure for setting parts.
<Explanation of the feeder stickers>
The sticker that is affixed to the side of each feeder is printed with a code
indicating the standards for that feeder.
Example: W D 08 04 - - - - -
W: Indicates that the feeder is a CP-6 feeder.
D: This indicates the feeder is a paper tape feeder while "E" represents an
embossed tape feeder.
08: This indicates that a tape with a width of 8 mm can be set on the
feeder.
04: This signifies that the pitch of the feeder is 4 mm.
Notes:
1. When setting feeders in the MFU, be sure that there are no objects (chip
fragments, etc.) between the feeder and the MFU. Remove any foreign
objects from the MFU grooves and from the bottom face of the feeder.
2. Verify that the tape leaf is not deformed.
3. Place the part tapes in their dedicated feeders. A part tape placed in the
wrong feeder may prevent the tape leaf from closing properly.

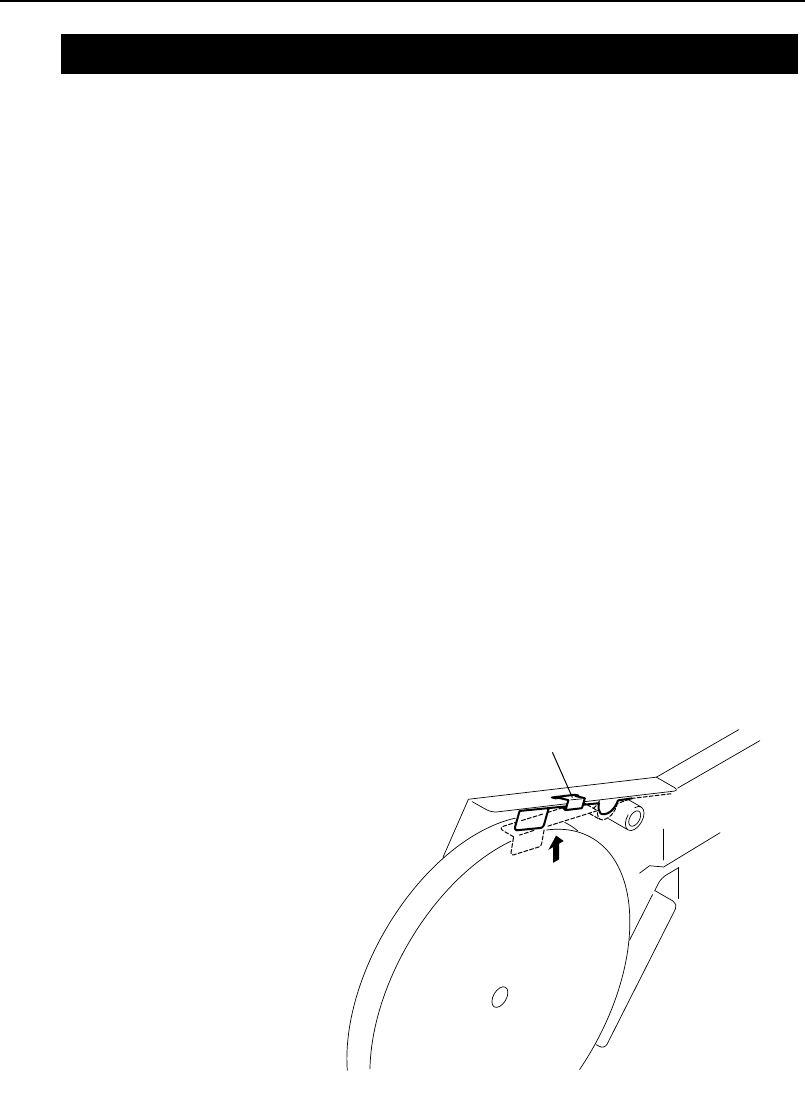

4. Hold the reel retainer up with a clip.
Clip
XP1T3001E
3.3 Part Settings
Chapter 3: Preparing for Production
TUT-XP142-1.1E
3-9XP-142E Operator’s Guide
Attaching the MFU
Procedure
1. Open the safety cover.
2. Slowly push the MFU into the machine to secure it.
3. At the [Main] screen, press [Manual Operation] then [STAGE1
MFU Clamp] or [STAGE2 MFU Clamp]. Press the START
button.
4. Close the safety cover.
Removing the MFU
Procedure
1. At the [Main] screen, press [Manual Operation] then [Retract
Head]. Press the START button.
2. At the [Main] screen, press [Manual Operation] then [STAGE1
MFU Unclamp] or [STAGE2 MFU Unclamp]. Press the START
button.
3. Open the safety cover.
4. Slowly pull the MFU away from the machine to remove it.
Chapter 3: Preparing for Production
TUT-XP142-1.1E
3-10 XP-142E Operator’s Guide
Nozzle Replacement
Set nozzles in the placing head. The placing head holds 12 nozzles (No.1 to
No.12). Refer to the nozzle data in the production recipe to verify that the
correct nozzles are being set.
Procedure
1. At the [Main] screen, press [Manual Operation], then [Move to
nozzle change position] to display the nozzle change position
dialog box.
2. Input the position to move the head to, and push START to
move the head to the nozzle change position. The MFU will
automatically unclamp (if the machine does not have fixed
devices).

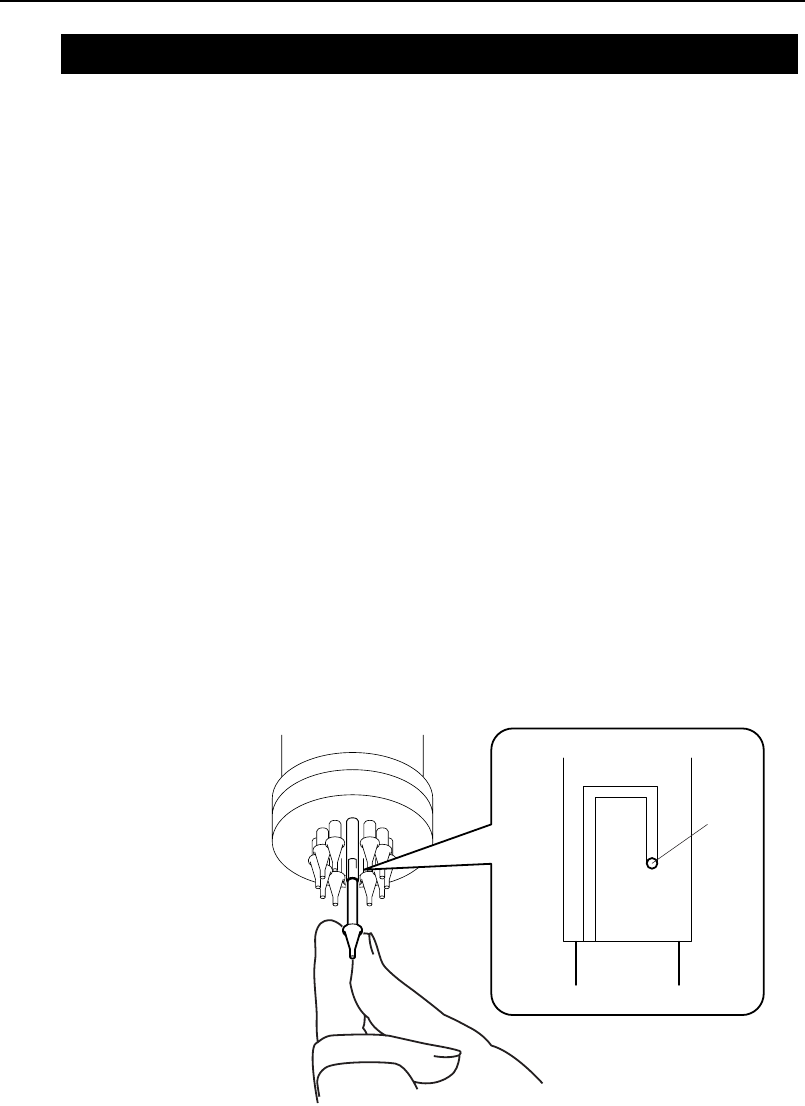

3. Push the nozzle up, rotate to release, and remove. Push in
the new nozzle and rotate to lock into position.
XP1T3002Ea
Pin
