4. At the [Main] screen, press [Production] and select [Automatic] to enable the ST ART button. Pushing ST ART begins produc- tion and displays the [Automatic] screen. Note: The machine information (production quantity ,…

With the necessary checks complete, production can now commence. Either

the auto operation or step operation mode must be used to operate the

machine and place parts on a panel. Rather than directly entering auto oper-

ation, it is best to use the step operation mode to operate the machine one

cycle at a time for several cycles to check that parts are being placed correct-

ly on the panel. If there are no problems then switch to auto operation at that

time.

Step Operation

Procedure

1. At the [Main] screen, press [Maintenance A] then [Operation

Settings] to display the [Operation Settings] page.

2. Select [Step] at the left of the screen where the [Production

Mode] field is displayed.

3. Press [Close] to return to the [Main] screen.

Automatic Operation

Procedure

1. At the [Main] screen, press [Maintenance A] then [Operation

Settings] to display the [Operation Settings] page.

2. Select [Automatic] at the left of the screen where the

[Production Mode] field is displayed.

3. Press [Close] to return to the [Main] screen.

4.2 Starting Production

Chapter 4: Starting Production

TUT-XP142-1.1E

4-3XP-142E Operator’s Guide

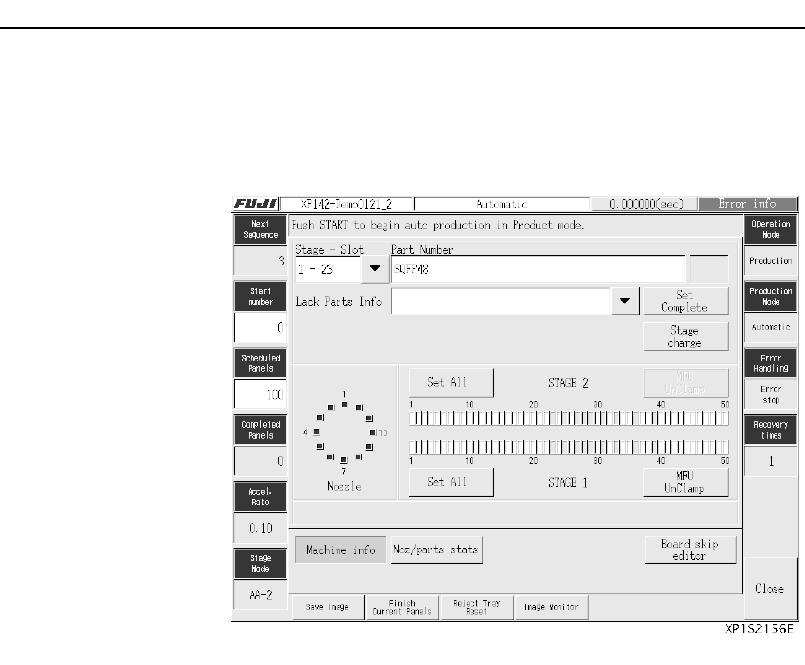

4. At the [Main] screen, press [Production] and select [Automatic]

to enable the START button. Pushing START begins produc-

tion and displays the [Automatic] screen.

Note: The machine information (production quantity, production mode, parts,

nozzle, stage, etc.) explained in Chapter 3 “Preparing for Production”

can be checked and edited at the [Automatic] screen. The display can

be changed to the vision monitor if necessary. The log of recoveries

from emergency stop errors, such as parts out, and statistical informa-

tion for problem nozzles or slots, can also be viewed from the

[Automatic] screen.

Chapter 4: Starting Production

TUT-XP142-1.1E

4-4 XP-142E Operator’s Guide
