序号 料号 部品名称 数量 规格 备注 148 NB16807102AA SPRING 4 ASSEMBLED LENGTH-180MM 149 NB16807103AA BRACKET 1 150 NB16807104AA HOOK 8 151 NB16807105AA BRACKET 1 152 NB16807106AA SPRING 1 153 NB16807107AA SPRING 1 154 NB168D1517AA WASH…
7

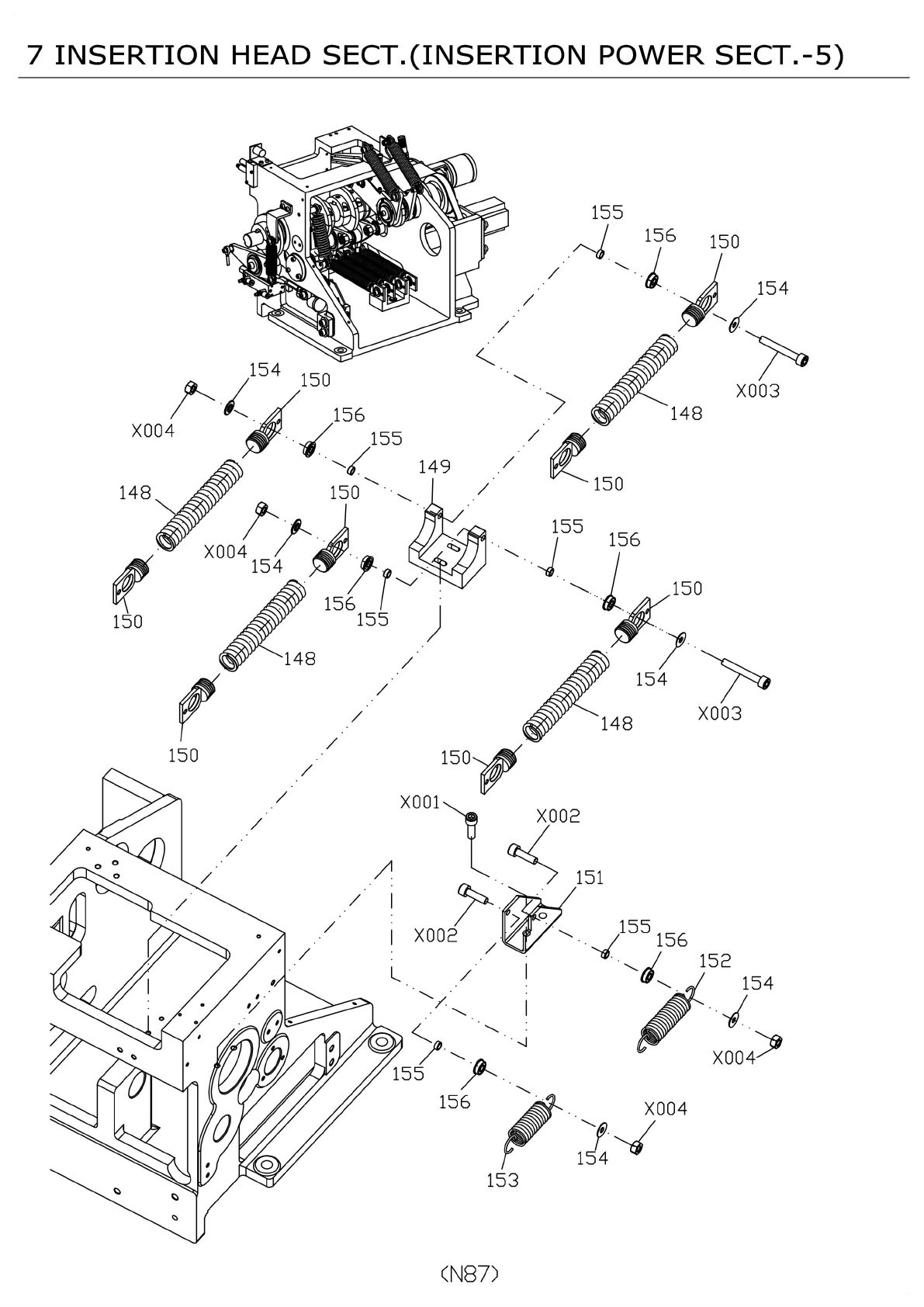

INSERTION
HEAD
SECT.
(INSERTION
POWER
SECT.-5)
(N87)
序号 料号 部品名称 数量 规格 备注
148 NB16807102AA SPRING 4 ASSEMBLED LENGTH-180MM
149 NB16807103AA BRACKET 1
150 NB16807104AA HOOK 8
151 NB16807105AA BRACKET 1
152 NB16807106AA SPRING 1
153 NB16807107AA SPRING 1
154 NB168D1517AA WASHER 6
155 NB168D0409AA COLLAR 6
156 NB168F696ZZAA BEARING 6 F696ZZIMC3PS2S
X001 NB168SH0516 SOKET HEAD CAP SCREW 2 M5-L16
X002 NB168SH0620 SOKET HEAD CAP SCREW 2 M6-L20
X003 NB168SH0640 SOKET HEAD CAP SCREW 2 M6-L40
X004 NB168HEX06 HEXAGON NUT 4 M6
7 INSERTION HEAD SECT.(INSERTION POWER SECT.-5)
N88
