NB168-配件手册.pdf - 第52页
序号 料号 部品名称 数量 规格 备注 A001 NB1680502 UNLOADER SECT NUIT 001 NB16805001AA PLATE 1 002 NB16805002AA SHAFT 2 003 NB16805003AA STOPPER 2 004 NB168B4075ZAA CYLINDER 1 CA2B40-75Z 005 NB168AS0208SAA SPEED CONTROLLER 2 AS2201F-02-…
5
UNLOADER
SECT.(P.C.B
SINGLE
RIGHT
TO
LEFT.-l)
(N35)
序号 料号 部品名称 数量 规格 备注
A001 NB1680502 UNLOADER SECT NUIT
001 NB16805001AA PLATE 1
002 NB16805002AA SHAFT 2
003 NB16805003AA STOPPER 2
004 NB168B4075ZAA CYLINDER 1 CA2B40-75Z
005 NB168AS0208SAA SPEED CONTROLLER 2 AS2201F-02-08S
006 NB16830LUUAA BUSHING 2 LMK30LUU
007 NB168JAF14AA FLOATING JOINT 1 JAF-40-14-150
008 NB168DCSM07AA BRACKET 2 DCSM-07
009 NB168DK21RAA SWITCH 2 DK-21R
X001 NB168SH0825 SOKET HEAD CAP SCREW 2 M8-L25
X002 NB168SH0830 SOKET HEAD CAP SCREW 6 M8-L30
X003 NB168SH0516 SOKET HEAD CAP SCREW 8 M5-L18
X004 NB168SH1270 SOKET HEAD CAP SCREW 2 M12-L70
X005 NB168SH1030 SOKET HEAD CAP SCREW 4 M10-L30
X006 NB168SW08 SPRING WASHER 8 8-12.5-H2
X007 NB168FG0821 FLAT WASHER 2 8-21-H3
X008 NB168SW06 SPRING WASHER 8 6-9.5-H1.6
X009 NB168FG1025 FLAT WASHER 4 10-25-H4
X010 NB168HEX12 HEXAGON NUT 2 M12

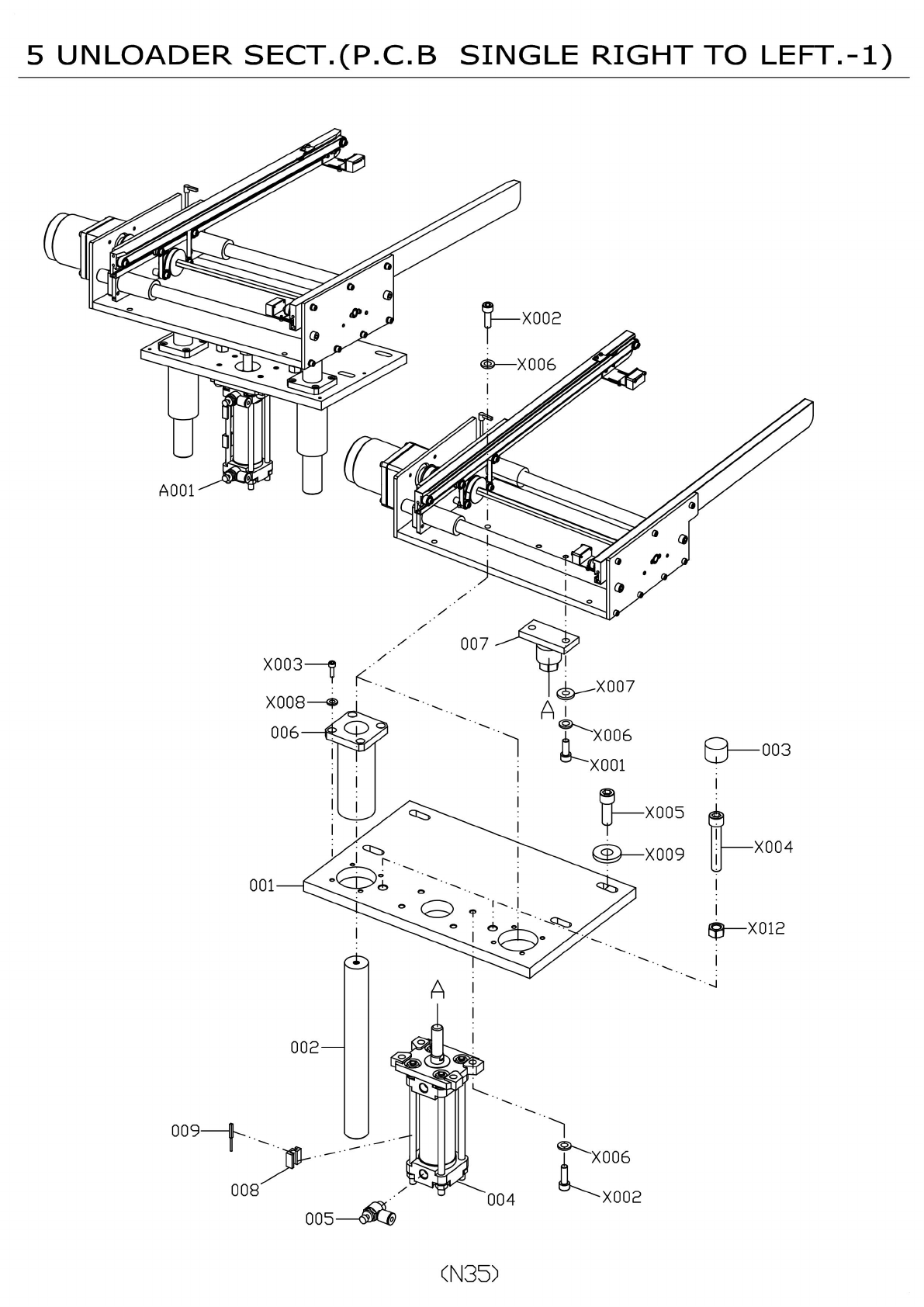

5 UNLOADER SECT.(P.C.B SINGLE RIGHT TO LEFT.-1)
N36

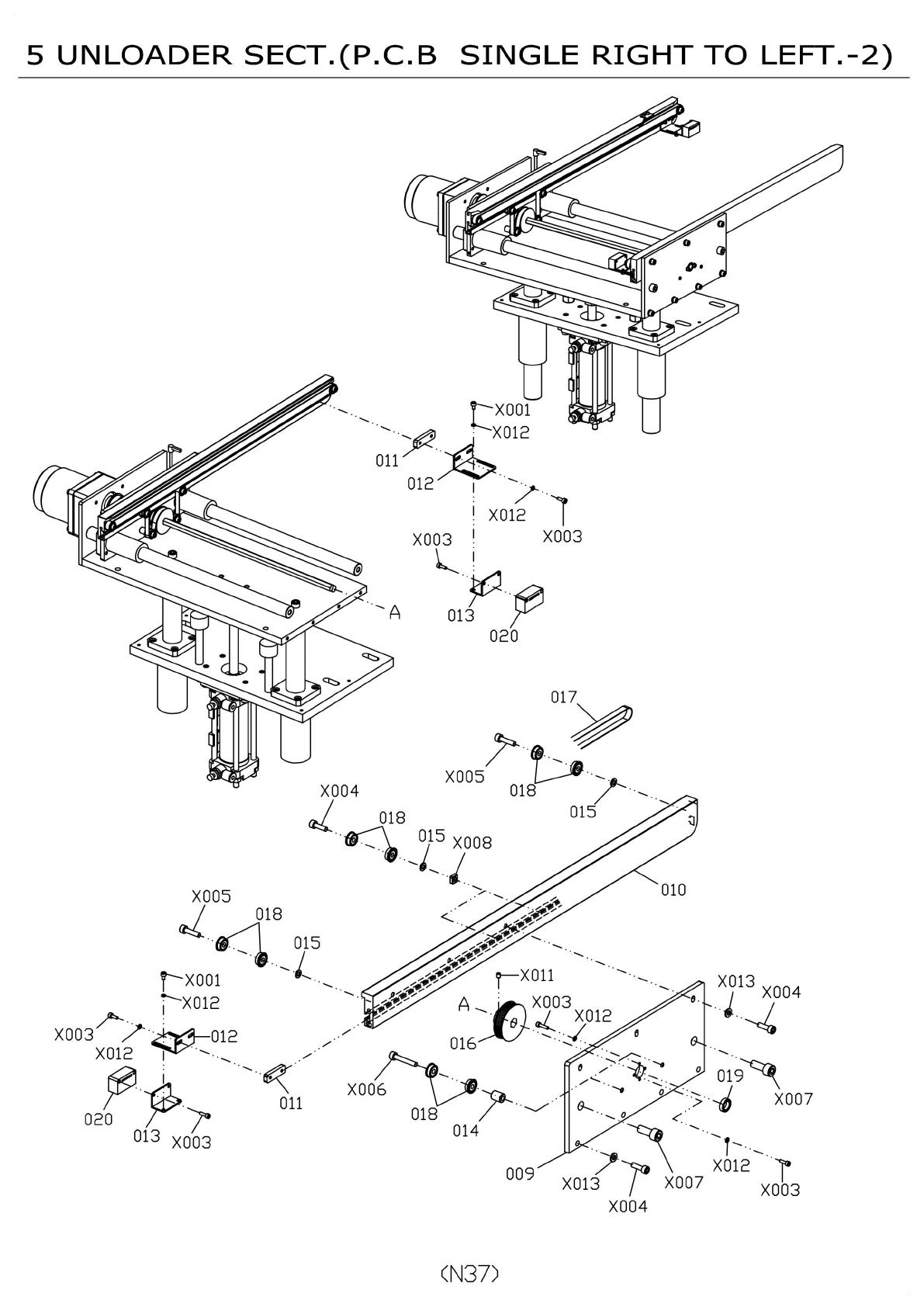

5
UNLOADER
SECT.(P.C.B
SINGLE
RIGHT
TO
LEFT.
-2)
0.
Oil
012
X003
013
020
017
X005
018
X004
015
018
010
X005
018
015
A
012
016
019
X006
X007
>
Oil
020
013
X003
009
X007
X013
X004
X003
X008
1
/
1
X012
X013
、/…
X004
卜、
X012
丁
X003
尸
X003
/
X012
X003
K/012
「
X001
LX012
018
014
「
X001
(N37)
