NB168-配件手册.pdf - 第171页

15 P.C.B POSITIONER SECT. (CLAMP PLATE. -2) A 8 o 1± 1X o A o o X 8 o o X 4 o o 9 o o 6 o o o X 4 , o (N155)

100%1 / 317
序号 料号 部品名称 数量 规格 备注
019 NB16815021AA BLOCK 1
002 NB16815022AA BLOCK 1
020 NB16815023AA BLOCK 1
021 NB16815024AA BLOCK 1
023 NB16815002AA PIN 2
025 NB16815028AB PLATE 2
026 NB16815017AA BLOCK 1
027 NB16815014AA GUIDE 1
028 NB16815015AB GUIDE 1
029 NB16815016AA GUIDE 1
030 NB168P0615AA PIN 2
031 NB168KJL4M5AA FITTING 2 KJL 04-M5
032 NB16815035AA SPRING 1
033 NB16815029AA BRACKET 1
034 NB16815030AB DOG FOR SENSOR 1
035 NB16815031AB DOG FOR SENSOR 1
036 NB16815032AA PIN 1
037 NB16815037AA SPRING 1
038 NB168CQSB12AA CYLINDER 2 CQSB12-5S
039 NB168SX670AA SENSOR 1 EE-SX670(GY7d)
040 NB16815039AA GUIDE 1
15 P.C.B POSITIONER SECT.(CLAMP PLATE.-1)
042 NB16815045AA PIN 1
043 NB16815046AA COLLAR 1
044 NB168MR25 BEARING 1 MR25ZZ
X001 NB168GS0305 FLAT SCREW 12 M3-L5
X002 NB168GS0304 SOKET HEAD CAP SCREW 2 M3-L4
X003 NB168SH0316 SOKET HEAD CAP SCREW 2 M3-L16
X004 NB168SH0320 SOKET HEAD CAP SCREW 4 M3-L20
X005 NB168SH0325 SOKET HEAD CAP SCREW 4 M3-L25
X006 NB168SH0408 SOKET HEAD CAP SCREW 2 M4-L8
X007 NB168SH0512 SOKET HEAD CAP SCREW 8 M5-L12
X008 NB168SH0530 SOKET HEAD CAP SCREW 4 M5-L30
X009 NB168SH0535 SOKET HEAD CAP SCREW 2 M5-L35
X010 NB168SS0405 SUNK SCREW 2 M4-L5
X011 NB168FG0307 FLAT WASHER 2 3-7-H0.5
X012 NB168FG0409 FLAT WASHER 2 4-9-H1.0
X013 NB168SW05 SPRING WASHER 12 5-8-H1.3
X014 NB168FG0510 FLAT WASHER 4 5-10-H2
X015 NB168SS2503 SUNK SCREW 1 M2.5-L3
N154
15
P.C.B
POSITIONER
SECT.
(CLAMP
PLATE.
-2)
A
8
o
1±
1X
o
A
o
o
X
8
oo
X
4
o
o
9
oo
6
o
o
o
X
4
,
o
(N155)
序号 料号 部品名称 数量 规格 备注
004 NB16815004AA BLOCK 1
007 NB16815007AA BLOCK 1
009 NB16815009AA BLOCK 1
011 NB16815011AA SHAFT 1
016 NB168SX672AAA SENSOR 1 EE-SX672A
018 NB1686800ZZAA BALL BEARING 3 6800ZZ
020 NB16815038AA COLLAR 1
X001 NB168SH0310 SOKET HEAD CAP SCREW 2 M3-L10
X004 NB168SH0416 SOKET HEAD CAP SCREW 1 M4-L16
X005 NB168SH0420 SOKET HEAD CAP SCREW 1 M4-L20
X006 NB168SH0518 SOKET HEAD CAP SCREW 4 M5-L18
X008 NB168SH0535 SOKET HEAD CAP SCREW 2 M5-L35
X009 NB168SH0540 SOKET HEAD CAP SCREW 1 M5-L40
X012 NB168HEX05 HEXAGON NUT 2 M5
X013 NB168FG0307 FLAT WASHER 2 3-7-H0.5
X014 NB168SW05 SPRING WASHER 8 5-8-H1.3

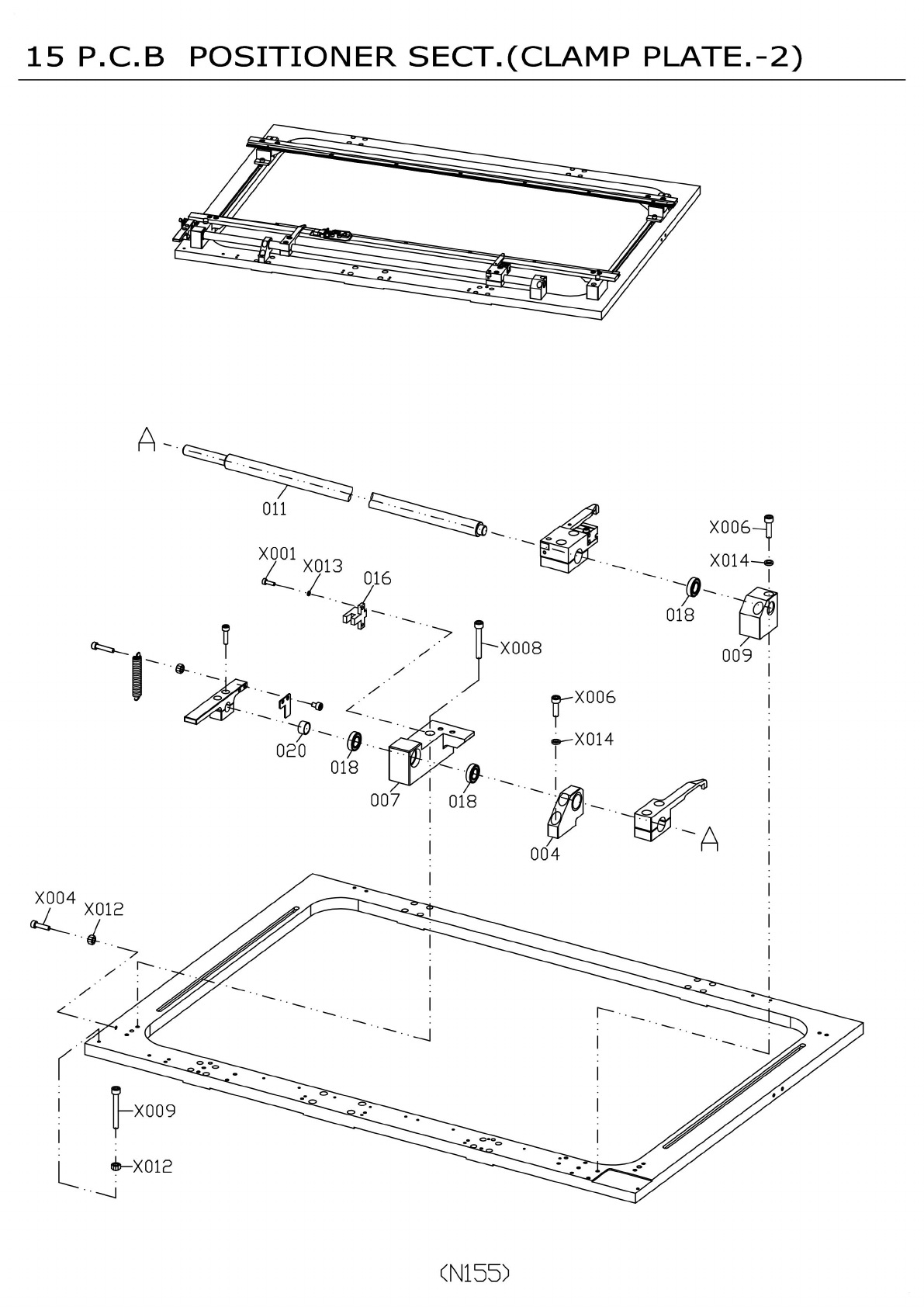

15 P.C.B POSITIONER SECT.(CLAMP PLATE.-2)
N156
