NB168-配件手册.pdf - 第166页
序号 料号 部品名称 数量 规格 备注 001 NB16814043AA PLATE 1 002 NB16814041AB PLATE 1 003 NB16814042AA PIN 1 X001 NB168SH0418 SOKET HEAD CAP SCREW 4 M4-L18 X002 NB168SH0525 SOKET HEAD CAP SCREW 2 M5-L25 X003 NB168SH0514 SOKET HEAD CAP S…
14
P.C.B
TRANSFER.
(RIGHT
TO
LEFT
HOOK
HOLE
SECT)
XOOI
&—
X005
002
003
001
X002—
X005*
?―
X003
卜-XOOS
—X006
(N149)
序号 料号 部品名称 数量 规格 备注
001 NB16814043AA PLATE 1
002 NB16814041AB PLATE 1
003 NB16814042AA PIN 1
X001 NB168SH0418 SOKET HEAD CAP SCREW 4 M4-L18
X002 NB168SH0525 SOKET HEAD CAP SCREW 2 M5-L25
X003 NB168SH0514 SOKET HEAD CAP SCREW 2 M5-L14
X004 NB168FG0409 FLAT WASHER 4 4-9-H1.0
X005 NB168FG0515 FLAT WASHER 5 5-15-H2
X006 NB168HEX05 HEXAGON NUT 1 M5

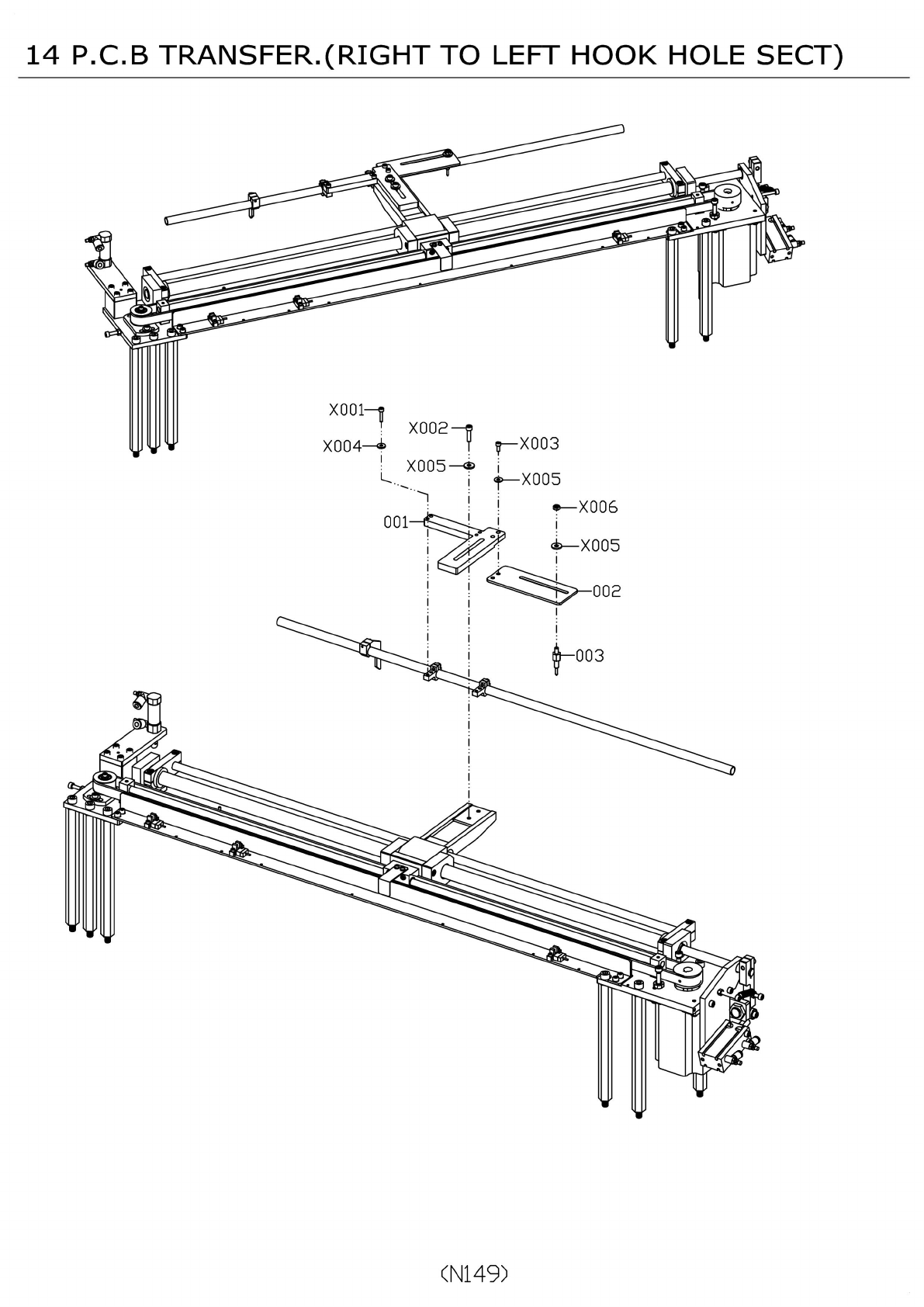

14 P.C.B TRANSFER.(RIGHT TO LEFT HOOK HOLE SECT)
N150

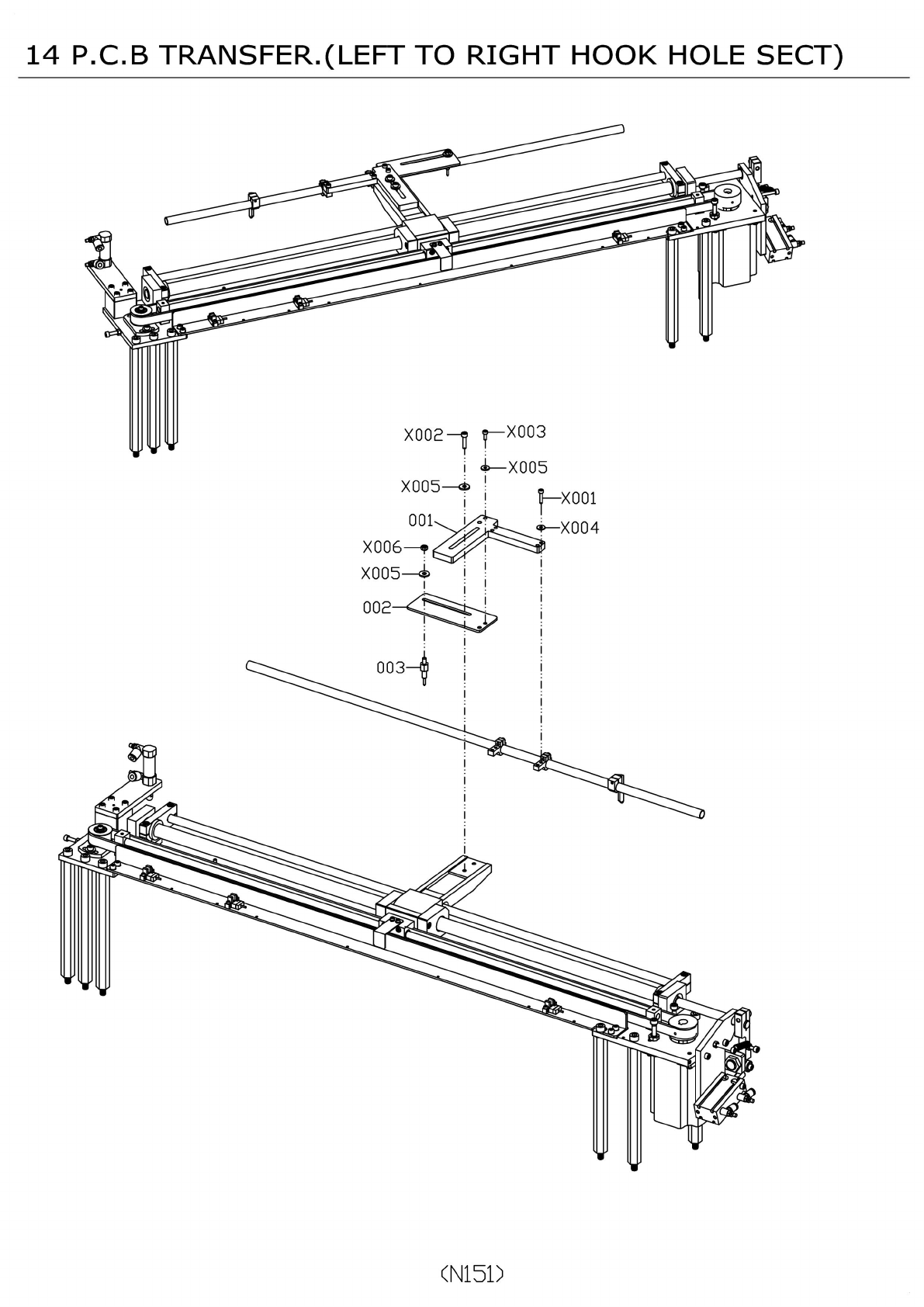

14
P.C.B
TRANSFER.
(LEFT
TO
RIGHT
HOOK
HOLE
SECT)
001
001
X004
002
003
X006—
X005^
X002-^
厂
X003
i
Jxoos
X005—
(N151)
