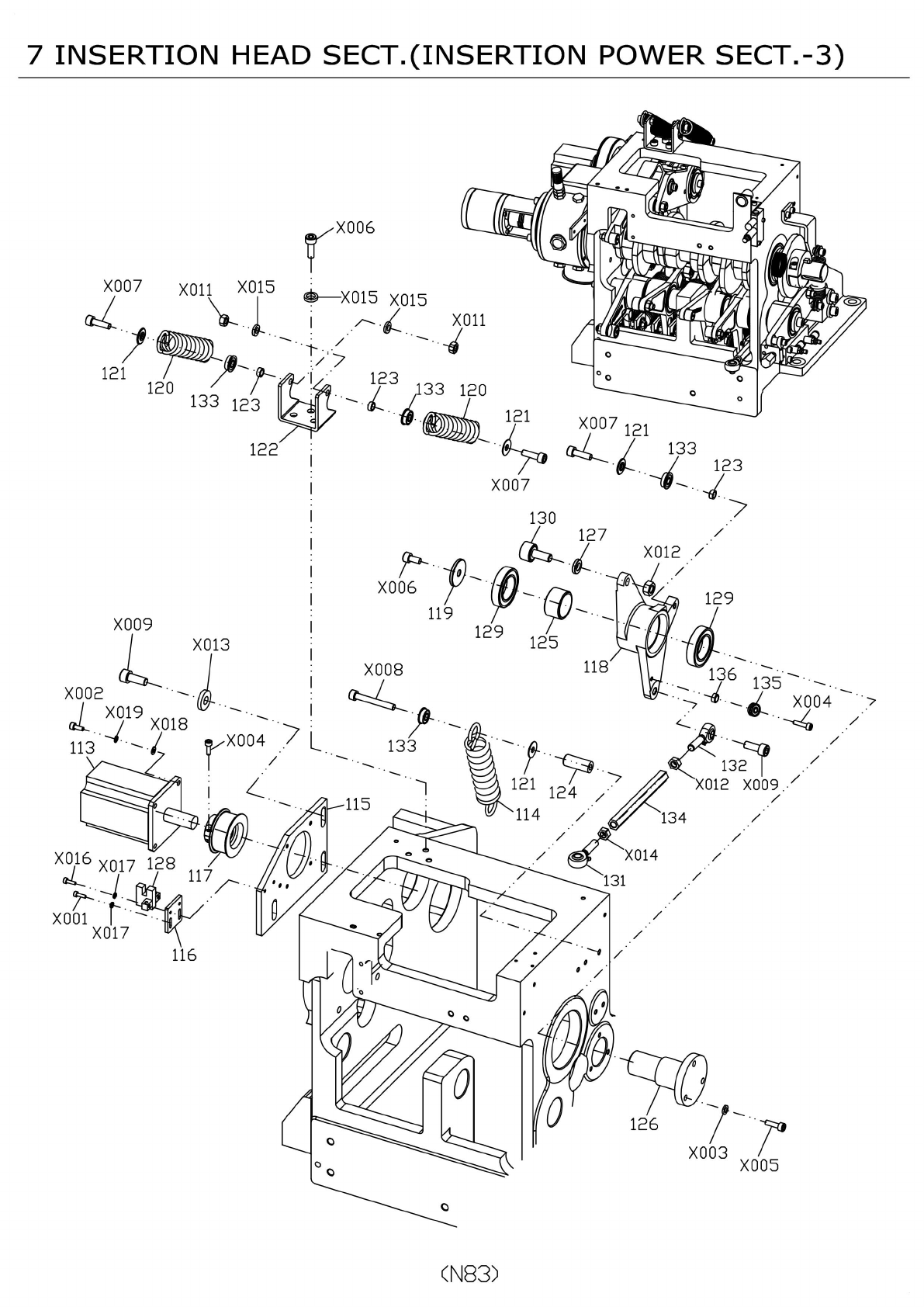

7 INSERTION HEAD SECT. (INSERTION POWER SECT. -3) X006 133 123 121 122 X007 X006 129 X009 X013 X008 133 115 114 134 X014 X016 131 116 0 126 X001 X017 X0u7 ]2] 121 124 X004 7 | / 4 X003 X005 X002 / X019、“c 段 / X018 113 X0…
序号 料号 部品名称 数量 规格 备注
082 NB16807064AA PLATE 1
084 NB16807066AA PULLEY(TIMING) 1
085 NB16807067AA PLATE 1
086 NB16807068AA FLANGE 1
087 NB168D0429AA WASHER 2
088 NB16807069AA PLATE 1
089 NB16807070AA LEVER 1
090 NB16807071AA LEVER 1
091 NB16807072AA PLATE 1
092 NB16807073AA LEVER 1
093 NB16807074AA PIN 1
094 NB16807075AA SHAFT 1
095 NB16807076AA CAM 1
096 NB16807077AA PIN 1
097 NB16807118AA COLLAR 1
098 NB16807079AA COLLAR 1
099 NB16807080AB PIN 1
100 NB168D1517AA WASHER 2
101 NB168D0409AA COLLAR 2
102 NB16807081AA COLLAR 1
103 NB1685GT360AA BELT(TIMING) 1 360-EV5GT-15
105 NB16807124AA WASHER 1
7 INSERTION HEAD SECT.(INSERTION POWER SECT.-2)
105 NB16807124AA WASHER 1
106 NB16807083AA WASHER 2
107 NB168CFN6RAA CAM FOLLOWER 1 CFN6R-A
108 NB168NART8RAA ROLLER FOLLOWER 1 NART8R-940061
109 NB1686901ZZAA BEARING 2 6901ZZ
110 NB168NART6RAA CAM FOLLOWER 1 NART6R-040025
111 NB1686005ZZAA BEARING 6 6005ZZ
112 NB168F696ZZAA BEARING 2 F696ZZIMC3PS2S
X001 NB168SH0308 SOKET HEAD CAP SCREW 2 M3-L8
X002 NB168SH0310 SOKET HEAD CAP SCREW 3 M3-L10
X003 NB168PH0406 ROUND HEAD SCREW 8 M4-L6
X004 NB168SH0412 SOKET HEAD CAP SCREW 6 M4-L10
X005 NB168SH0418 SOKET HEAD CAP SCREW 4 M4-L18
X006 NB168SH0612 SOKET HEAD CAP SCREW 2 M6-L12
X007 NB168SH0616 SOKET HEAD CAP SCREW 2 M6-L16
X008 NB168SH0620 SOKET HEAD CAP SCREW 6 M6-L20
X009 NB168SS0405 SUNK SCREW 3 M4-L5
X010 NB168SS0506 SUNK SCREW 1 M5-L6
X011 NB168HEX05 HEXAGON NUT 1 M5
X012 NB168HEX08 HEXAGON NUT 1 M8
X013 NB168SW06 SPRING WASHER 6 6-9.5-H1.6
X014 NB168SW04 SPRING WASHER 12 4-7-H1.0
X015 NB168SW03 SPRING WASHER 4 3-4-H1.0
X016 NB168FG0307 FLAT WASHER 2 3-7-H0.5
X017 NB168FG0412 FLAT WASHER 2 4-12-H1.5
X017 NB168FG0412 FLAT WASHER 2 4-12-H1.5
N82
7
INSERTION
HEAD
SECT.
(INSERTION
POWER
SECT.
-3)
X006
133
123
121
122
X007
X006
129
X009
X013
X008
133
115
114
134
X014
X016
131
116
0
126
X001
X017
X0u7
]2]
121
124
X004
7
|
/
4
X003
X005
X002
/
X019、“c
段
/
X018
113
X007
X011
X015
133
123
/
X012
/
121
120
130
127
3
125
118
136
]35
X004
'
—
119
129
•卜
/
7
/
?
123
…
133
120
KOU
1
衿
n7
卷
~~
X015
X015
I
z-./
X011
132
X012
X009
/
/
/
/
(N83)
序号 料号 部品名称 数量 规格 备注
113 NB16842PJAAA MOTOR 1 MSMF042L1U2M
114 NB16807085AA SPRING 1
115 NB16807086AA PLATE 1
116 NB16807087AA BRACKET(SENSOR) 1
117 NB16807088AA PULLEY(TIMING) 1
118 NB16807089AA LEVER 1
119 NB168D0429AA WASHER 1
120 NB16807090AA SPRING 2
121 NB168D1517AA WASHER 4
122 NB16807091AA BRACKET 1
123 NB168D0409AA COLLAR 3
124 NB16807092AA COLLAR 1
125 NB16807093AA COLLAR 1
126 NB16807094AA PIN 1
127 NB16807124AA WASHER 1
136 NB16808077AA WASHER 1
128 NB168SX672AAA SENSOR 1 EE-SX672A
129 NB1686905ZZAA BEARING 2 6905ZZ
130 NB168CFN8RAA CAM FOLLOWER 1 CFN8R-A
131 NB168POS8LAA ROD END 1 P0S8L
132 NB168POS8AA ROD END 1 P0S8
133 NB168F696ZZAA BEARING 4 F696ZZIMC3PS2S
7 INSERTION HEAD SECT.(INSERTION POWER SECT.-3)
133 NB168F696ZZAA BEARING 4 F696ZZIMC3PS2S
134 NB16807096AA ROD 1
135 NB168624VZZAA BEARING 1 624VZZ
X001 NB168SH0310 SOKET HEAD CAP SCREW 2 M3-L10
X002 NB168SH0410 SOKET HEAD CAP SCREW 4 M4-L10
X003 NB168SW05 SPRING WASHER 1 5-8-H1.3
X004 NB168SH0416 SOKET HEAD CAP SCREW 1 M4-L16
X005 NB168SH0516 SOKET HEAD CAP SCREW 3 M5-L16
X006 NB168SH0616 SOKET HEAD CAP SCREW 4 M6-L16
X007 NB168SH0620 SOKET HEAD CAP SCREW 3 M6-L20
X008 NB168SH0645 SOKET HEAD CAP SCREW 1 M6-L45
X009 NB168SH0820 SOKET HEAD CAP SCREW 4 M8-L20
X011 NB168HEX06 HEXAGON NUT 2 M6
X012 NB168HEX08 HEXAGON NUT 2 M8
X013 NB168FG0821 FLAT WASHER 3 8-21-H3
X014 NB168HEX08L HEXAGON NUT 1 M8
X015 NB168FG0612 FLAT WASHER 3 6-12-H1.5
X016 NB168SH0306 SOKET HEAD CAP SCREW 2 M3-L6
X017 NB168FG0307 FLAT WASHER 4 3-7-H0.5
X018 NB168FG0409 FLAT WASHER 2 4-9-H1.0
X019 NB168SW04 SPRING WASHER 2 4-7-H1.0
N84
