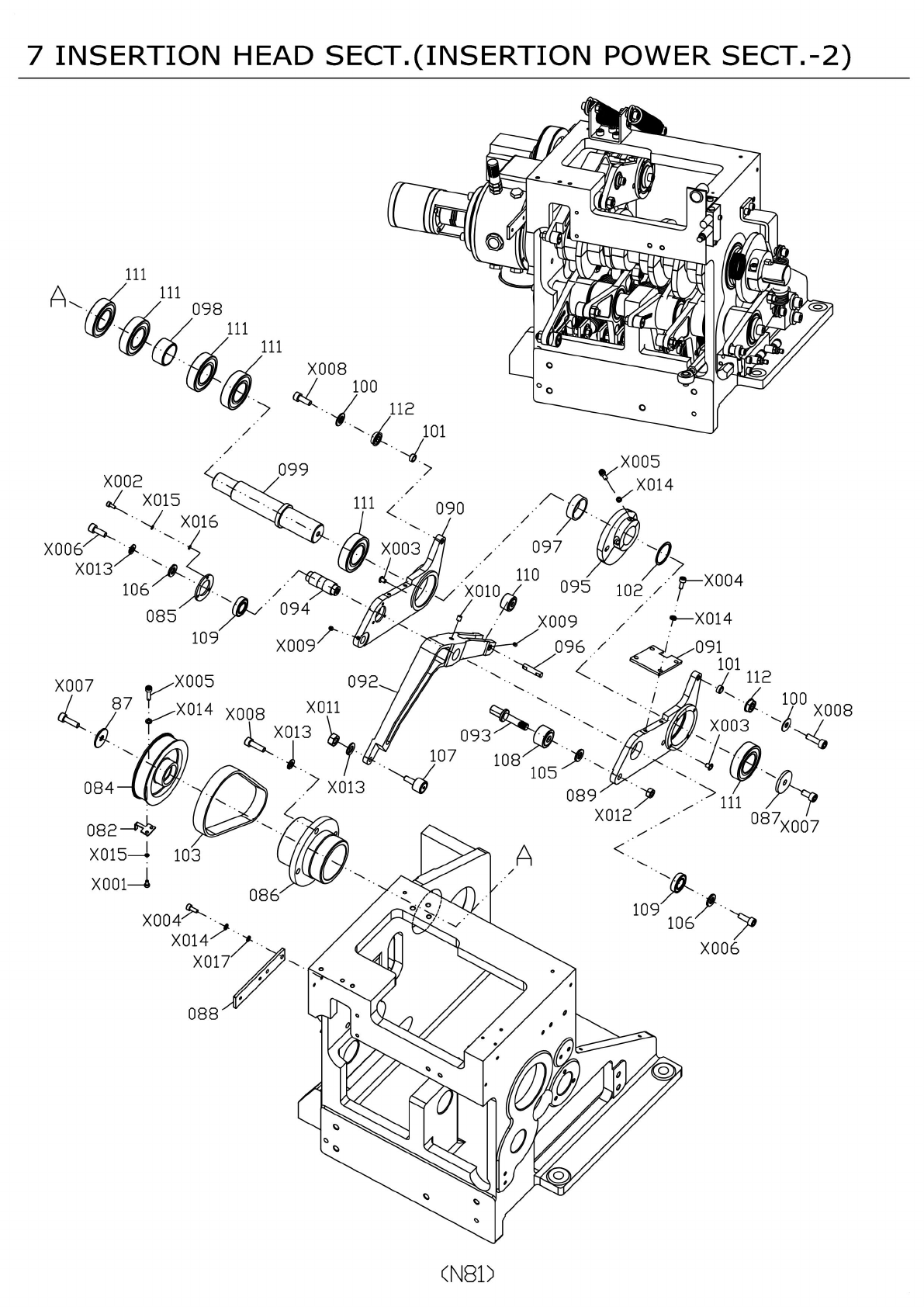

7 INSERTION HEAD SECT. (INSERTION POWER SECT. -2) 099 X003 094 X009 092 107 084 < A 086 109 X006 088 o o X005 X014 X009 096 < > / X006 X013 106 085 109 093 108 105 089 X012 X002 X015 X016 '111 087X007 098 1…

100%1 / 317
序号 料号 部品名称 数量 规格 备注
058 NB168AB3CAA ROTARY ENCODER 1 E6F-AB3C
059 NB16807048AA CAM 1
060 NB16807049AA CAM 1
061 NB16807050AA CAM 1
062 NB16807051AA CAM 1
063 NB16807052AA CAM 1
064 NB16807053AA CAM 1
065 NB16807054AA CAM 1
066 NB16820013AA KEY 1
067 NB168T6368AA PULLEY 1
068 NB16807057AA CAM BOX 1
069 NB16807058AA FLANGE 1
070 NB16807059AA KEY 2
071 NB16807060AB SHAFT 1
072 NB168W50E07AA REDUCTION GEAR 1 SW50E07LF-ST2
073 NB168D0425AA WASHER 1
074 NB16807062AA WASHER 1
075 NB168FU4SCAA LOCK-NUT 1 FU04SC
076 NB16807063AA KEY 1
077 NB168FU07SSAA NUT 1 FU07SS (M35X1.5)
078 NB1686007ZZAA BALL BEARING 1 6007ZZ
7 INSERTION HEAD SECT.(INSERTION POWER SECT.-1)
080 NB16807157AA FITTING 1 KS-1/4
X001 NB168SH0310 SOKET HEAD CAP SCREW 7 M3-L10
X002 NB168SH0312 SOKET HEAD CAP SCREW 4 M3-L12
X003 NB168SH0620 SOKET HEAD CAP SCREW 5 M6-L20
X004 NB168SW03 SPRING WASHER 11 3-4-H1.0
X005 NB168SH0630 SOKET HEAD CAP SCREW 14 M6-L30
X006 NB168SS0506 SUNK SCREW 2 M5-L6
X007 NB168SS0808 SUNK SCREW 6 M8-L8
X008 NB168SW06 SPRING WASHER 19 6-9.5-H1.6
N80
7
INSERTION
HEAD
SECT.
(INSERTION
POWER
SECT.
-2)
099
X003
094
X009
092
107
084
<
A
086
109
X006
088
o
o
X005
X014
X009
096
<
>
/
X006
X013
106
085
109
093
108
105
089
X012
X002
X015
X016
'111
087X007
098
111
111
X008
X011
X013
IO?
/厂
X004
久
/<010
X007
X005
87
X014
082-^
X015」
103
X001」
X004"〉
X014
/
X017
/
097
110
…
一/
095
111
A
、
111
?
X013
LX014
091
101
/
112
人
・
2
100
X008
X003
X008
100
112
*
101
v
111
<
090
(N81)
序号 料号 部品名称 数量 规格 备注
082 NB16807064AA PLATE 1
084 NB16807066AA PULLEY(TIMING) 1
085 NB16807067AA PLATE 1
086 NB16807068AA FLANGE 1
087 NB168D0429AA WASHER 2
088 NB16807069AA PLATE 1
089 NB16807070AA LEVER 1
090 NB16807071AA LEVER 1
091 NB16807072AA PLATE 1
092 NB16807073AA LEVER 1
093 NB16807074AA PIN 1
094 NB16807075AA SHAFT 1
095 NB16807076AA CAM 1
096 NB16807077AA PIN 1
097 NB16807118AA COLLAR 1
098 NB16807079AA COLLAR 1
099 NB16807080AB PIN 1
100 NB168D1517AA WASHER 2
101 NB168D0409AA COLLAR 2
102 NB16807081AA COLLAR 1
103 NB1685GT360AA BELT(TIMING) 1 360-EV5GT-15
7 INSERTION HEAD SECT.(INSERTION POWER SECT.-2)
106 NB16807083AA WASHER 2
107 NB168CFN6RAA CAM FOLLOWER 1 CFN6R-A
108 NB168NART8RAA ROLLER FOLLOWER 1 NART8R-940061
109 NB1686901ZZAA BEARING 2 6901ZZ
110 NB168NART6RAA CAM FOLLOWER 1 NART6R-040025
111 NB1686005ZZAA BEARING 6 6005ZZ
112 NB168F696ZZAA BEARING 2 F696ZZIMC3PS2S
X001 NB168SH0308 SOKET HEAD CAP SCREW 2 M3-L8
X002 NB168SH0310 SOKET HEAD CAP SCREW 3 M3-L10
X003 NB168PH0406 ROUND HEAD SCREW 8 M4-L6
X004 NB168SH0412 SOKET HEAD CAP SCREW 6 M4-L10
X005 NB168SH0418 SOKET HEAD CAP SCREW 4 M4-L18
X006 NB168SH0612 SOKET HEAD CAP SCREW 2 M6-L12
X007 NB168SH0616 SOKET HEAD CAP SCREW 2 M6-L16
X008 NB168SH0620 SOKET HEAD CAP SCREW 6 M6-L20
X009 NB168SS0405 SUNK SCREW 3 M4-L5
X010 NB168SS0506 SUNK SCREW 1 M5-L6
X011 NB168HEX05 HEXAGON NUT 1 M5
X012 NB168HEX08 HEXAGON NUT 1 M8
X013 NB168SW06 SPRING WASHER 6 6-9.5-H1.6
X014 NB168SW04 SPRING WASHER 12 4-7-H1.0
X015 NB168SW03 SPRING WASHER 4 3-4-H1.0
X016 NB168FG0307 FLAT WASHER 2 3-7-H0.5
N82
