NB168-配件手册.pdf - 第232页
序号 料号 部品名称 数量 规格 备注 001 NB16820090AA BLOCK 1 002 NB16820091AA PUSHER 1 003 NB16820092AA PIN 2 004 NB16820093AA FORK 1 005 NB16820094AA HOOK 1 006 NB168SR15WAA GUIDE 1 SSR15XW2UUC1+160LY 009 NB16820097AB PLATE 1 010 NB168…
序号 料号 部品名称 数量 规格 备注
001 NB16820090AA BLOCK 1
002 NB16820091AA PUSHER 1
003 NB16820092AA PIN 2
004 NB16820093AA FORK 1
005 NB16820094AA HOOK 1
006 NB168SR15WAA GUIDE 1 SSR15XW2UUC1+160LY
009 NB16820097AB PLATE 1
010 NB168P0618AA PIN 2
011 NB168NP32AA GREASE NIPPLE 2 NP3.2X3.5
012 NB168P0413AA PIN 2
X001 NB168SH0414 SOKET HEAD CAP SCREW 4 M4-L14
X002 NB168SH0408 SOKET HEAD CAP SCREW 4 M4-L8
X003 NB168SH0416 SOKET HEAD CAP SCREW 3 M4-L16
X004 NB168SH0425 SOKET HEAD CAP SCREW 1 M4-L25
X005 NB168SH0514 SOKET HEAD CAP SCREW 2 M5-L14
X006 NB168SH0516 SOKET HEAD CAP SCREW 2 M5-L16
X007 NB168SH0625 SOKET HEAD CAP SCREW 2 M6-L25
X008 NB168HEX04 HEXAGON NUT 1 M4
X009 NB168SW04 SPRING WASHER 8 4-7-H1.0
X010 NB168FG0409 FLAT WASHER 6 4-9-H1.0
X011 NB168SW05 SPRING WASHER 2 5-8-H1.3
X012 NB168FG0510 FLAT WASHER 2 5-10-H2

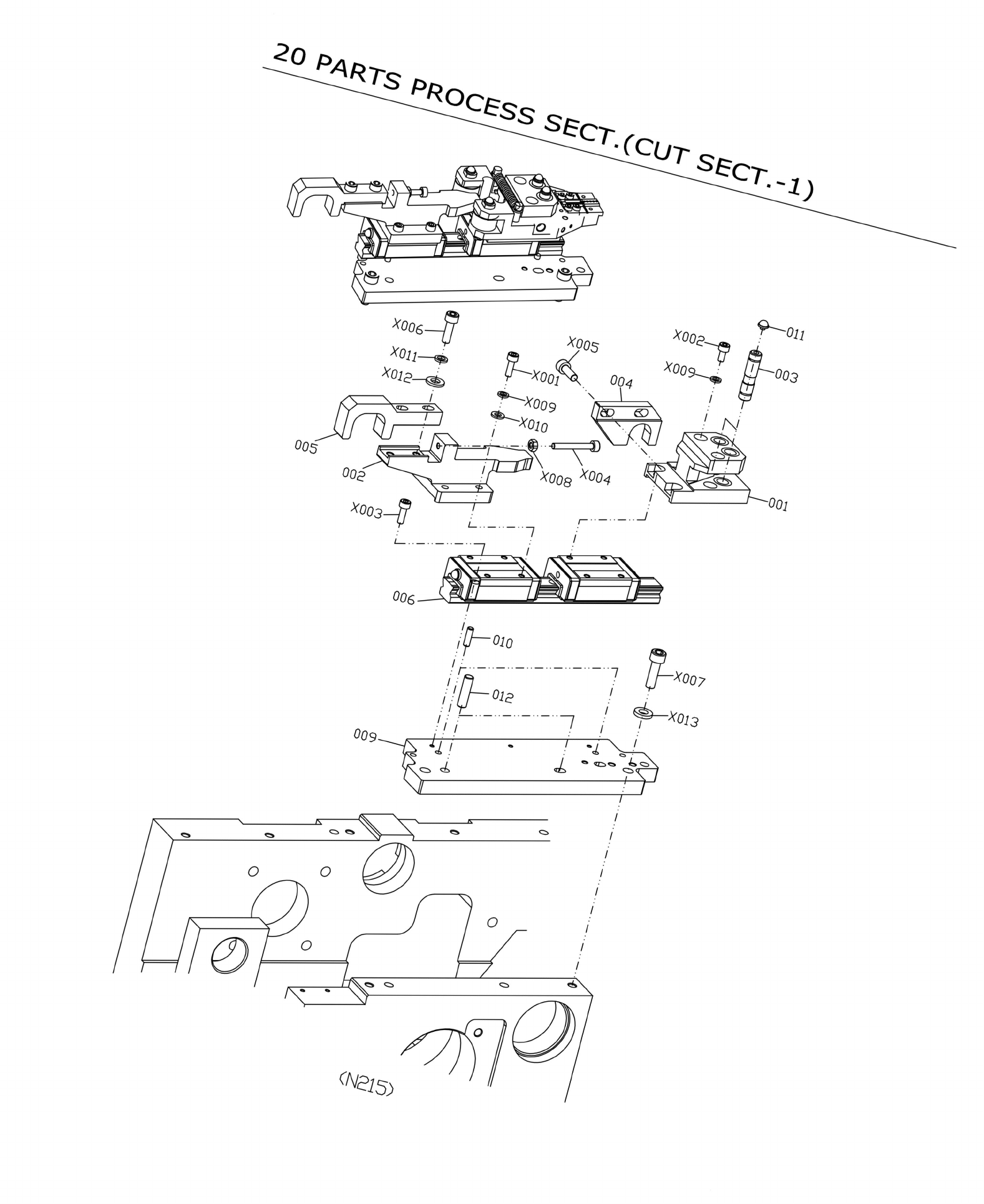

20 PARTS PROCESS SECT.(CUT SECT.-1)
X012 NB168FG0510 FLAT WASHER 2 5-10-H2
X013 NB168FG0617 FLAT WASHER 2 6-17-H3
N216
20
PARTS
PROCESS
SECT.
(CUT
SECT.
-2)
315
MM
专用平
022
023
o
o
019
X003
014
013
020
016
T
018
0
014
o
X005
X003
X004
X001
X002
017
021
合
一
X004
020
021
——
9
013
X005
卜
X002
:
015
律
।
X001
1
019
|
(N217)
