序号 料号 部品名称 数量 规格 备注 A001 NB168NU0302 MAIN DRIVING UNIT 037 NB16803027AA COLLAR 1 038 NB16803028AA PLATE 1 039 NB16803029AA BRACKET 1 040 NB16803030AA PIN 1 041 NB16803031AA PIN 1 042 NB16803032AB PLATE 1 043 NB16803033AA…
(Ml)
序号 料号 部品名称 数量 规格 备注
A001 NB168NU0302 MAIN DRIVING UNIT
037 NB16803027AA COLLAR 1
038 NB16803028AA PLATE 1
039 NB16803029AA BRACKET 1
040 NB16803030AA PIN 1
041 NB16803031AA PIN 1
042 NB16803032AB PLATE 1
043 NB16803033AA PULLEY 1
044 NB16803034AA PULLEY 1
045 NB1686202ZZ BEARING 4 6202ZZ
046 NB16803035AA WASHER 2
X001 NB168SH0408 SOKET HEAD CAP SCREW 3 M4-L8
X002 NB168FG0409 FLAT WASHER 3 4-9-H1.0
X003 NB168SH0616 SOKET HEAD CAP SCREW 2 M6-L16
X004 NB168SH0825 SOKET HEAD CAP SCREW 4 M8-L25
X005 NB168FG0821 FLAT WASHER 4 8-21-H4
X006 NB168SH0855 SOKET HEAD CAP SCREW 1 M8-L55
X007 NB168HEX08 HEXAGON NUT 1 M8
X008 NB168SH1025 SOKET HEAD CAP SCREW 4 M10-L25
X009 NB168FG1025 FLAT WASHER 4 10-25-H4
X010 NB168HEX12 HEXAGON NUT 2 M12
X011 NB168SH1030 SOKET HEAD CAP SCREW 2 M10-L30

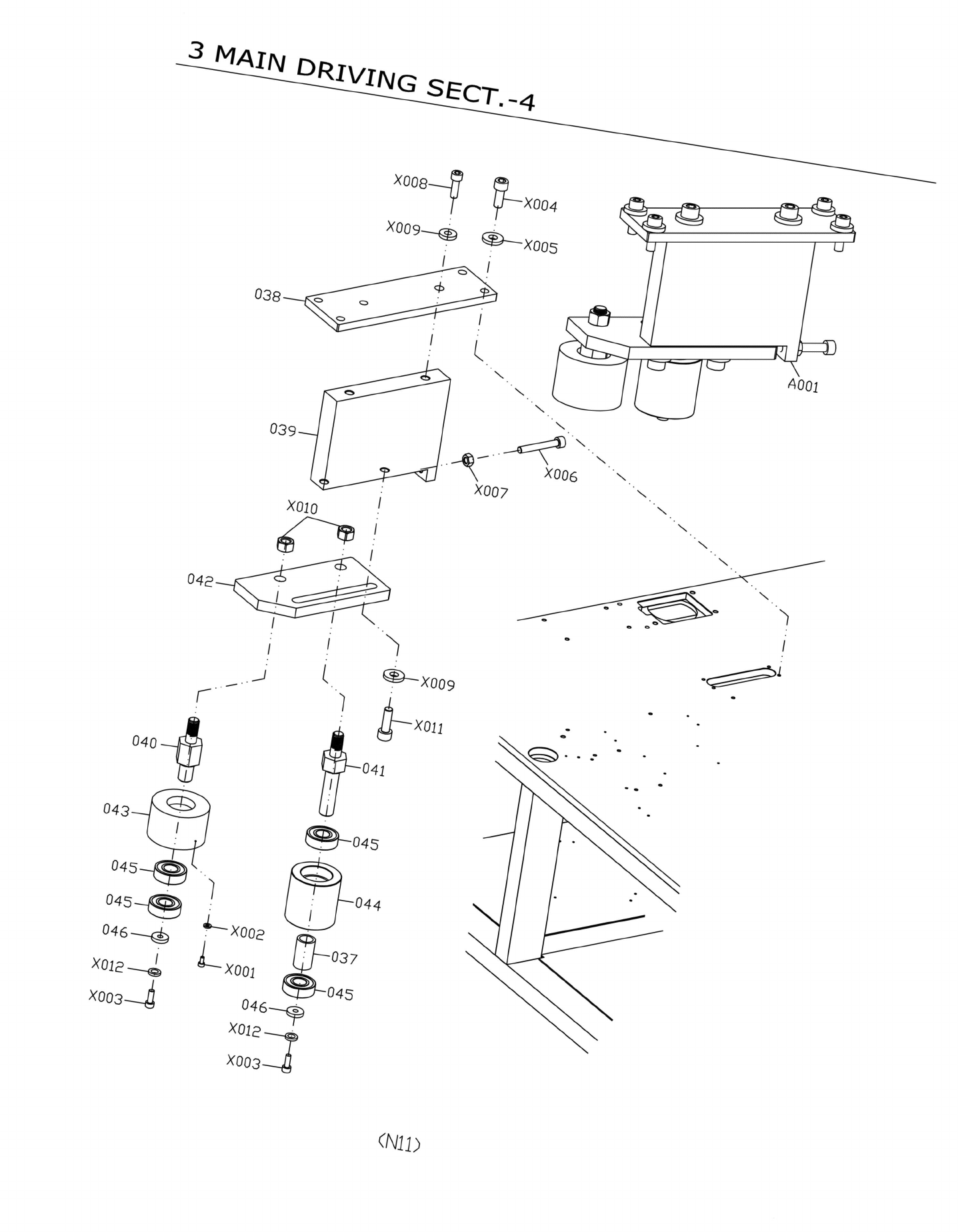

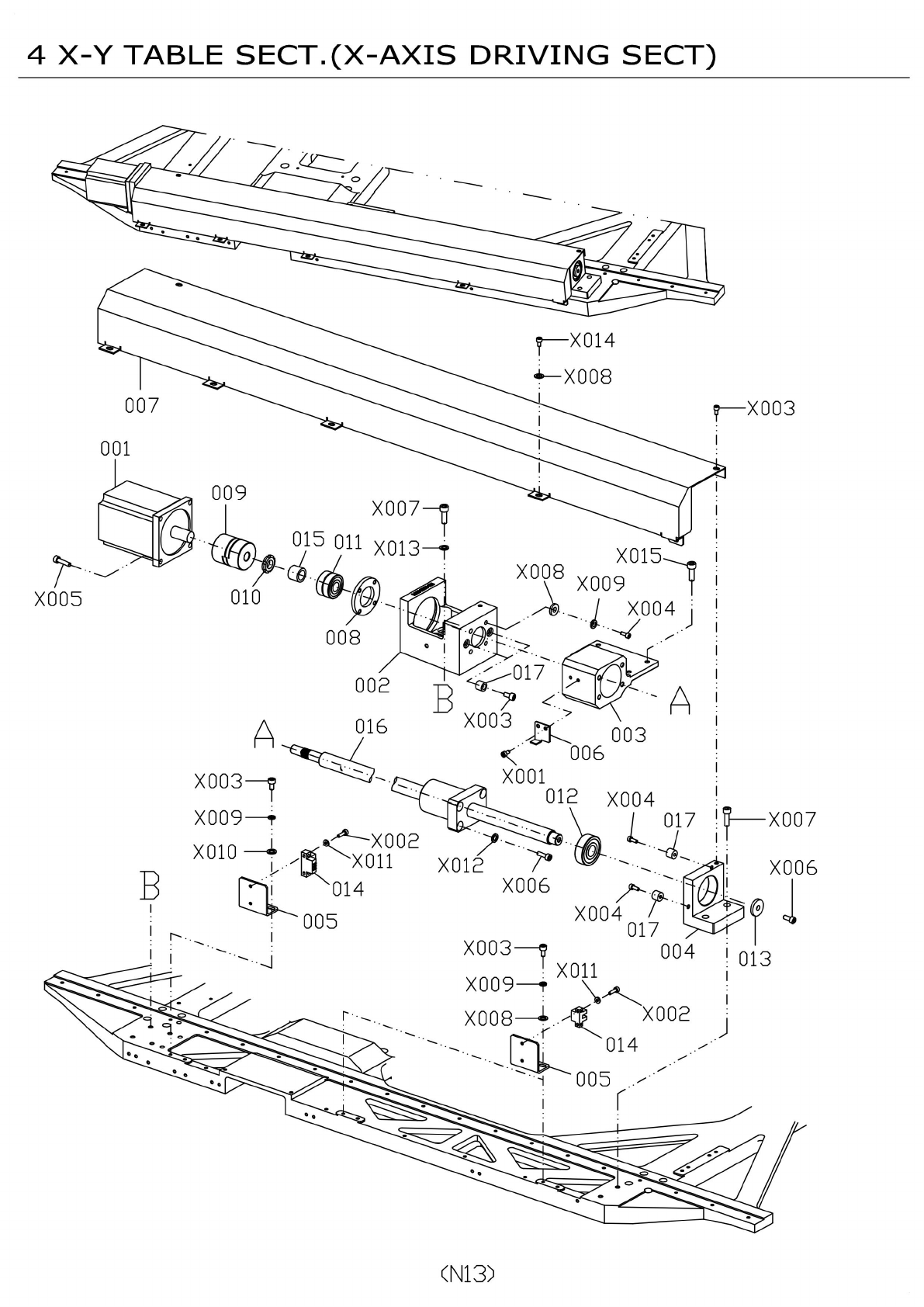

3 MAIN DRIVING SECT.-4
X011 NB168SH1030 SOKET HEAD CAP SCREW 2 M10-L30
X012 NB168SW06 SPRING WASHER 2 6-9.5-H1.6
N12
4
X-Y
TABLE
SECT.
(X-AXIS
DRIVING
SECT)
007
7
—
X003
001
009
X005
008
002
B
X003
016
A
X007
X010
X006
B
g
j
005
X003
!
013
'7
X009
二
4
X008
••r
014
005
X002
、
xou
014
X001
012
X003—J
X009「
—
X014
JX008
X015
X008
xo09
X004
i
X012
X006
X002
」
!
X011
A
003
006
/
孙.
X004
/
017
004
X°°7
飞
0,5
011
X013r
010
X004
017
1
(N13)
