A A B B C C 3 MAIN DRIVING SECT.-3 X006 X004 X014 021 027 032 028 X013 X003 ― J 024 025 © 037 035 X011 X0 X010 X002 X008 030 X009 由 一 X012 031 * ; X015 046 036 029 026 —036 X006 047 023 X012 X010 X011 X006 i —— X015 046 …

100%1 / 317
序号 料号 部品名称 数量 规格 备注
017 NB168302P1CAA MOTOR 1 MSMF302L1G6M
020 NB16803011AA PULLEY 1
021 NB16803010AA BRACKET 1
X001 NB168SH0825 SOKET HEAD CAP SCREW 4 M08-L25
X002 NB168SH0625 SOKET HEAD CAP SCREW 2 M06-L25
X003 NB168SH0840 SOKET HEAD CAP SCREW 4 M8-L40
X004 NB168FG0821 FLAT WASHER 4 8-21-H4
X005 NB168SW05 SPRING WASHER 4 5-8-H1.3
X006 NB168SW08 SPRING WASHER 6 8-12.5-H2

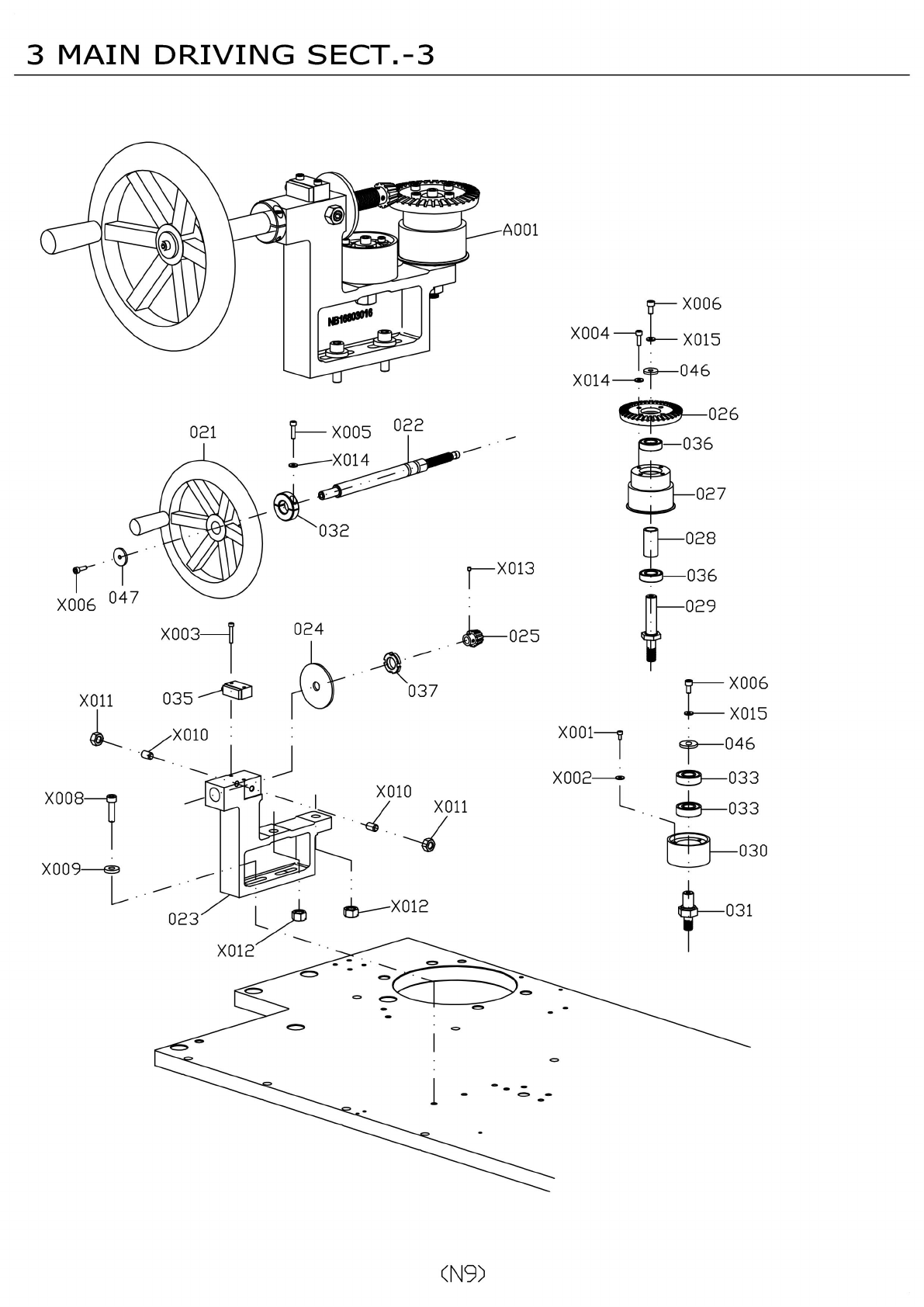

3 MAIN DRIVING SECT.-2
N8
A
A
B
B
C
C
3
MAIN
DRIVING
SECT.-3
X006
X004
X014
021
027
032
028
X013
X003
―
J
024
025
©
037
035
X011
X0
X010
X002
X008
030
X009
由
一
X012
031
*
;
X015
046
036
029
026
—036
X006
047
023
X012
X010
X011
X006
i
——
X015
046
®
—
033
—
033
X005
022
X014
(N9)
序号 料号 部品名称 数量 规格 备注
A001 NB168NU0301 MAIN DRIVING UNIT
047 NB16803013AA WASHER 1
021 NB16803014AA HANDLE 1
022 NB16803015AA SHAFT 1
023 NB16803016AA FRAME 1
024 NB16803017AA COLLAR 1
025 NB16803018AA GEAR 1
026 NB16803019AA GEAR 1
027 NB16803020AA PULLEY(TIMING) 1
028 NB16803021AA COLLAR 1
029 NB16803022AA PIN 1
030 NB16803023AA PULLEY 1
031 NB16803024AA PIN 1
032 NB16803025AA COLLAR 1
046 NB16803035AA WASHER 2
033 NB1686202ZZAA BEARING 2 6202ZZ
035 NB168TZ710AA SWITCH 1 TZ710
036 NB1686002ZZAA BEARING 2 6002ZZ
037 NB168HEX12XAA NUT 1 M18-1.5
X001 NB168SH0408 SOKET HEAD CAP SCREW 3 M4-L08
X002 NB168FG0412 FLAT WASHER 3 4-12-H1.5
3 MAIN DRIVING SECT.-3
X004 NB168SH0516 SOKET HEAD CAP SCREW 4 M5-L16
X005 NB168SH0520 SOKET HEAD CAP SCREW 1 M5-L20
X006 NB168SH0616 SOKET HEAD CAP SCREW 3 M6-L16
X008 NB168SH0830 SOKET HEAD CAP SCREW 2 M8-L30
X009 NB168FG0821 FLAT WASHER 2 8-21-H4
X010 NB168SS1018R TAKAI 2 M10-L18
X011 NB168HEX10 HEXAGON NUT 2 M10
X012 NB168HEX12 HEXAGON NUT 2 M12
X013 NB168SS0405 SUNK SCREW 2 M4-L5
X014 NB168SW05 SPRING WASHER 5 5-8-H1.3
X015 NB168SW06 SPRING WASHER 2 6-9.5-H1.6
N10
