NB168-配件手册.pdf - 第32页

序号 料号 部品名称 数量 规格 备注 017 NB16882GIUAA MOTOR 1 MSMF082L1U2M 018 NB16804010AA BRACKET(MOTOR) 1 019 NB16804011AA HOUSING 1 020 NB16804012AA HOLDER 1 021 NB16804013AA BRACKET 1 022 NB16804014AA STOPPER 4 023 NB16804015AA PLAT…

100%1 / 317

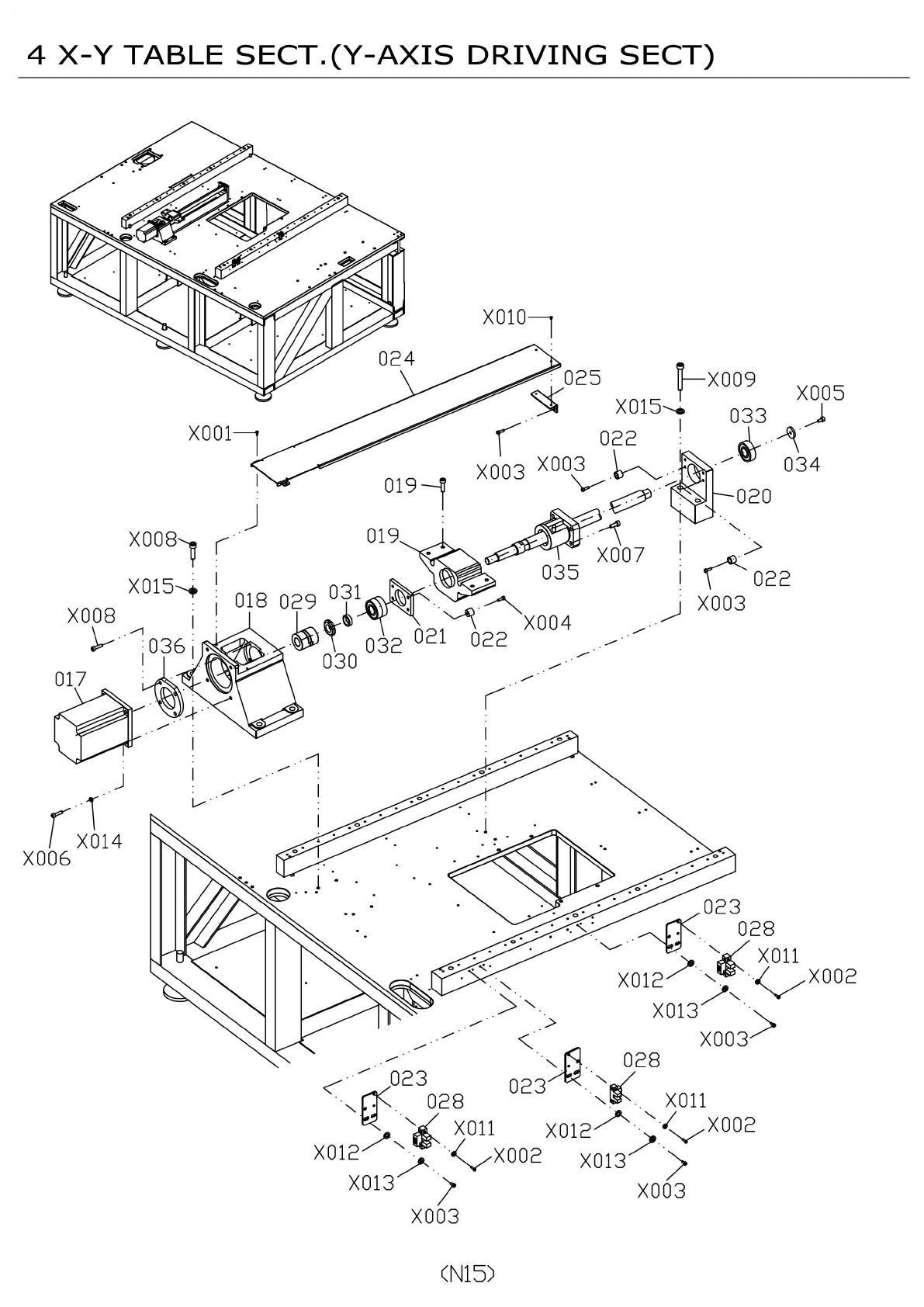

4
X-Y
TABLE
SECT.
(Y-AXIS
DRIVING
SECT)
024
X009
X005
033
1
X00
034
019
020
019
031
029
030
017
J
X012
>
X013
023
X012
X013
X003
X003
023
028
《
X011
X008
X011
X002
/
X014
X006
023
028
X011
X002
X007
035
022
X003
X”
；0,6|£
J
X008=
X015、
1
、
.
018
X012
/
X0°2
X013
X003
028
:
025
1
X015」
X004
032
°21
022
022
X003
(N15)
序号 料号 部品名称 数量 规格 备注
017 NB16882GIUAA MOTOR 1 MSMF082L1U2M
018 NB16804010AA BRACKET(MOTOR) 1
019 NB16804011AA HOUSING 1
020 NB16804012AA HOLDER 1
021 NB16804013AA BRACKET 1
022 NB16804014AA STOPPER 4
023 NB16804015AA PLATE(Y) 3
024 NB16804016AA COVER 1
025 NB16804017AB BRACKET 1
028 NB168SX671AA SENSOR 3 EE-SX671
029 NB168GS1219AA COUPLING 1 GSTS-44X34.5-12X19
030 NB168FU02SCAA LOCK-NUT 1 FU02SC(M15X1.0)
031 NB16804020AA WASHER 1
032 NB1687202ZZAA BEARING 1 7202ADBP5
033 NB1686202ZZAA BALL BEARING 1 6202ZZ
034 NB16804021AA WASHER 1
035 NB168GZ2010AA
BALL SOKET HEAD CAP SCREW
1
GZ2010ES-ZAPR-0588X0509-C5F
036 NB16804049AA BRACKET 1
X001 NB168SH0306 SOKET HEAD CAP SCREW 2 M3-L6
X002 NB168SH0310 SOKET HEAD CAP SCREW 6 M3-L10
X003 NB168SH0410 SOKET HEAD CAP SCREW 10 M4-L10
4 X-Y TABLE SECT.(Y-AXIS DRIVING SECT)
X005 NB168SH0515 SOKET HEAD CAP SCREW 1 M5-L15
X006 NB168SH0518 SOKET HEAD CAP SCREW 4 M5-L18
X007 NB168SH0620 SOKET HEAD CAP SCREW 4 M6-L20
X008 NB168SH0835 SOKET HEAD CAP SCREW 4 M8-L35
X009 NB168SH0855 SOKET HEAD CAP SCREW 2 M8-L55
X010 NB168GS0305 FLAT SCREW 2 M3-L5
X011 NB168FG0307 FLAT WASHER 6 3-7-H0.5
X012 NB168FG0409 FLAT WASHER 8 4-9-H1.0
X013 NB168SW06 SPRING WASHER 8 6-9.5-H1.6
X014 NB168SW05 SPRING WASHER 4 5-8-H1.3
X015 NB168SW08 SPRING WASHER 6 8-12.5-H2

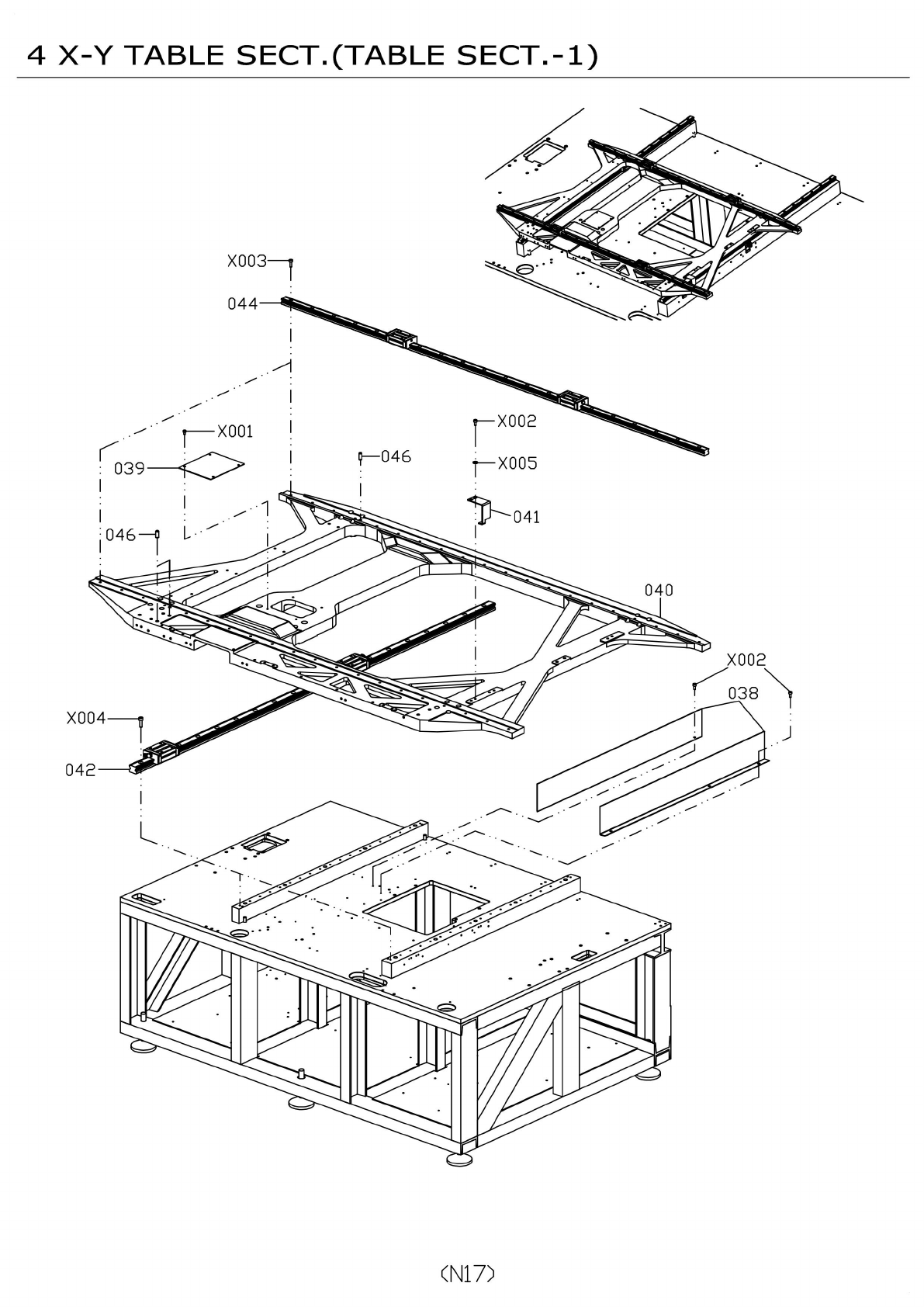

N16
4
X-Y
TABLE
SECT.
(TABLE
SECT.-l)
044
X001
J
—
046
X005
:
039
041
040
X002
038
X004
J
042
X003—
।
|
—
X002
•046^
L-
(N17)
