NB168-配件手册.pdf - 第89页
-6 c5・ 6 西 3 \ M M
序号 料号 部品名称 数量 规格 备注
040 NB16806034AA COVER 1
041 NB16806035AA COVER UNIT 1
042 NB16806036AA COVER UNIT 1
043 NB16806037AA COVER UNIT 1
064 NB16806062AA COVER UNIT 1
065 NB16806063AA COVER UNIT 1
066 NB16806064AA SWITCH BOX 1
067 NB16812SVBAA POWER SWITCH 1 P1-32/2/SVB
068 NB16806052AA COVER UNIT 1
069 NB16806006AA COVER 1
070 NB16806026AA COVER 1
071 NB16806028AA COVER 1
072 NB16802007AA COVER 1
X001 NB168PH0508 ROUND HEAD SCREW 9 M5-L8
X002 NB168SH0616 SOKET HEAD CAP SCREW 12 M6-L16
X003 NB168PH0406 ROUND HEAD SCREW 6 M4-L6
X004 NB168PH0610 ROUND HEAD SCREW 28 M6-L10
6 COVER SECT.-5
N72
-6
c5・
6
西
3
\
M
M

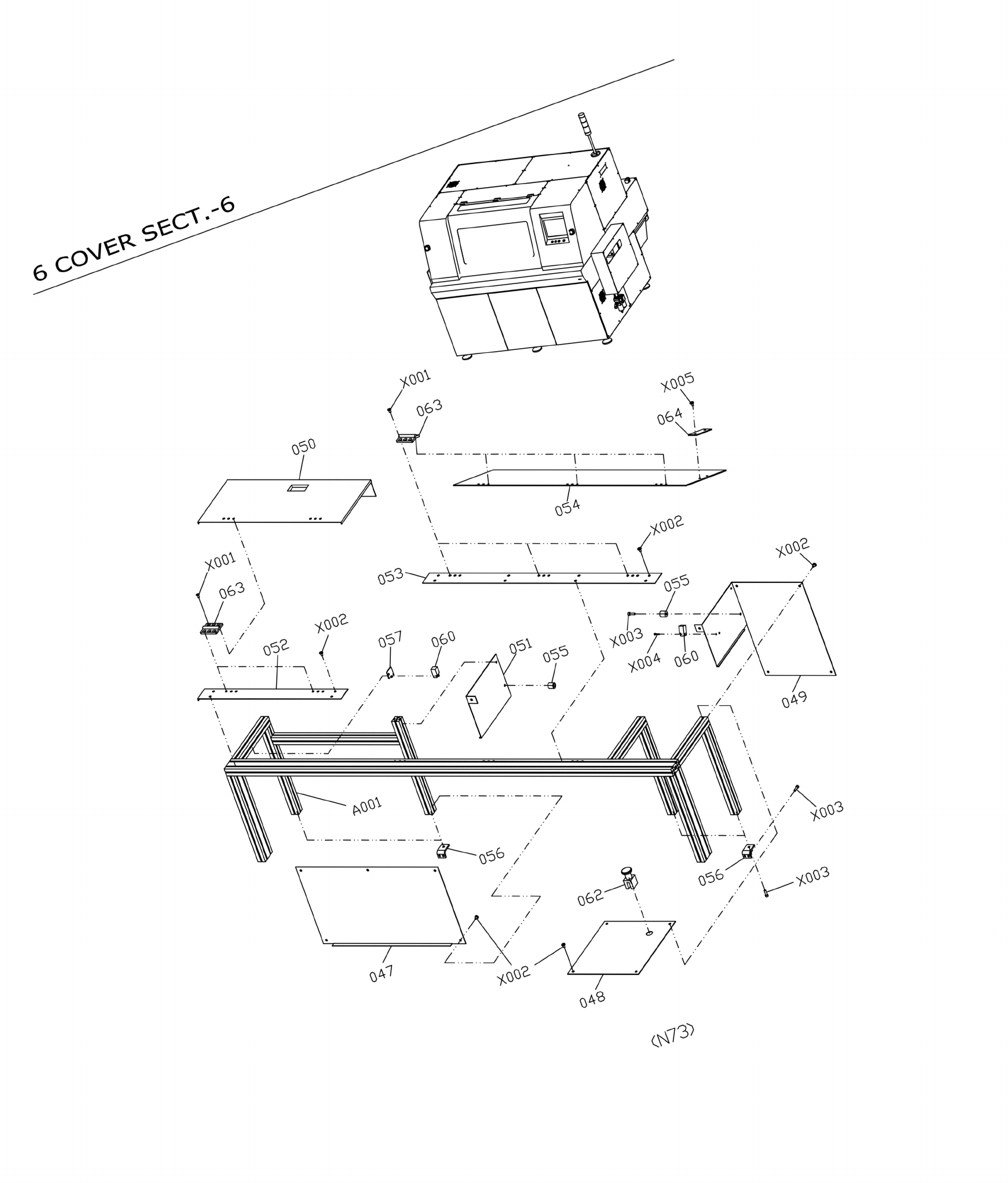

序号 料号 部品名称 数量 规格 备注
A001 NB16806002AA FRAME 1
047 NB16806040AA COVER 1
048 NB16806041AA COVER 1
049 NB16806042AA COVER 1
050 NB16806043AA COVER 1
051 NB16806044AA COVER 1
052 NB16806045AA COVER 1
053 NB16806046AA COVER 1
054 NB16806047AA COVER 1
055 NB16806048AA STOP 2
056 NB16806049AA BRACKET 4
057 NB16806050AA BRACKET 1
060 NB168PL05NAA SAFETY 2 PL-05N(APT)(APT)
062 NB16806018AA SWITCH 1 YW1B-V4EE01R
063 NB16806016AA HINGE 5
064 NB16806067AA BRACKET 1
X001 NB168GS0612 FLAT SCREW 30 M6-L12
X002 NB168PH0610 ROUND HEAD SCREW 26 M6-L10
X003 NB168SH0620 SOKET HEAD CAP SCREW 14 M6-L20
X004 NB168SH0316 SOKET HEAD CAP SCREW 4 M3-L16
X005 NB168PH0306 ROUND HEAD SCREW 2 M3-L6
6 COVER SECT.-6
N74
