NB168-配件手册.pdf - 第92页
序号 料号 部品名称 数量 规格 备注 001 NB16807001AA BALL SPLINE 1 LTR25UUZZCL+173LPN 002 NB16807002AA SHAFT 1 003 NB16807003AA COLLAR 1 004 NB16807004AA SPRING 1 005 NB16807005AA SPRING 1 007 NB16807007AA PUSHER 1 008 NB16807008AA PIN …

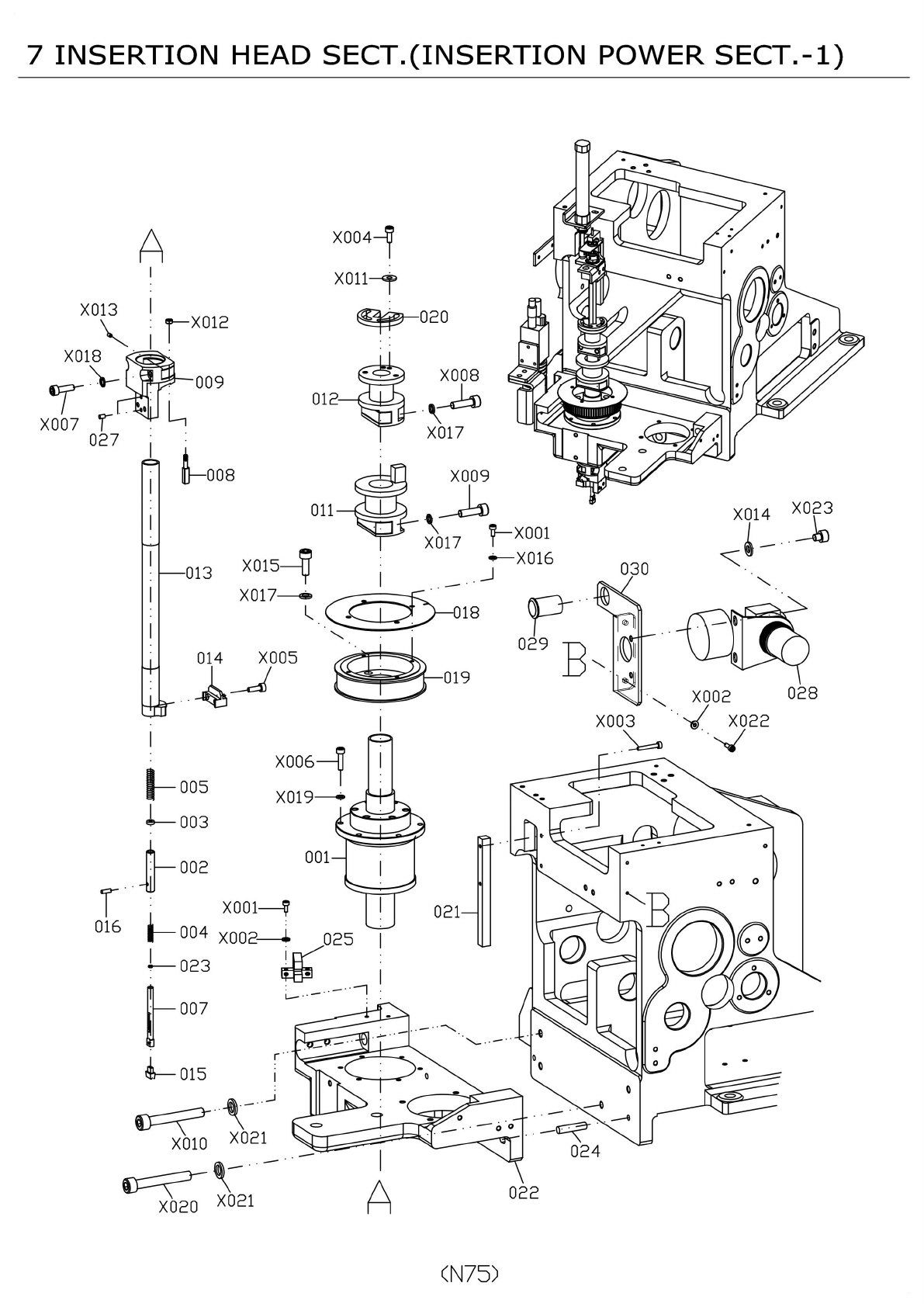

7
INSERTION
HEAD
SECT.
(INSERTION
POWER
SECT.-l)
X023
X014
X017
030
J
018
029
B
019
028
X002
X022
X003
^XOOl
—
X016
0
11
o
0=p-
5
5
7
3
o
o
X
5
oo
o
X
6
o
o
X
(N75)
序号 料号 部品名称 数量 规格 备注
001 NB16807001AA BALL SPLINE 1 LTR25UUZZCL+173LPN
002 NB16807002AA SHAFT 1
003 NB16807003AA COLLAR 1
004 NB16807004AA SPRING 1
005 NB16807005AA SPRING 1
007 NB16807007AA PUSHER 1
008 NB16807008AA PIN 1
009 NB16807009AA HOLDER 1
011 NB16807011AA SHIFTER 1
012 NB16807012AA SHIFTER 1
013 NB16807013AA SHAFT 1
014 NB16807014AB CAM 1
015 NB16807015AA RUBBER 1
016 NB16807016AA PIN 1
018 NB16807018AA DETECTION PLATE 1
019 NB16807019AA PULLEY 1
020 NB16807020AA STOPPER 1
021 NB16807021AA STOPPER 1
022 NB16807022AA BRACKET 1
023 NB16807023AA COLLAR 1
024 NB168P0615AA PIN 2
025 NB168SX672AAA SENSOR 1 EE-SX672A
027 NB168P0306AA PIN 2
7 INSERTION HEAD SECT. (MAIN BODY SECT.-1)
027 NB168P0306AA PIN 2
028 NB168AR2000AA SPEED CONTROLLER 1 AR-2000
029 NB168SL1616AA SIGNAL LAMP 1 AD16-16E
030 NB16807154AA BRACKET 1
X001 NB168SH0308 SOKET HEAD CAP SCREW 6 M3-L8
X002 NB168FG0307 FLAT WASHER 4 3-7-H0.5
X003 NB168SH0320 SOKET HEAD CAP SCREW 2 M3-L20
X004 NB168SH0410 SOKET HEAD CAP SCREW 2 M4-L10
X005 NB168SH0412 SOKET HEAD CAP SCREW 2 M4-L12
X006 NB168SH0416 SOKET HEAD CAP SCREW 6 M4-L16
X007 NB168SH0525 SOKET HEAD CAP SCREW 2 M5-L25
X008 NB168SH0620 SOKET HEAD CAP SCREW 2 M6-L20
X009 NB168SH0625 SOKET HEAD CAP SCREW 2 M6-L25
X010 NB168SH0855 SOKET HEAD CAP SCREW 2 M8-L55
X011 NB168FG0412 FLAT WASHER 2 4-12-H1.5
X012 NB168HEX03 HEXAGON NUT 1 M3
X013 NB168SS0304 SUNK SCREW 1 M3-L4
X014 NB168FG0510 FLAT WASHER 4 5-10-H2
X015 NB168SH0616 SOKET HEAD CAP SCREW 4 M6-L16
X016 NB168SW03 SPRING WASHER 4 3-4-H1.0
X017 NB168SW06 SPRING WASHER 8 6-9.5-H1.6
X018 NB168SW05 SPRING WASHER 2 5-8-H1.3
X019 NB168SW04 SPRING WASHER 4 4-7-H1.0
X020 NB168SH0830 SOKET HEAD CAP SCREW 2 M8-L30
X021 NB168SW08 SPRING WASHER 4 8-12.5-H2
X022 NB168SH0312 SOKET HEAD CAP SCREW 2 M3-L12
X022 NB168SH0312 SOKET HEAD CAP SCREW 2 M3-L12
X023 NB168SH0506 SOKET HEAD CAP SCREW 2 M5-L06
N76
7
INSERTION
HEAD
SECT.
(INSERTION
POWER
SECT.-2)
0
032
X006
—028
X004
—
X008
029—
X004
047
030
035
046
厂
X013
—031
053
X001
-^—042
B
036
033
X006!
053
―
X018
055
054
A：
1056
T
0
049
044
X003
048
X020
A
X009
057
X019
X012
X014
X0(5
I
050
—
X018X005
X-
X018
X018
X012
039
—
i
I
043
040
X010
X016
六、
037
X°17
X002
X007
X011
(N77)
