Operating Instruct ions Air cushion transporting system for SIPLACE 10/99 edition 6 W ARNING RISK OF CRUSHING 1 : Do not p lace h ands or feet bet ween the loa d to be transpor ted and ba lanc ing board s or between the …
Air cushion transporting system for SIPLACE Operating Instructions
10/99 edition
5
1 Safety instructions
: Always follow the safety and accident prevention regulations applicable in your country when
carrying out any maintenance work.
: Follow the safety instructions in these operating instructions.
: Also note the special safety instructions in this chapter.
DANGER 1
: Do not exceed the load-bearing capacity of the floor.
1
DANGER 1
: Everything on the load to be transported that could represent a hazard if damaged (e.g. glass,
leakage of gas or liquid) must be firmly secured. Any containers filled with liquid must be
sealed.
1
WARNING RISK OF INJURY 1
: Any loose or moving parts on the load must be secured to prevent people being injured by parts
that fall off or swing out. Sharp or pointed edges and parts must be made safe.
1
Operating Instructions Air cushion transporting system for SIPLACE
10/99 edition
6
WARNING RISK OF CRUSHING 1
: Do not place hands or feet between the load to be transported and balancing boards or
between the load and the ground.
: If a slope is encountered, the load will slide to the lowest point of its own accord, generating
dynamic forces that could crush a person.
1
WARNING 1
: The operating pressure must never exceed the values shown in Tab. 6.1 - 1 and 6.3 - 1.
The input pressure must not exceed 8 bar.
1
Air cushion transporting system for SIPLACE Operating Instructions
10/99 edition
7
2Overview

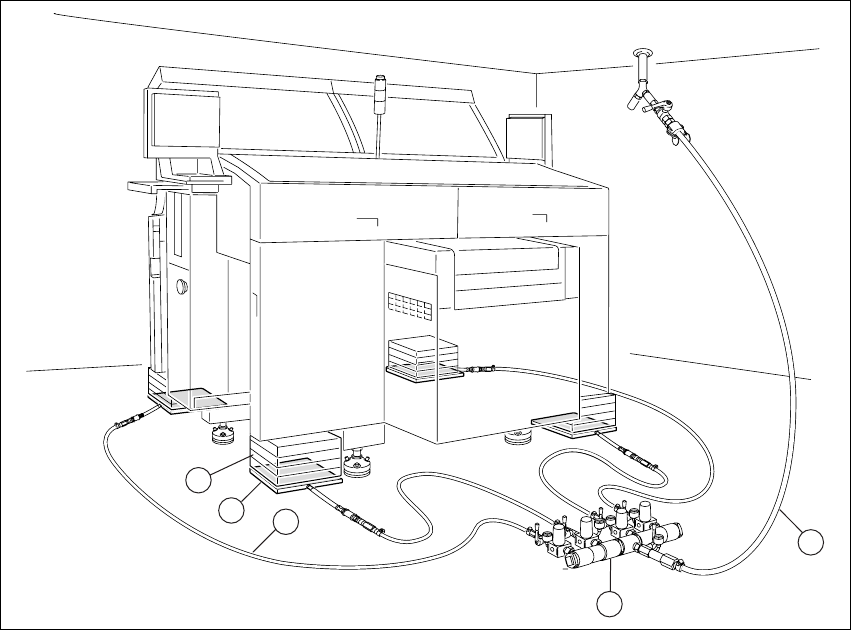

Fig. 2 - 1 Air cushion transporting system in position and ready for use.
2
The standard air cushion transporting system consists of:
(1) 4 air cushion modules
(2) Balancing boards
(3) 4 distributor hoses (2 x L = 4 m and 2 x L = 6 m)
(4) 1 control unit (with 4 pressure regulators, 5 manometers and 5 ball cocks)
(5) 10 m air hose with ball cock
(6) 1 Operating Instructions (English)
5
4
3
1
2
