Operating Instruct ions Air cushion transporting system for SIPLACE 5.3 Structure of the transport system 10/99 edition 24 5.3 S tructure of the transport system 1 2 4 3 5
Air cushion transporting system for SIPLACE Operating Instructions
10/99 edition 5.2 Preparing the load to be transported
23
: The center of gravity should be as central as possible between the modules.
: Make sure that the air cushions are not tilted.
Warning:
All loose or moving parts on the load to be transported must be secured to prevent people being
injured by parts that fall off or swing out. Sharp or pointed edges and parts must be made safe.
WARNING RISK OF INJURY
Everything on the load to be transported that could represent a hazard if damaged (e.g. glass,
leakage of gas or liquid) must be firmly secured. Any containers filled with liquid must be sealed.5
5

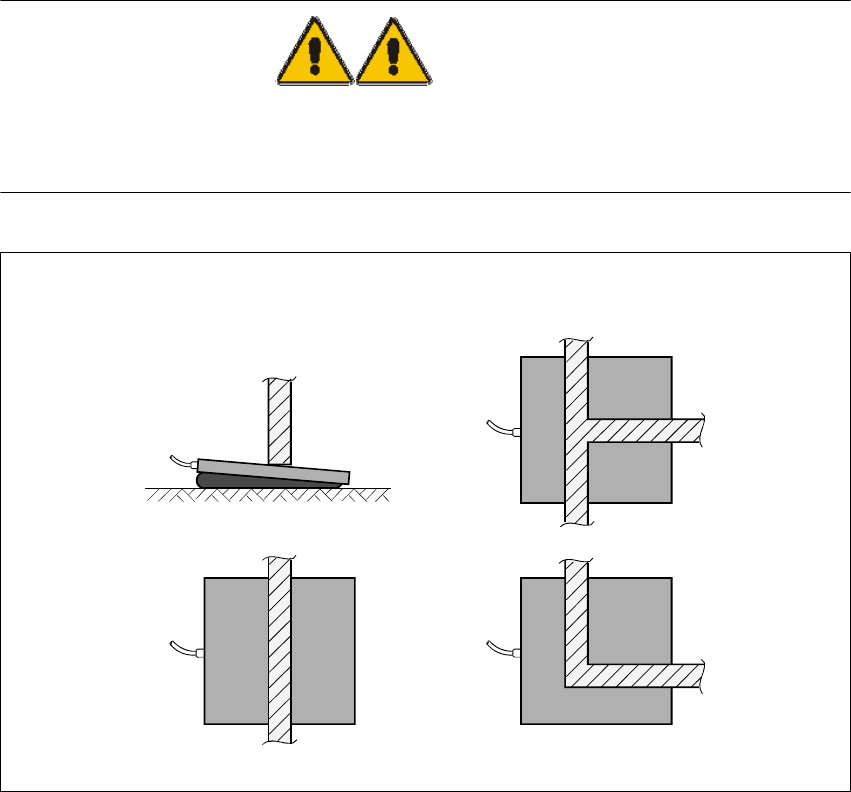

Fig. 5.2 - 2 Possible arrangements / positions
: The contact surface must not be too narrow, otherwise the air cushion could tip over.
: The contact surface of the load to be transported should ideally cover 2/3 of the air cushion
supporting plate.
RightWrong
Operating Instructions Air cushion transporting system for SIPLACE
5.3 Structure of the transport system 10/99 edition
24
5.3 Structure of the transport system
1
2
4
3
5
Air cushion transporting system for SIPLACE Operating Instructions
10/99 edition 5.3 Structure of the transport system
25
a Distribute the air cushions beneath the load to be transported (see above).
s Push the balancing boards between the air cushion supporting plate and the load.
d Connect the distributor hoses to the air cushions.
f Connect the distributor hoses to the control unit outlets.
g Connect the air hose to the control unit.
CAUTION 5
: Make sure that all the ball cocks are closed.
5
