Air cushion transporting system for SIPLACE Operating Instructions
10/99 edition 5.3 Structure of the transport system
29

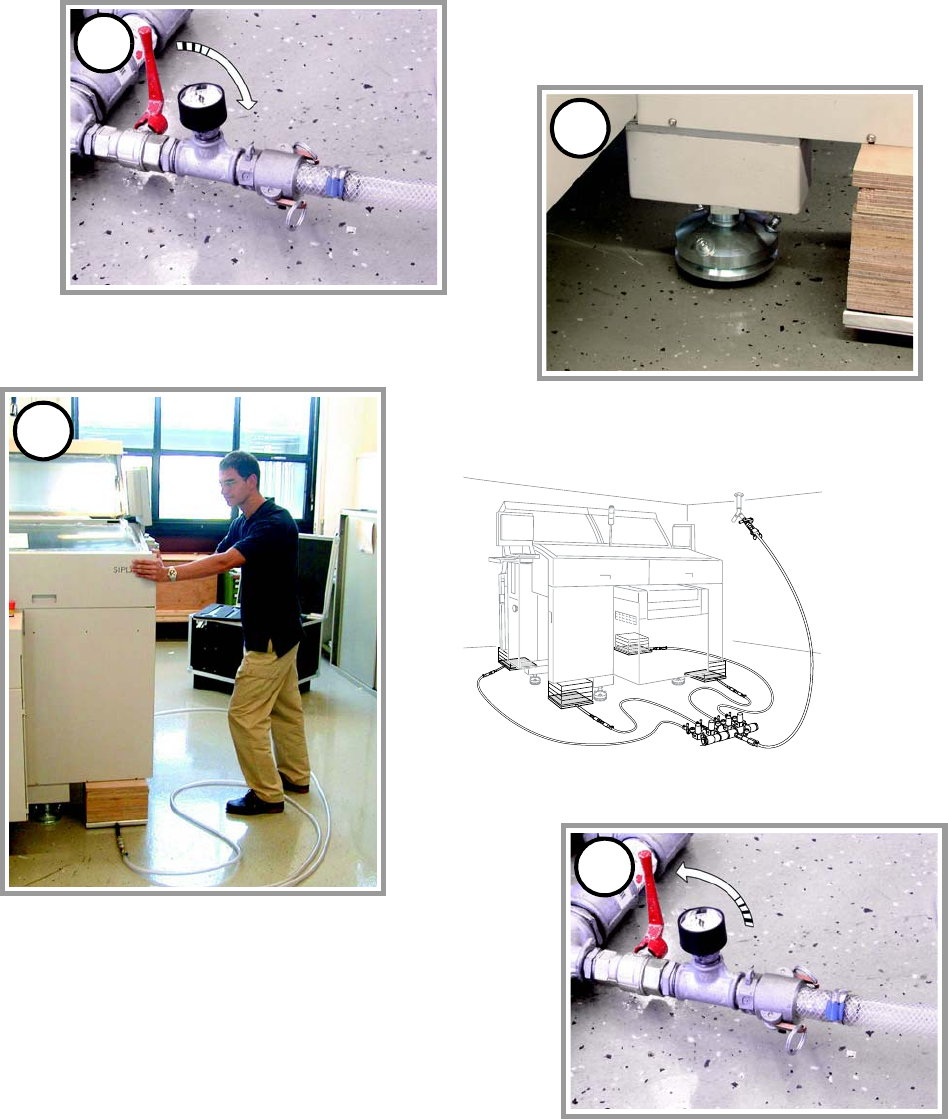

; Fully depressurize all the pressure regulators.
A Open the ball cocks to the air cushions.
S Turn the cap on the pressure regulators until the air cushion modules start to rise. Wait until
the load to be transported hovers freely and a slight flow of air emerges from beneath the
rubber bellows. All the air cushion modules must rise to the same height – whatever their load.
WARNING 5
: The operating pressure must never exceed the values shown in Tab. 6.1 - 1 and 6.3 - 1.
5
WARNING RISK OF CRUSHING 5
: Do not place hands or feet between the transported load and balancing boards or between the
load and the ground.
5
D Slowly close the main ball cock on the control unit.
