Operating Instruct ions Air cushion transporting system for SIPLACE 5.3 Structure of the transport system 10/99 edition 26 6 7 8 9
Air cushion transporting system for SIPLACE Operating Instructions
10/99 edition 5.3 Structure of the transport system
25
a Distribute the air cushions beneath the load to be transported (see above).
s Push the balancing boards between the air cushion supporting plate and the load.
d Connect the distributor hoses to the air cushions.
f Connect the distributor hoses to the control unit outlets.
g Connect the air hose to the control unit.
CAUTION 5
: Make sure that all the ball cocks are closed.
5
Operating Instructions Air cushion transporting system for SIPLACE
5.3 Structure of the transport system 10/99 edition
26
6
7
8
9
Air cushion transporting system for SIPLACE Operating Instructions
10/99 edition 5.3 Structure of the transport system
27
: Secure the load to prevent it slipping on a sloping surface.
WARNING RISK OF CRUSHING 5
: If a slope is encountered, the load will slide to the lowest point of its own accord, generating
dynamic forces that could crush a person.
5

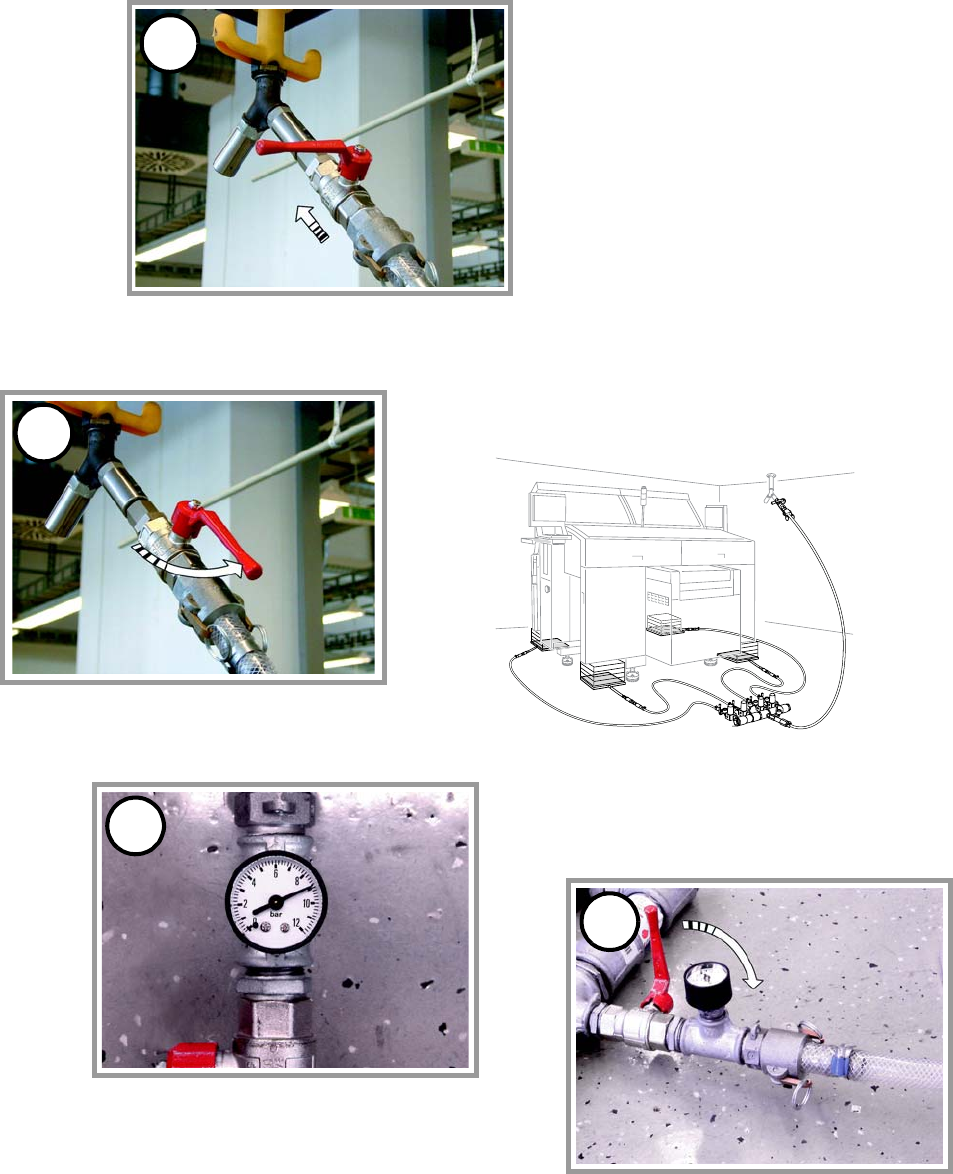

h Connect the air hose to the compressed air supply.
j Open the ball cock on the air hose.
k Wait until the initial pressure reaches 5 to 8 bar.
WARNING 5
: The supply pressure must never exceed 8 bar.
5
l Slowly open the main ball cock on the control unit.
