Air cushion transporting system for SIPLACE Operating Instructions
10/99 edition 6.3 Standard air cushion transporting system
39
6.3 Standard air cushion transporting system

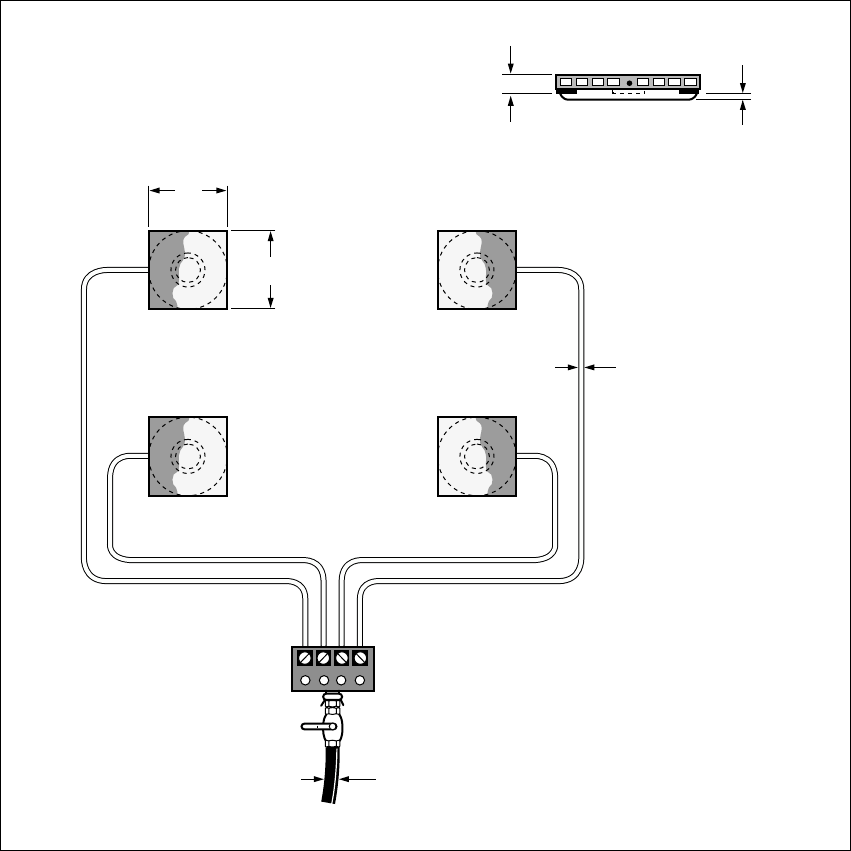

Fig. 6.3 - 1 Dimensions of a standard air cushion transporting system
E
D
A
A
B
C
Operating Instructions Air cushion transporting system for SIPLACE
6.4 Air cushion transporting system options 10/99 edition
40
6
Explanatory notes:
1) When the air cushion module is positioned beneath the load, it must not be subjected
to more than the maximum admissible working load of that module (see Tab. 6.1 - 1).
2) The air consumption is partly dependent on:
the actual load on the air cushion modules and
the condition of the floor
3) Pressure in the air cushion module under full load. Conversion: 100 kPa = 1 bar
4) Cast aluminum / profiled aluminum supporting plate
5) Threaded connector for the control unit (inches)
6.4 Air cushion transporting system options
– Air cushion transporting system with 6 air cushion modules
– Control unit with remote control
– Control unit with connection for lifting cushions
– Other hose lengths available upon request
System
type
Working
load
kg
1)
Air
consumption
l/min
2)
Module
type
Air
pressure
kPa
3)
A
mm
B
mm
C
mm
D
inc
h
E
inch
5)
Control unit
type
MLS412
7000 1120 ML 12 300 304 31/51
4)
15 1/2 1 MRB 4-15
MLS415
10000 2200 ML 15 300 380 31/51
4)
20 1/2 1 MRB 4-15
MLS421S
14000 3000 ML 21S 210 534 58 25 3/4 1 MRB 4-20
MLS427S
24000 3400 ML 27S 210 684 65 35 3/4 1 1/2 MRB 4-20
MLS436S
44000 4000 ML 36S 210 914 71 50 3/4 1 1/2 MRB 4-20
MLS421H
28000 5200 ML 21H 410 534 58 25 3/4 1 1/2 MRB 4-20
MLS427H
48000 6000 ML 27H 430 684 65 35 3/4 1 1/2 MRB 4-20
MLS436H
80000 7000 ML 36H 400 914 71 50 1 1 1/2 MRB 4-25
MLS442H
120000 7500 ML 42H 400 1070 71 65 1 2 MRB 4-25
MLS448H
160000 8000 ML 48H 450 1220 71 75 1 2 MRB 4-25
Tab. 6.3 - 1 Standard air cushion transporting system types
