Operating Instruct ions Air cushion transporting system for SIPLACE 5.3 Structure of the transport system 10/99 edition 28 1 0 1 1 1 3 1 2
Air cushion transporting system for SIPLACE Operating Instructions
10/99 edition 5.3 Structure of the transport system
27
: Secure the load to prevent it slipping on a sloping surface.
WARNING RISK OF CRUSHING 5
: If a slope is encountered, the load will slide to the lowest point of its own accord, generating
dynamic forces that could crush a person.
5

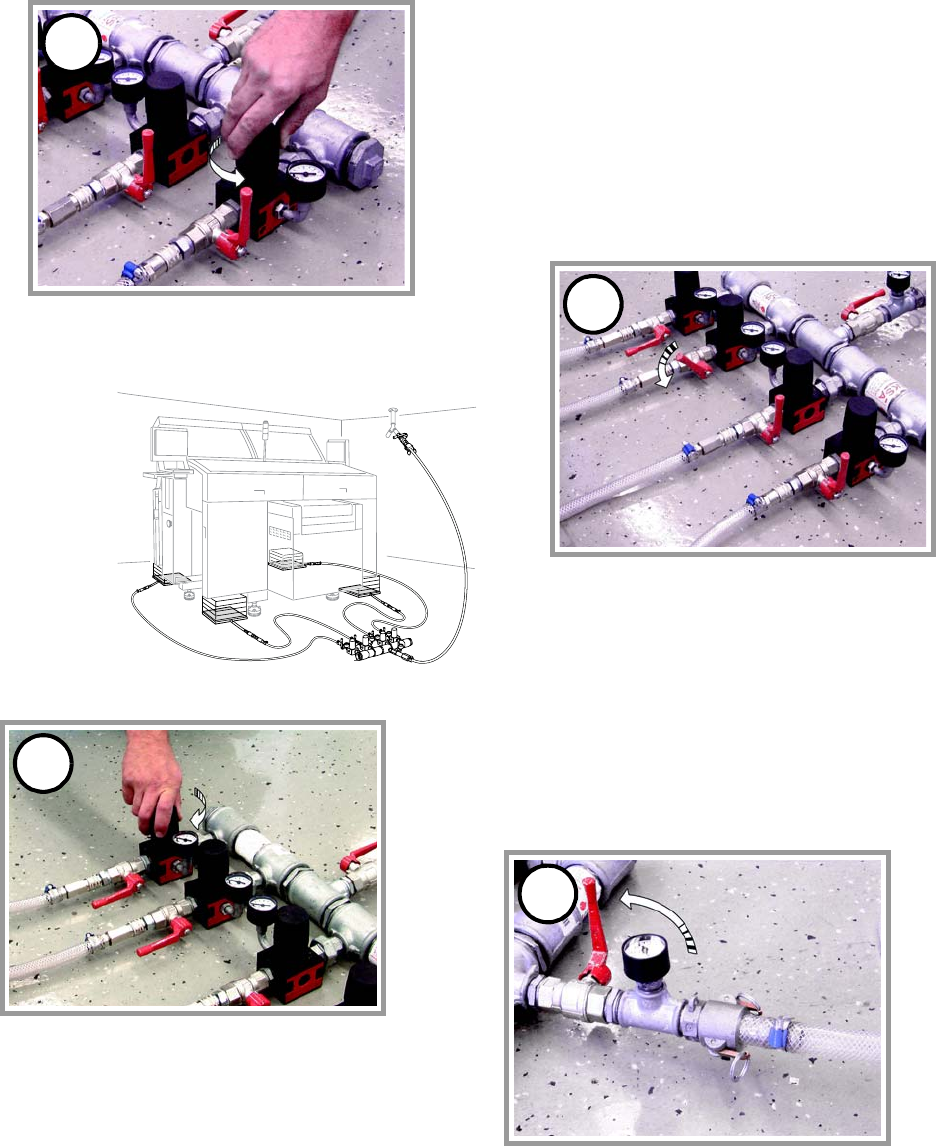

h Connect the air hose to the compressed air supply.
j Open the ball cock on the air hose.
k Wait until the initial pressure reaches 5 to 8 bar.
WARNING 5
: The supply pressure must never exceed 8 bar.
5
l Slowly open the main ball cock on the control unit.
Operating Instructions Air cushion transporting system for SIPLACE
5.3 Structure of the transport system 10/99 edition
28
1
0
1
1
1
3
1
2
Air cushion transporting system for SIPLACE Operating Instructions
10/99 edition 5.3 Structure of the transport system
29
; Fully depressurize all the pressure regulators.
A Open the ball cocks to the air cushions.
S Turn the cap on the pressure regulators until the air cushion modules start to rise. Wait until
the load to be transported hovers freely and a slight flow of air emerges from beneath the
rubber bellows. All the air cushion modules must rise to the same height – whatever their load.
WARNING 5
: The operating pressure must never exceed the values shown in Tab. 6.1 - 1 and 6.3 - 1.
5
WARNING RISK OF CRUSHING 5
: Do not place hands or feet between the transported load and balancing boards or between the
load and the ground.
5
D Slowly close the main ball cock on the control unit.
