Air cushion transporting system for SIPLACE Operating Instructions
10/99 edition 5.5 Disassembly
35
K Close the ball cock on the air hose.
: Disconnect the air hose from the compressed air supply.
L Open the main ball cock of the control unit and wait until the hoses and pressure regulators
have discharged.
: Depressurize all the pressure regulators.
: Disconnect all the hoses.
: Clean the air cushions (do not use aggressive cleaning agents).
: Carefully store all the parts.
21
20
Operating Instructions Air cushion transporting system for SIPLACE
5.6 Troubleshooting 10/99 edition
36
5.6 Troubleshooting
5.6.1 Loss of pressure from an air cushion
– Floor not airtight:
Cover the floor with metal sheets or adhesive tape
– Pressure too low when moving over the edge of a metal sheet:
Increase the pressure and/or stick down the edges with adhesive tape.
– Leak from the rubber bellows:
Replace the rubber bellows and send the old one for repair.
5.6.2 Loss of pressure from all the air cushions
: Check the pressure reading on the input manometer:
– If it is less than 5 bar:
Wait until sufficient pressure has built up or
connect a larger air line or
a larger compressed air unit.
– If it is more than 5 bar:
Adjust all the pressure regulators (= increase the pressure in the air cushion)
WARNING 5
: The operating pressure must never exceed the values shown in Tab. 6.1 - 1 and 6.3 - 1.
5
5.6.3 The load rocks:
: Close the main ball cock on the control unit. Then slowly open the main ball cock again until
the pressure has built up once more.
Air cushion transporting system for SIPLACE Operating Instructions
10/99 edition 6.1 Air cushion module
37
6 Technical data
6.1 Air cushion module

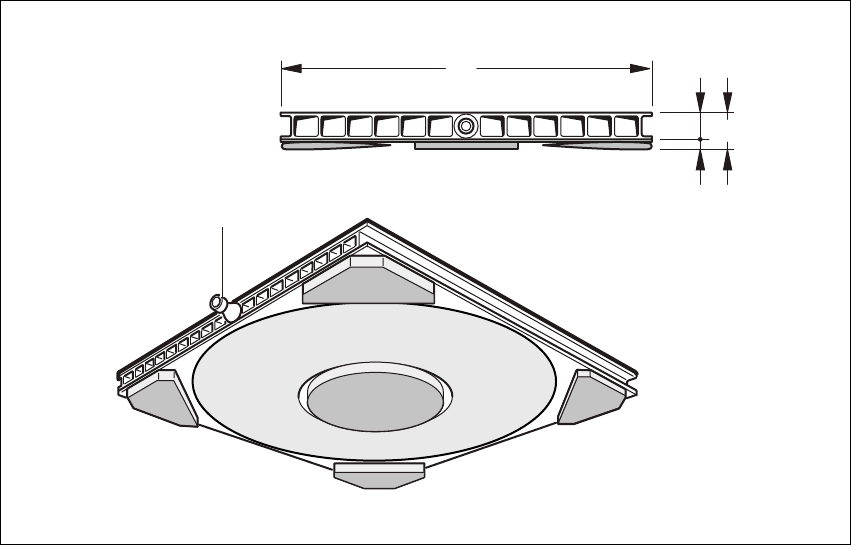

Fig. 6.1 - 1 Dimensions of an air cushion module
D
E
B
C
A
