Station Software 708.1 / Installation Manual Ausgabe 05/2015 Edition
27
Thereafter, the following dialog is displayed.

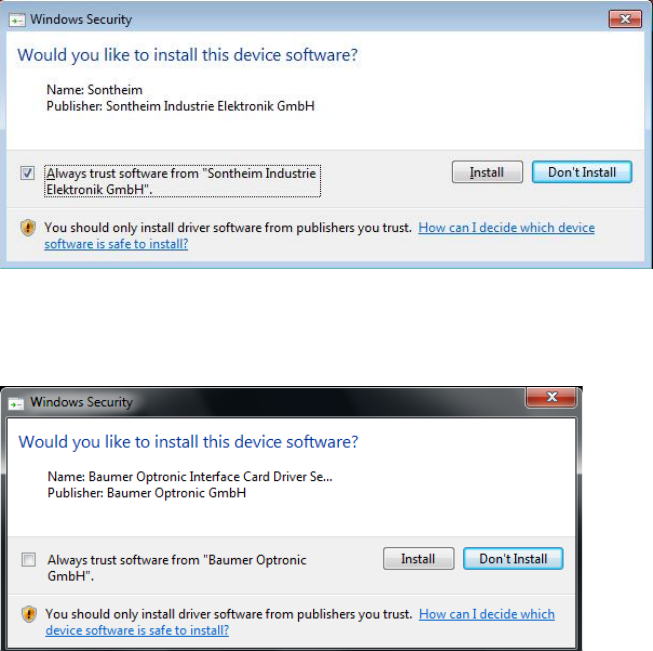

Figure 5-7: Installing driver software for Sontheim device, part 2
► Perform the same steps as in the previous dialog.
If a Baumer card is installed, the following dialog is displayed.
Figure 5-8: Installing driver software for Baumer card
► Activate the Always trust software from "Baumer Optronic GmbH" field.
► Click the Install, button to install the corresponding driver software.
5.4.2 Installing the System Files
The necessary system files will be installed if they are not already on the machine computer.
Installation of the station software continues with the welcome screen.
Station Software 708.1 / Installation Manual Ausgabe 05/2015 Edition
28
5.4.3 Welcome Screen

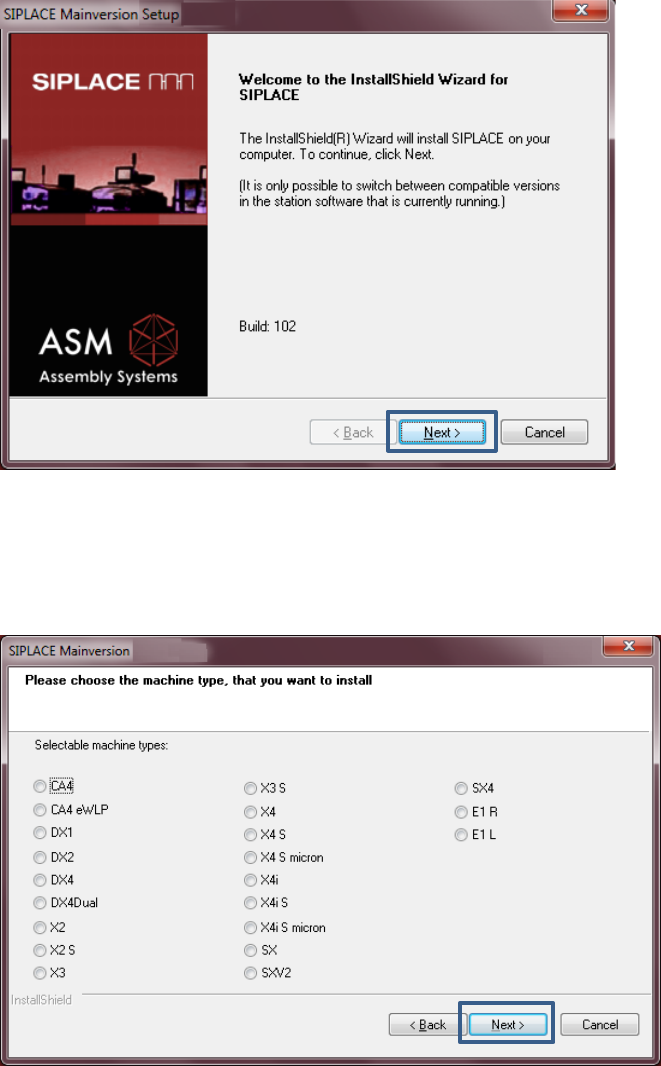

Figure 5-9: Welcome screen
► Click the Next button.
5.4.4 Selecting the Machine Type
Figure 5-10: Selecting the machine type
► Select the option for the machine type for which the software is to be configured.
► Click the Next button.
Station Software 708.1 / Installation Manual Ausgabe 05/2015 Edition
29
5.4.5 Entering the Machine Identification Number (MID) and serial number
Figure 5-11: Entering the Machine Identification Number (MID) and serial number
► Enter the 8-digit machine identification number in the text box beside MID-Number.
► Enter the serial number in the text box beside SerialNumber.
NOTICE
You will find the MID and the serial number on an adhesive label on the side of the
protective covers directly below the label for the number of the relevant location. The
number following the dash after the MID specifies the location and is not entered here
(e.g. 00000001-2 stands for location 2).
After upgrading (from 60x and 70x) the correct MID and serial number are already
inserted.
► Click the Next button.
NOTICE
The following screen only appears if applications are open which use files which must be
updated during installation of SIPLACE.
