Station Software 708.1 / Installation Manual Ausgabe 05/2015 Edition
43
7.3 SX1/SX2 (V2) Placement Machine
For the SX1/SX2 (V2) placement machine the following window is displayed, in which the Manual
selection required note informs, that the table configuration has to be selected manually, as this is
not detected automatically.

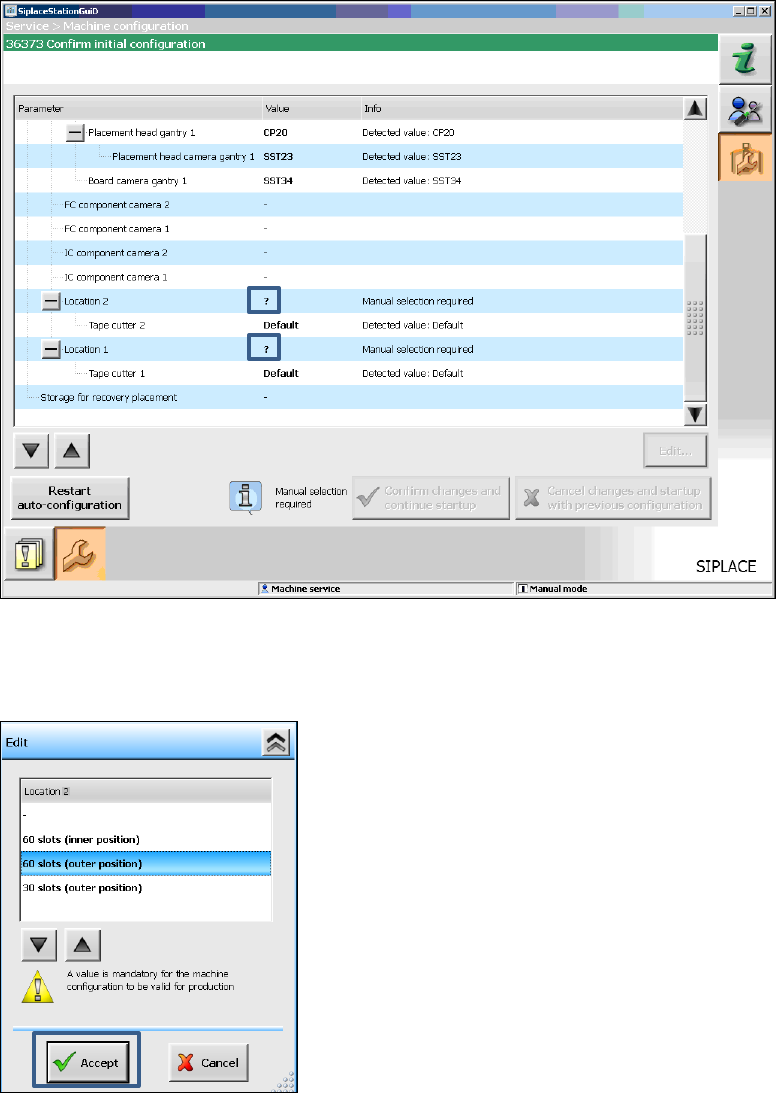

Figure 7-7: Selecting table configuration
► Click the ? question mark next to Location 2.
The selectable table configurations are displayed.
Figure 7-8: Possible table configurations
Station Software 708.1 / Installation Manual Ausgabe 05/2015 Edition
44
► Select a table configuration with or .
► Click the Accept button.
► Repeat the steps for Location 1.
Settings for manual tray Carrier SX
If the manual tray Carrier SX is used, the insert frame with the fold-away tape guide channel is
required. This has to be set manually. In this case, the following selectable table configurations are
displayed:
Figure 7-9: Settings for manual tray Carrier SX
► Select the 60 slots (outer position, fold-away tape duct) table configuration.
► Click the Accept button.
Thus, the 27x27 reject bin and the left reject channel on the location are excluded from the
configuration.
CAUTION
If this setting is not made, the component may be rejected over the tray and the Z axis
may dash hard against the tray.
► Repeat the steps for Location 1.
Station Software 708.1 / Installation Manual Ausgabe 05/2015 Edition
45
When you have selected all table configurations the following window is displayed, in which you
confirm the Auto-configuration.
Figure 7-10: Confirming Auto-configuration for SX1/SX2
► Click the Confirm changes and continue startup button to confirm the Auto-configuration.
► If the Coplan computer has been installed, you will additionally have to confirm or reject the 3-D
Coplan sensor.
7.4 SX+ Placement Machine
If the SX+ placement machine is to be used without gantries, this has to be configured in the Auto-
configuration after the machine has been booted.
► For this, select Ignore gantries at the processing area in the machine configuration dialog.
