TRANSPORTATION - MAJOR RELOCATION MACHINE ASSEMBLY 43.72 Technical Reference Manual Chapter Issue 2, Ju l 16 trapped between the arm and bracket. 6. Secure the monitor arm to the bracket with three screws from below . 7.…
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
Chapter Issue 2, Jul 16 Technical Reference Manual 43.71
3. Feed the tricolour beacon connection 14PL07 down through the hole in the
cover with any surplus cable.
4. Connect the tricolour beacon connection 14PL07 to 14SK07.
5. Fit the beacon bracket to the machine cover using the four beacon bracket
securing screws ensuring that any cables are not trapped between the
beacon bracket and the cover.
6. Secure the Rear Upper Panel into position.
Man Machine Interface (MMI)
Style 1 Covers The monitor may have been removed for transportation, use the following
procedure to fit the monitor:
1. Remove the front panel.
2. Locate the following cables stowed within the machine:
• Monitor Power Cable
•VGA Cable
• Touchscreen Cable (USB)
• USB Cable - Rear Monitor USB Connector
3. Feed the cables out of the machine and downwards through the hole of the
monitor arm support bracket
4. From the monitor arm, feed the keyboard/IR Receiver cable upwards
through the hole of the monitor arm support bracket and into the machine.
5. Fit the monitor arm to the monitor bracket ensuring that no cables are
Tricolour Beacon
Beacon Securing Nut
Beacon Bracket Securing
Screws (in 4 positions)
Beacon Bracket
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
43.72 Technical Reference Manual Chapter Issue 2, Jul 16

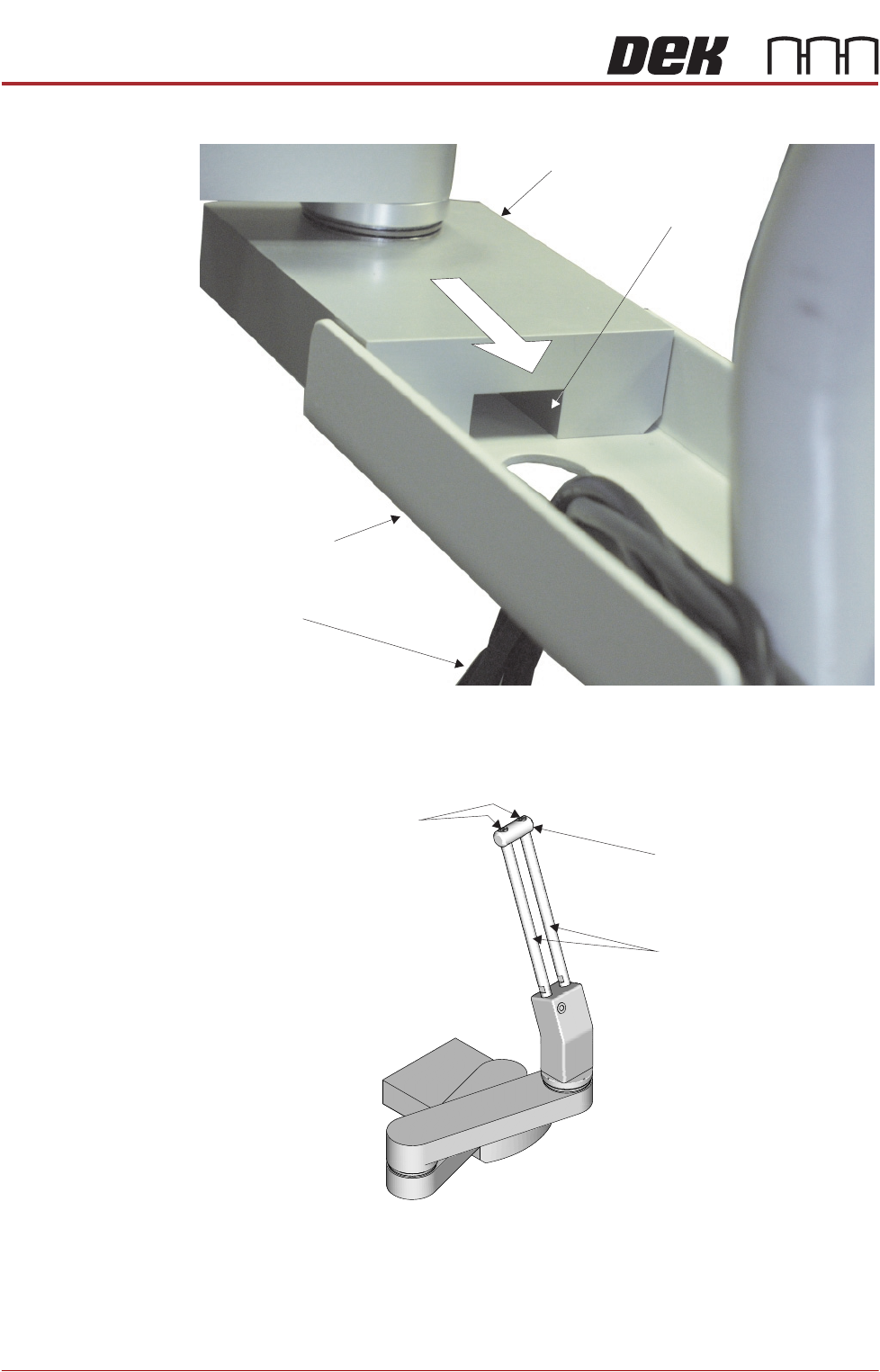

trapped between the arm and bracket.
6. Secure the monitor arm to the bracket with three screws from below.
7. Using a 2.5mm Allen key, remove the end block from the top of the
adjustment bars.
8. Slide the monitor bracket on to the adjustment bars and tighten the locking
thumbscrew.
9. Refit the end block.
Monitor Support Arm
MMI Cable Channel
MMI Cables
Monitor Support
Arm Bracket
Securing Screws
End Block
Adjustment Bars
TRANSPORTATION - MAJOR RELOCATION
MACHINE ASSEMBLY
Chapter Issue 2, Jul 16 Technical Reference Manual 43.73

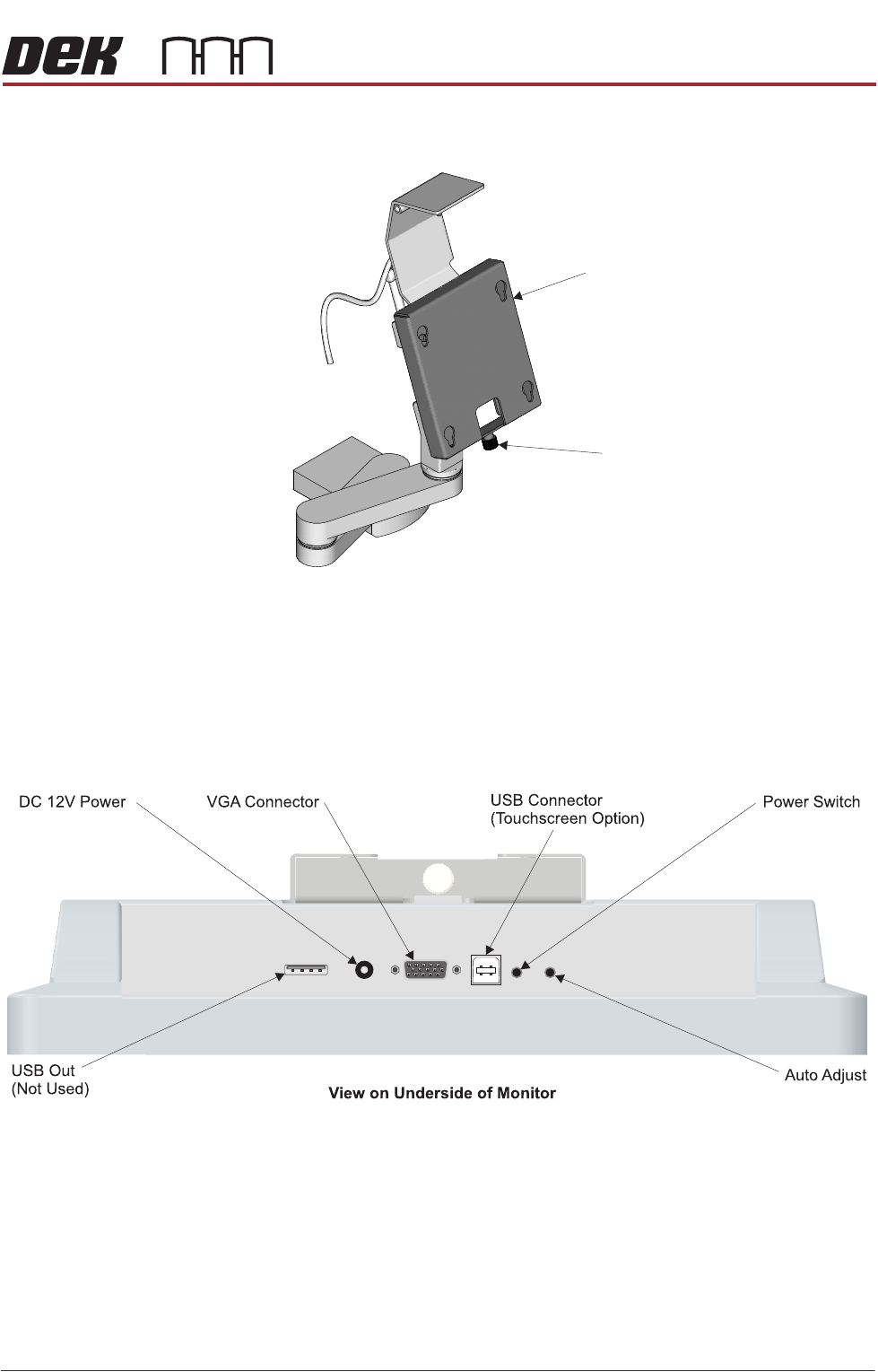

10. Fit the monitor to the monitor fixing bracket ensuring that all four studs are
located in the keyslots.
11. Secure the monitor using the monitor securing screw.
12. Connect the following cables to the monitor:
• Monitor Power Cable (DC)
•VGA Cable
• Touchscreen Cable (USB)
13. Connect the Rear Monitor USB Connector cable to the remaining USB cable
coming from the machine.
Monitor Fixing Bracket
Monitor Securing Screw
